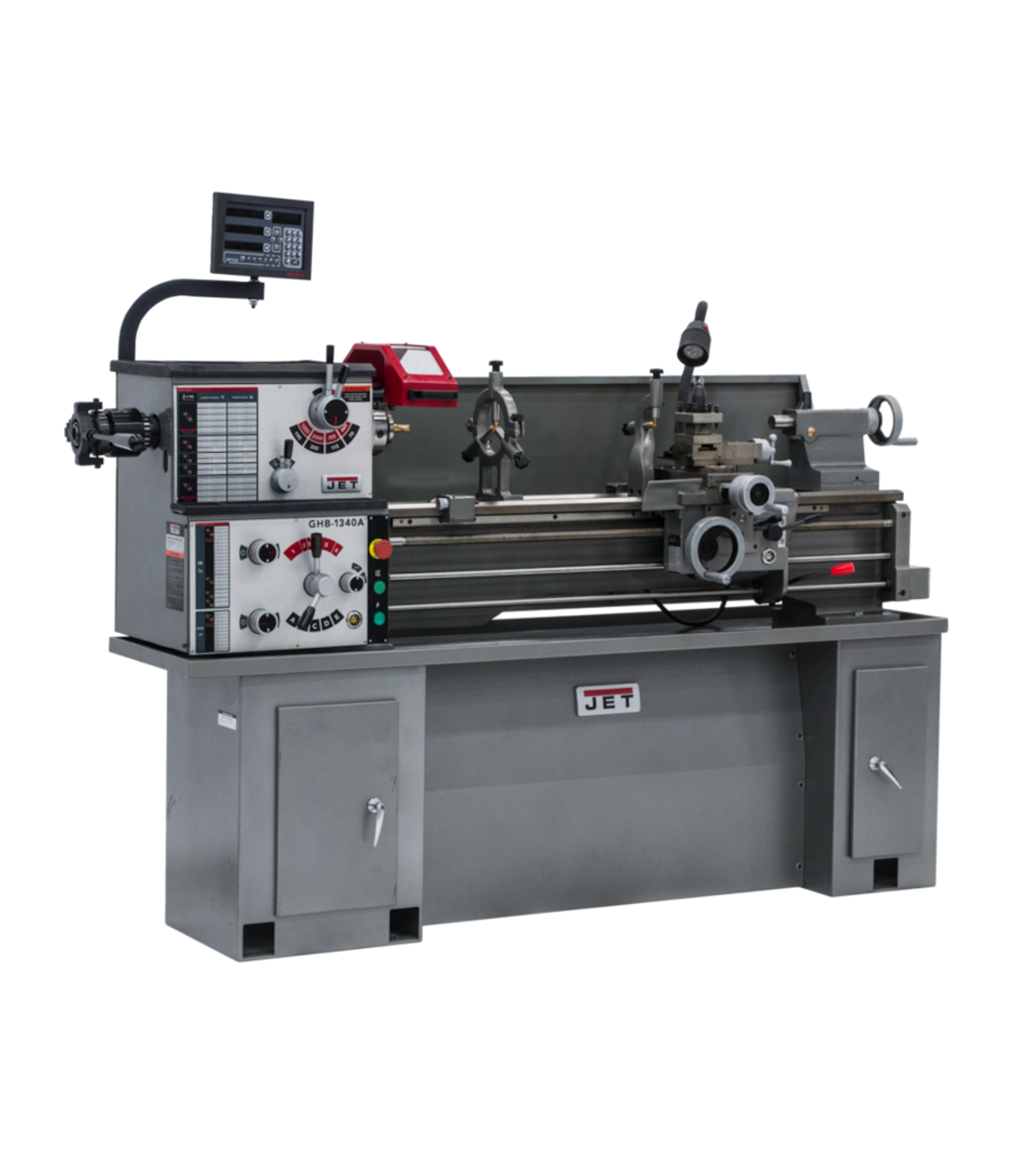

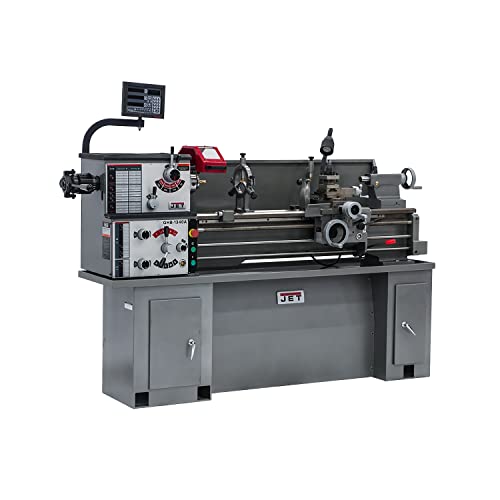

JET GHB-1340A, 13" x 40" Geared Head Bench Lathe, Taper Attachment, Collet Closer, Newall DP700 DRO, 2HP, 1Ph 230V (321104)

JET GHB-1340A, 13" x 40" Geared Head Bench Lathe, Taper Attachment, Collet Closer, Newall DP700 DRO, 2HP, 1Ph 230V (321104)zoom

Attributes

Key Value
Accessory 1Taper Attachment </td
Accessory 2Collet Closer </td
Carriage Travel (In.)35 </td
Compound Slide Travel (.2-11/16 </td
ConditionNew
Country of Origin (subj.China
Cross Slide Travel (In.)6-5/16 </td
Digital ReadoutNewall DP700 </td
Distance Between Center.43 </td
DriveGeared Head </td
Follow Rest Capacity (I.2-3/8 </td
Length of Gap (In.)8 </td
ManufacturerJet
Max Tool Size (In.)5/8 x 5/8 </td
Motor (HP)2 HP, 230V, 1Ph </td
Motor Phase1 Ph
Number of Inch Threads38 </td
Number of Longitudinal .40 </td
Number of Metric Threads23 </td
Number of Spindle Speeds8 </td
Overall Dimensions (L x.79 x 28-1/2 x 30 </td
Prewired (V.)230 </td
Range of Cross Feeds (I..0006 - .0130 </td
Range of Inch Threads (.3-1/2 - 80 </td
Range of Longitudinal F..0018 - .0374 </td
Range of Metric Threads.45 - 10 </td
Range of Spindle Speeds.70 - 2,000 </td
Size13 x 40 </td
SKU321104
Spindle Bore (In.)1-3/8 </td
Spindle MountD1-4 </td
Spindle Taper with Slee.MT-5 (MT-3) </td
Stationary typeBench - Geared Head
Steady Rest Capacity (I.2-3/4 </td
Style (Type)Bench - Geared Head .
Swing Over Bed (In.)13 </td
Swing Over Cross Slide .7-25/32 </td
Swing Through Gap (In.)18-3/4 </td
Tailstock Spindle Trave.3-3/4 </td
Taper in Tailstock Spin.MT-3 </td
Warranty2-Year
Weight (Lbs.)1,154 </td
Width of Bed (In.)7-3/8 </td

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
internationaltool.comJET-32110415599.01In StockJet15599.0 @ 1
thumbzoomGlobal IndustrialWBB023074817499.01In Stock24JET17499.0 @ 1
thumbzoomJB ToolsJB-DS-WLT-32110417499.01In StockJet17499.0 @ 1
elitemetaltools.com1042617499.01In StockJET17499.0 @ 1
thumbzoomtoolfetch.com32110417499.01In StockJET17499.0 @ 1
thumbzoomAceToolJET-32110417499.01In StockJet1154.017499.0 @ 1
thumbzoomburnstools.com32110417499.01In StockJet17499.0 @ 1
ToolUp.comJET 32110417499.01In StockJet17499.0 @ 1
thumbzoomtoolsplus.comJET32110417499.01In StockJET17499.0 @ 1
imsbolt.com32110417499.01In StockJET17499.0 @ 1
thumbzoomZoroG30803119222939.571In Stock30Jet22939.57 @ 1
