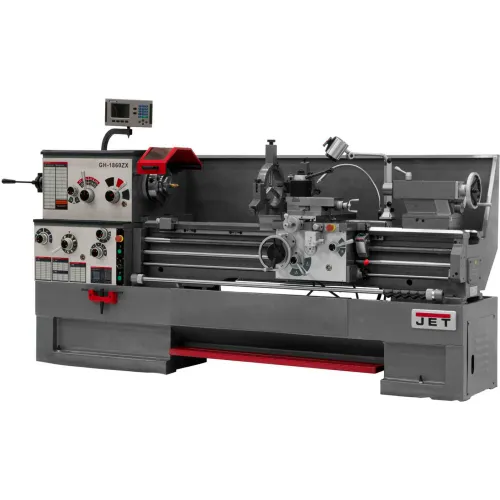

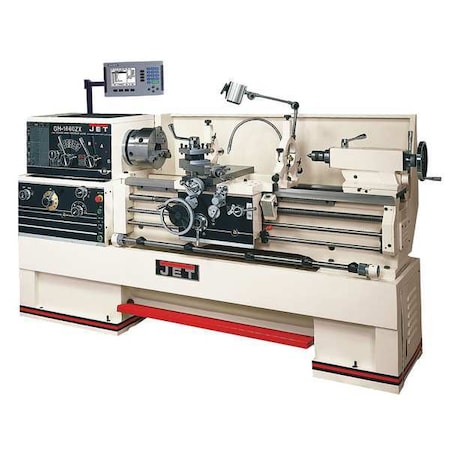

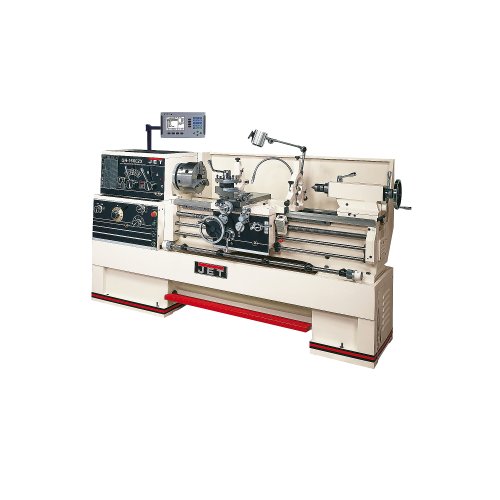

JET GH-1660ZX Lathe with ACU-RITE 300S DRO

JET GH-1660ZX Lathe with ACU-RITE 300S DROzoom

Attributes

Key Value
Bed Width8 in
Bed Width (In.)13-3/8
Carriage Travel (In.)55, 55-9/16 </td
Compound Slide Travel (.5-1/8 </td
ConditionNew
Cross Slide Travel (In.)9 </td
Cross Travel (In.)9
Digital ReadoutACU-RITE 300S </td
Distance Between Center.60 </td
DriveGeared Head </td
Features3-1/8 in Bore Spindle i.
Follow Rest Capacity (I.1/2 - 3-1/2 </td
Frequency60 Hz
Gap Length12 1/4 in
Gap Length (In.)12-1/4
Horsepower7 1/2 hp
ItemLathe
Length of Gap (In.)12 </td
Longitudinal Feed Rates12
ManufacturerJet
Max Tool Size (In.)1 x 1 </td
Motor (HP)7-1/2 HP, 230/460, 3 Ph.
Motor HP7-1/2
Number of Inch Threads61 </td
Number of Longitudinal .122 </td
Number of Metric Threads24 </td
Number of Spindle Speeds12 </td, 12
Overall Dimensions (L x.115 x 44 x 66 </td
Overall Height116 1/2 in
Overall Length116 1/2 in
Overall Width40 in
PhaseThree
Prewired (V.)230 </td
Range of Cross Feeds (I..0006 - .0365 </td
Range of Inch Threads (.1-5/8 - 72 </td
Range of Longitudinal F..0015 - .0913 </td
Range of Metric Threads.05 - 20 </td
Range of Spindle Speeds.25 - 1,800 </td
Size16 x 60 </td
SKU321388
Spindle Bore (In.)3-1/8, 3-1/8 </td
Spindle MountD1-8 </td
Spindle Speed (RPM)25 to 1800
Spindle Taper with Slee.MT-7 (MT-5) </td
Steady Rest Capacity (I.3/8 - 7 </td
Style (Type)Engine - Large Spindle .
Swing In Gap (In.)25-7/8
Swing Over Bed (In.)16 </td, 16
Swing Over Cross Slide .10 </td
Swing Through Gap (In.)25-1/2 </td
Tailstock Spindle Trave.5 </td
Tailstock TaperMT3
Tailstock Travel (In.)5
Taper in Tailstock Spin.MT-4 </td
Voltage230V AC
Weight (Lbs.)5,795 </td
Width of Bed (In.)13-3/8 </td

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger42W80228277.01In Stock15JET28277.0 @ 1
internationaltool.comJET-32138830769.01In StockJet30769.0 @ 1
thumbzoomGlobal IndustrialWBB023081133579.01In Stock24JET33579.0 @ 1
thumbzoomJB ToolsJB-DS-WLT-32138833579.01In StockJet33579.0 @ 1
ToolUp.comJET 32138833579.01In StockJet33579.0 @ 1
thumbzoomAceToolJET-32138833579.01In StockJet5795.033579.0 @ 1
thumbzoomburnstools.com32138833579.01In StockJet33579.0 @ 1
elitemetaltools.com1026033579.01In StockJET5925.033579.0 @ 1
thumbzoomtoolsplus.comJET32138833579.01In StockJET33579.0 @ 1
thumbzoomimsbolt.com32138833579.01In StockJET33579.0 @ 1
thumbzoomZoroG987948434129.01In StockJet5825.034129.0 @ 1
