Jet 321491

B00MMNZDX2

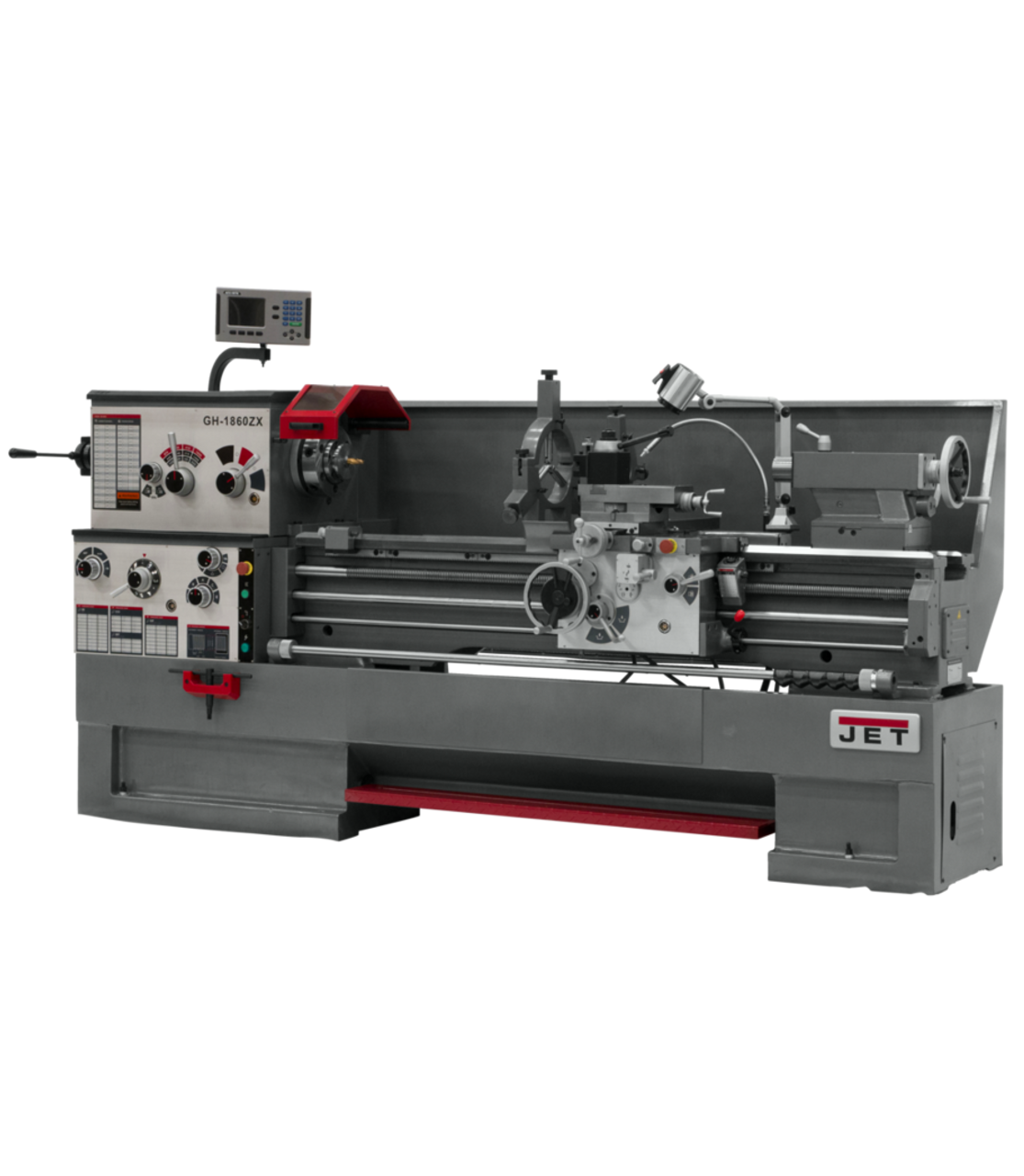

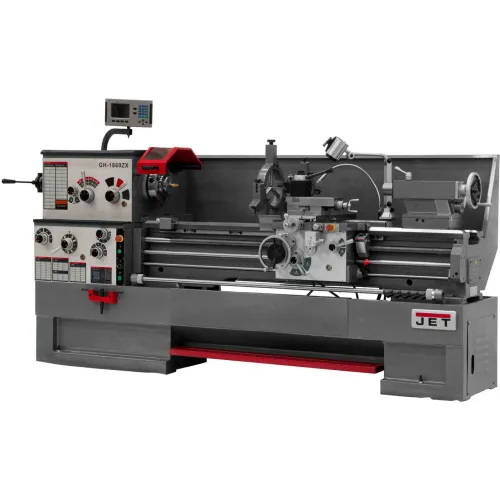

Jet GH-1860ZX With ACU-RITE 200S DRO With Collet Closer

Jet GH-1860ZX With ACU-RITE 200S DRO With Collet Closerzoom

Attributes

Key Value
Accessory 2Collet Closer </td
Carriage Travel (In.)55-9/16 </td
Compound Slide Travel (.5-1/8 </td
ConditionNew
Cross Slide Travel (In.)9 </td
Digital ReadoutACU-RITE 200S </td
Distance Between Center.60 </td
DriveGeared Head </td
Follow Rest Capacity (I.1/2 - 3-1/2 </td
Horsepower7.5 HP
Length of Gap (In.)12 </td
ManufacturerJet
Max Tool Size (In.)1 x 1 </td
Motor (HP)7-1/2 HP, 230/460, 3 Ph.
Motor Phase3 Ph
Number of Inch Threads61 </td
Number of Longitudinal .122 </td
Number of Metric Threads24 </td
Number of Spindle Speeds12 </td
Overall Dimensions (L x.115 x 44 x 66 </td
Prewired (V.)230 </td
Range of Cross Feeds (I..0006 - .0365 </td
Range of Inch Threads (.1-5/8 - 72 </td
Range of Longitudinal F..0015 - .0913 </td
Range of Metric Threads.05 - 20 </td
Range of Spindle Speeds.25 - 1,800 </td
Size18 x 60 </td
SKU321491
Spindle Bore (In.)3-1/8 </td
Spindle MountD1-8 </td
Spindle Taper with Slee.MT-7 (MT-5) </td
Stationary typeEngine - Large Spindle .
Steady Rest Capacity (I.3/8 - 7-3/4 </td
Style (Type)Engine - Large Spindle .
Swing Over Bed (In.)18 </td
Swing Over Cross Slide .11 </td
Swing Through Gap (In.)27-1/2 </td
Tailstock Spindle Trave.5 </td
Taper in Tailstock Spin.MT-5 </td
Warranty2 Year
Weight (Lbs.)6,245 </td
Width of Bed (In.)13-1/8 </td

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
internationaltool.comJET-32149134989.01In StockJet34989.0 @ 1
thumbzoomGlobal IndustrialWBB023081038189.01In Stock24JET38189.0 @ 1
thumbzoomJB ToolsJB-DS-WLT-32149138189.01In StockJet38189.0 @ 1
thumbzoomtoolsplus.comJET32149138189.01In StockJET38189.0 @ 1
elitemetaltools.com231538189.01In StockJET38189.0 @ 1
ToolUp.comJET 32149138189.01In StockJet38189.0 @ 1
thumbzoomAceToolJET-32149138189.01In StockJet6245.038189.0 @ 1
thumbzoomburnstools.com32149138189.01In StockJet38189.0 @ 1
thumbzoomTylerToolJETN32149138189.01In StockJET38189.0 @ 1
imsbolt.com32149138189.01In StockJET38189.0 @ 1
