- mpnA70BA-18C
- brandname: Johnson Controls
- manufacturername: Johnson Controls

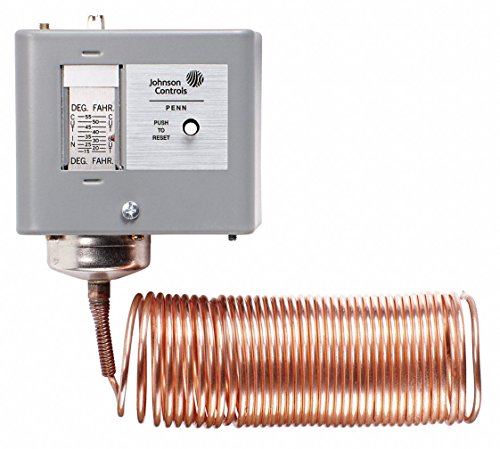

Johnson Controls Line Volt Mechanical Tstat for Cooling, 120 to 600VAC
- Brand: CAI - JOHNSON CONTROLS
- PartNumber: A70BA-18C
- PackageQuantity: 1
- Manufacturer: CAI - JOHNSON CONTROLS
- Label: CAI - JOHNSON CONTROLS
Attributes
| Key | Value |
|---|
| Application | Heat and Cool |
| Brand | Johnson Controls |
| Bulb Diameter | 1/4 in |
| Bulb Length | 20 ft |
| Capillary Length | 20 ft, 240 in |
| Capillary Length/Bulb D. | 20 ft Capillary, 20 ft . |
| Color | Gray |
| Contact Rating | 120V AC, 240V AC |
| Contact Rating Resistiv. | 22 A |
| Contact Rating Resistiv. | 3 A, 8 A, 3A Aux, 8A Ma. |
| Control Range | 15 Degrees to 55 Degree. |
| Control Type | Screwdriver |
| Country of Origin (subj. | Mexico |
| Current Stock | 12 |
| Depth | 2 3/32 in |
| Differential | 5 Degrees F |
| Differential Type | Fixed |
| Enclosure Color | Gray |
| Enclosure Colour | Gray |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Enclosure Type | Galvanized/Steel |
| Full Load Amps @ 120V AC | 6 A, 16 A |
| Full Load Amps @ 120VAC | 6A Aux, 16A Main |
| Full Load Amps @ 240V AC | 3 A, 8 A |
| Full Load Amps @ 240VAC | 3A Aux, 8A Main |
| Height | 3 1/4 in |
| Includes | Remote Sensing Bulb |
| Inductive Amps @ 120V | 6A Aux, 16A Main, 6 A, . |
| Inductive Amps @ 208V | 3.4 A, 9.2 A, 3.4A Aux,. |
| Inductive Amps @ 240V | 3 A, 8 A, 3A Aux, 8A Ma. |
| International Shipping | No |
| Item | Line Volt Mechanical Ts. |
| Locked Rotor Amps @ 120V | 36 A, 96 A, 36A Aux, 96. |
| Locked Rotor Amps @ 240V | 18 A, 48 A, 18A Aux, 48. |
| Maximum Control Tempera. | 55 Degrees F |
| Maximum Operating Tempe. | 170 Degrees F |
| Minimum Control Tempera. | 15 Degrees F |
| Minimum Operating Tempe. | 0 Degrees F |
| Mounting Type | Flat Surface, Surface M. |
| Mpn | A70BA-18C |
| Number of Cooling Stages | 1 |
| Number of Heating Stages | 1 |
| Number of Poles | 1 |
| Number of Relay Inputs | 2 |
| Number of Relay Outputs | 2 |
| Number of Switches | 1 |
| Overall Depth | 2 in |
| Overall Height | 3 1/4 in |
| Overall Width | 4 in |
| Pilot Duty Contacts (VA) | 125 VA |
| Pilot Duty Rating | 125 VA |
| Remote Sensing Bulb Inc. | Yes |
| Remote Sensing Capabili. | Yes |
| Resistive Amps @ 208V AC | 3.4 A, 9.2 A |
| Resistive Amps @ 208VAC | 3.4A Aux, 9.2A Main |
| Sensor Location | Remote |
| Sensor Type | Hydraulic Capillary Bul. |
| SKU | ZO-G6199462 |
| Standards | CSA LR948/1222 01, UL S. |
| Switch Action | Close on Rise |
| Switch Type | SPST |
| Switch Type/Action | SPST, Close on Rise |
| Temp. Sensitivity | +/-2 Degrees F |
| Temperature Control Ran. | 15 Degrees to 55 Degre. |
| Temperature Differential | 5 Degrees F |
| Temperature Scale | Fahrenheit |
| Temperature Sensitivity | +/-2 Degrees F |
| Thermostat Control Range | 15 Degrees to 55 Degre. |
| Thermostat Heating/Cool. | Cooling |
| Thermostat Item | Line Voltage Mechanical. |
| Thermostat Programmable | No |
| Thermostat Switch Type | SPST |
| Thermostat Type | Two-Circuit Indoor Sing. |
| Thermostat Voltage | 120 to 600V AC |
| UPC | 078502809148 |
| Voltage | 120 to 600VAC, 120 to 6. |
| Width | 4 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Radwell | A70BA-18C | 111.5 | 1 | 3 | | JOHNSON CONTROLS | 2.06 | 111.5 @ 1 |
 | Zoro | G6199462 | 165.38 | 1 | 8 | | Johnson Controls | 2.25 | 165.38 @ 1 |
| alliedcontrols.com | A70BA-18C | 181.82 | 1 | In Stock | | Johnson Controls | | 181.82 @ 1 |
| Grainger | 38Y107 | 183.0 | 1 | 9 | 9 | JOHNSON CONTROLS | | 183.0 @ 1 |
 | blackhawksupply.com | A70BA-18C | 183.71 | 1 | In Stock | | Johnson Controls | | 183.71 @ 1 |
 | cappusa.com | 2981239 | 189.58 | 1 | In Stock | | Johnson Controls | | 189.58 @ 1 |
 | sustainablesupply.com | C2088297 | 193.67 | 1 | In Stock | | Johnson Controls | 2.0 | 193.67 @ 1 |
 | energycontrol.com | A70BA-18C | 198.65 | 1 | In Stock | | JOHNSON CONTROLS | | 198.65 @ 1 |
 | Voomi Supply | A70BA-18C | 200.1 | 1 | In Stock | | Johnson Controls | | 200.1 @ 1 |
 | simsupply.com | ZO-G6199462 | 211.64 | 1 | 12 | | Johnson Controls | | 211.64 @ 1 |
| Kele | A70BA-18C | 246.65 | 1 | In Stock | | Johnson Controls | | 246.65 @ 1 |
 | National Supply Network | B475989 | 271.06 | 1 | In Stock | | Johnson Controls Inc | | 271.06 @ 1 |
| grainger.ca | JHCA70BA18C | 325.60382966 | 1 | In Stock | | JOHNSON CONTROLS | 2.25 | 325.60382966 @ 1 |
| uri.com | A70BA18C | 445.9 | 1 | In Stock | | Johnson Controls | 2.4 | 445.9 @ 1 |
