Lovejoy 68514477499

mpn68514477499
brandname: LOVEJOY
manufacturername: LOVEJOY

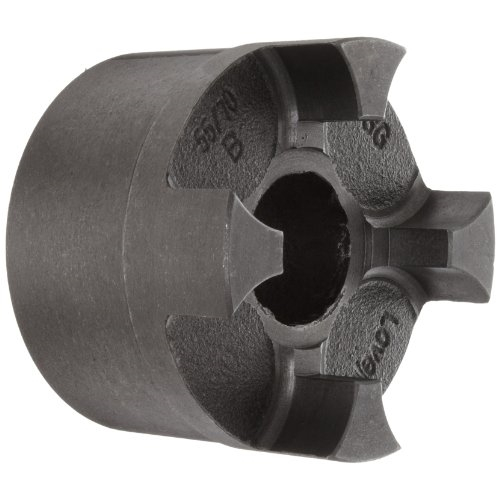

Lovejoy 77499 Size CJ 75/90B Curved Jaw Coupling Hub, Cast Iron, Inch, 2.5'' Bore, 6.3'' OD, 8.27'' Overall Coupling Length, 5/8" x 5/16" Keyway

Lovejoy 77499 Size CJ 75/90B Curved Jaw Coupling Hub, Cast Iron, Inch, 2.5

zoom

Brand: Lovejoy
PartNumber: 68514477499
Size: 6.3'' OD, 2.5'' Bore
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
Angular Displacement	0.130 in
Bore Size	2-1/2 in
Color	Gray
Coupling Size	75
Coupling Type	Jaw
Cubic inches	132.96150 in3
Description:	CJ75/90B-HUB-CI-2-1/2-5.
Dimension G	1.570 in (39.88 mm)
Dimension HD	6.300 in (160.02 mm)
Distance between Spider.	0.200 in (5.08 mm)
Hub Material	Cast Iron
Hub Style	B
Keyway Size	5/8 x 5/16 in
Length thru Bore (Dimen.	3.350 in (85.09 mm)
Manufacturer	LOVEJOY INC
Max Torque (with 92 Sho.	22650.00 in-lb
Max. Angular Displaceme.	1.20 ?, 1.20 ?
Max. Axial Displacement.	0.1200 in
Max. Bore (Dimensions I.	3.540 in (90.00 mm)
Max. Radial Displacemen.	0.0180 in
Max. Speed	3550.00 rpm
Max. Temperature Range .	-50 to 248 ?F, -50 to 2.
MFG Part #:	68514477499
Min. Bore (Dimensions I.	1.970 in (50.00 mm)
Nominal Torque (with 92.	11320.00 in-lb
Normal Temperature Rang.	-40 to 212 ?F
Outside Diameter	6.300 in (160.02 mm)
Overall Coupling Length	8.270 in (210.06 mm)
Set Screw Style Couplin.	0.980 in (24.89 mm)
Set Screw Style Couplin.	3/8-16
Spider Inside Diameter	3.150 in (80.00 mm)
Spider Outside Diameter	6.300 in (160.00 mm)
Spider Thickness (Dimen.	1.180 in (30.00 mm)
Style	Bored
Supplier:	LOVEJOY INC
Type	Curved Jaw Coupling Hubs
UPC:	685144774996
Weight	23.96 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	68514477499	328.2	1	In Stock		Lovejoy	23.96	328.2 @ 1
	heavydutydepot.com	68514477499	328.2	1	In Stock		Lovejoy		328.2 @ 1
	usmegastore.com	68514477499	333.2	1	In Stock		Lovejoy	23.96	333.2 @ 1
	kscdirect.com	LOV 68514477499	422.08	1	In Stock		LOVEJOY INC		422.08 @ 1
	midwestapplianceparts.com	68514477499-LJ-P	454.01	1	In Stock		Lovejoy		454.01 @ 1
	Airline Hydraulics	LOVEJOY 68514477499	769.15	1	In Stock		LOVEJOY		769.15 @ 1
