- mpn215THTS8071
- brandname: Marathon Motors
- manufacturername: Marathon Motors

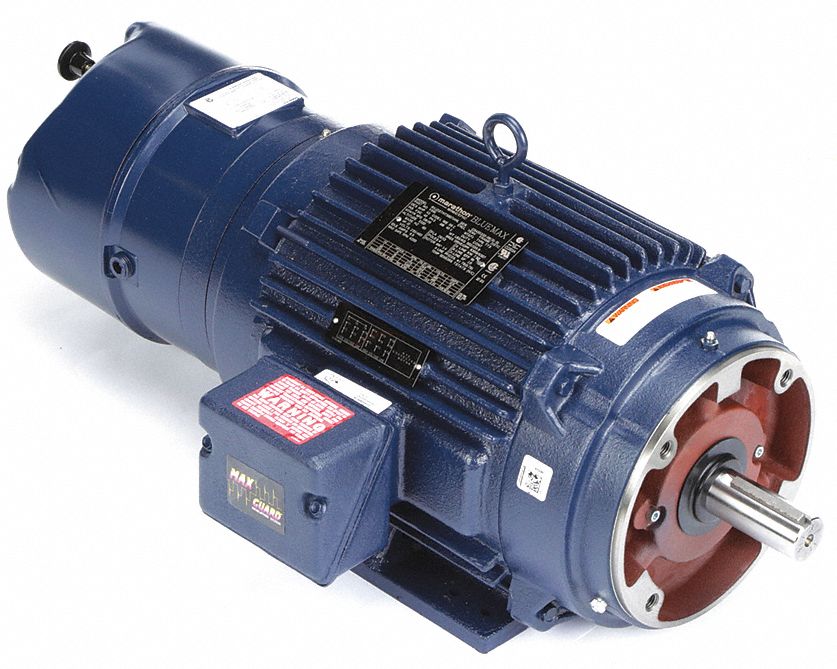

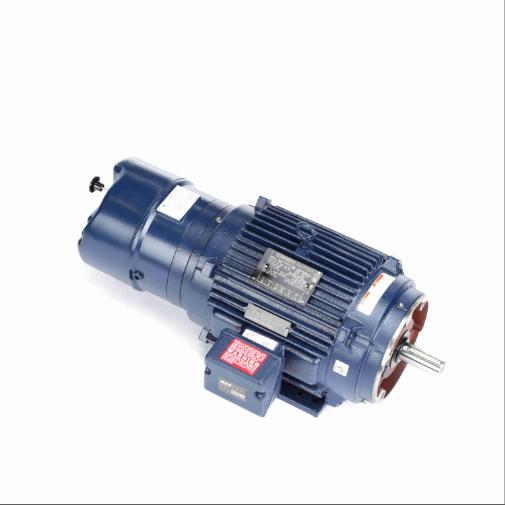

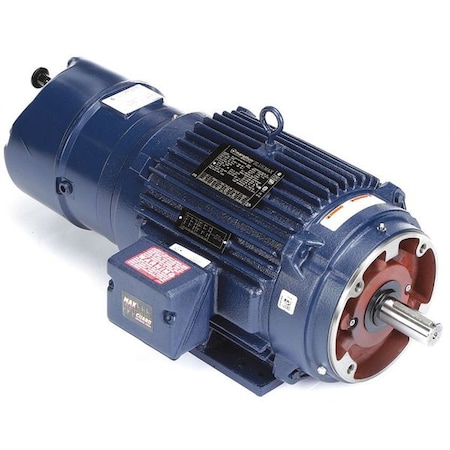

Marathon,10 HP Variable Speed Motor, 3 Phase, 1800 RPM, 230/460 V, 215TC Frame, TENV
- Brand: Marathon Electric
- PartNumber: 215THTS8071
- Model: MY991
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Ambient Temperature | 40 Degrees C |
| Application | Application |
| Approval | Approval |
| Base | Rigid |
| Classification | Inverter Vector Duty: B. |
| Composition | Cast Iron |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Constant Torque Speed R. | Constant Torque Speed R. |
| Construction | Cast Iron |
| Country of Origin (subj. | United States |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | Efficiency |
| Efficiency % | 91 % |
| Enclosure | Totally Enclosed Non-Ve. |
| Encoder Acceptable | Yes |
| Encoder Shaft | 1-1/8 in x 1-7/16 in |
| Encoder Shaft Dimensions | 1 1/8 in x 1 7/16 in |
| Family Series | Marathon Electric Motors |
| Finish | Enamel |
| FL Amps | 26.0/13.0 |
| FL Efficiency | 91 |
| Frame | 215TC |
| Frame Material | Cast Iron, Frame Materi. |
| Frame Remarks | C-Face Rigid |
| Frequency Rating | Frequency Rating |
| Full Load Amps | 26.0/13.0 |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 10 hp |
| HP | 10 |
| Hz | 60 |
| Includes | 140% Rated Spring-Set S. |
| Ins. Class | F |
| Insulation Class | Insulation Class |
| Insulation Feature | Class F |
| Item | Vector Motor |
| Item Condition | Factory New |
| Item Number | 215THTS8071 |
| Kilowatts | 7.5 kW |
| KW | 7.5 |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | Y991 |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 1,800 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Nonven. |
| Motor FLA | Motor FLA |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Footed |
| Mounting Type | Footed |
| Nameplate RPM | 1,775 |
| NEMA Design | A |
| NEMA Frame | 215TC |
| Net Weight | 302 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 91 % |
| Nominal Voltage | 240 VAC, 277 VAC, 347 V. |
| Number of Speeds | 1, Number of Speeds |
| Overall Length | 28 13/16 in |
| Part Number | 215THTS8071 |
| Phase | 3, Three |
| Product Type | Vector Duty |
| RPM | 1,775 RPM, 1800 |
| RPM Range | 1,701-1,800 |
| Service Factor | Service Factor, 1 |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 1/8 in |
| Speed (RPM) | 1775 |
| Speed Range | 2,000:1 |
| Speeds | Speeds |
| Standards | CE, CSA, UL Recognized |
| Torque | 50 ft-lb |
| Unspsc | Unspsc |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Variable Torque Speed R. | Variable Torque Speed R. |
| Voltage | 230V, 460V, 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 230/460 |
| Warranty | 3 yr |
| Weight | 302 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | mecampbell.com | 215THTS8071 | 2595.32 | 1 | In Stock | | Marathon Motors | | 2595.32 @ 1 |
 | motorsandcontrol.com | Y991 | 2595.32 | 1 | In Stock | | Marathon Motors | | 2595.32 @ 1 |
 | Galco | 215THTS8071-MARA | 2935.68 | 1 | In Stock | | Marathon Electric | 302.0 | 2935.68 @ 1 |
 | Dealers Electric | 215THTS8071 | 3367.79 | 1 | 12 | | Marathon Electric | 302.0 | 3367.79 @ 1 |
| AmazonTP | B00IXARIO0 | 4121.39 | 1 | In Stock | 2 | Marathon Electric | | 4121.39 @ 1 |
 | Zoro | G9923103 | 4481.3 | 1 | In Stock | 26 | Marathon Motors | 302.0 | 4481.3 @ 1 |
 | pumpproducts.com | 215THTS8071 | 5372.4 | 1 | In Stock | | Marathon | | 5372.4 @ 1 |
 | Raptor Supplies | AF8KFY | 7840.6572465 | 1 | In Stock | | MARATHON MOTORS | | 7840.6572465 @ 1 |
 | sustainablesupply.com | C1512997 | 9482.59 | 1 | In Stock | | Marathon | 302.0 | 9482.59 @ 1 |
