Marathon Industries 364TSHFS9026

B0042G595O

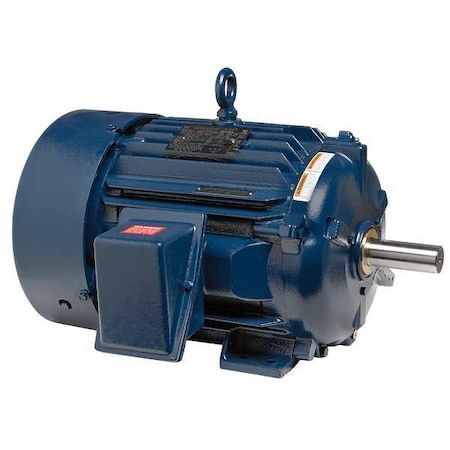

IEEE 841 Motor 3-Ph TEFC 60 HP T2B

IEEE 841 Motor 3-Ph TEFC 60 HP T2Bzoom

Attributes

Key Value
CC NumberCC003A
ClassificationBlue Chip Severe Duty A.
CompositionCast Iron
Country of Origin (subj.United States
DutyContinuous
Efficiency %95 %
EnclosureTEFC, Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame364TS
Frame MaterialCast Iron
Frame RemarksRigid
Full Load Amps70.0
Gross Weight0 lbs
Horsepower60 hp
HP60
Hz60
IncludesBreather/Drain
Ins. ClassF
ItemIEEE 841 Motor
Item ConditionFactory New
Item Number364TSHFS9026
Kilowatts45 kW
Length Less Shaft25-3/8"
ManufacturerMarathon Electric
Manufacturer Part NumberW586
Max. Ambient Temp.40 Degrees C
Motor ApplicationIEEE Motor
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting TypeFooted
Nameplate RPM1780
NEMA Frame364TS
Net Weight959 lbs
No. of Speeds1
Nominal Efficiency95.8%
Nominal Voltage480 VAC
Overall Length29-3/8"
Phase3
RPM1,780 RPM, 1800
RPM Group1701-1800
RPM Range1701-1800
Service Factor1.15
Shaft Dia.1-7/8"
Shaft Length4"
StandardsUL (E49747), CSA (LR202.
Voltage460
Voltage (AC)460 VAC
Voltage Compatibility460, 208-230/460
Volts460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco364TSHFS9026-MARA6362.451In StockMarathon Electric959.06362.45 @ 1
thumbzoomZoroG19952316525.641In Stock25Marathon Motors6525.64 @ 1
thumbzoomDealers Electric364TSHFS90268589.191In StockMarathon Electric959.08589.19 @ 1
