- mpn44620-0002
- brandname: Molex Incorporated
- manufacturername: Molex Incorporated

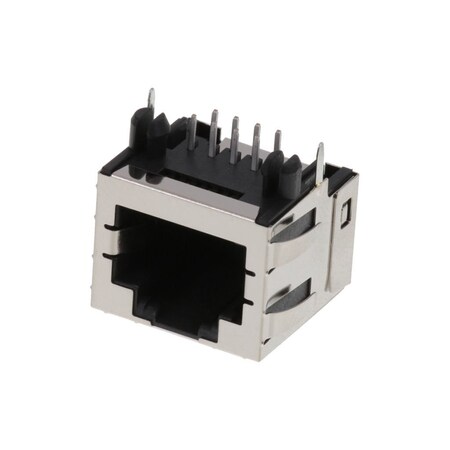

Molex / Waldom 44620-0002 Connector Telephone and Telecom
- Brand: Molex / Waldom
- PartNumber: 44620-0002
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Part No. | 538-44620-0002 |
| Base Product Number | 044620 |
| Body Material | High Temperature Thermo. |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0?in (1.27?m) |
| Contact Material | Brass, Phosphor Bronze,. |
| Contact Plating | Gold |
| Current Rating | 1.5 A |
| Description | CONN MOD JACK 8P8C R/A . |
| Detailed Description | Jack Modular Connector . |
| Digi-Key Part Number | WM5468-ND |
| Features | Board Lock, Keyed |
| Flammability Rating | UL 94 V-0 |
| Gender | Female |
| Housing Material | Thermoplastic, Polyamid. |
| Ingress Protection | - |
| LED Color | Does Not Contain LED |
| Manufacturer | Molex |
| Manufacturer Part No. | 44620-0002 |
| Manufacturer Product Nu. | 0446200002 |
| Manufacturer Standard L. | 12 Weeks |
| Mates With | FCC 68 Plugs |
| Maximum Current | 1.5 A |
| Maximum Voltage | 150 VAC |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Type | Through Hole, Surface M. |
| Number of Ports | 1 |
| Number of Positions | 8, 8 ; 8 |
| Number of Positions/Con. | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature | -40?C ~ 85?C, -40 to +8. |
| Operating Temperature R. | - 40 C to + 85 C |
| Orientation | Right Angle (Side Entry. |
| Package | Tray |
| Package Quantity | 1 |
| Packaging | Tray |
| Part # Aliases | 0446200002 |
| Performance | 3 |
| Performance Category | Cat 3 |
| Pitch | 1.02mm |
| Plating Material | Gold, Tin |
| Product Category | Modular Connectors / Et. |
| Product Status | Active |
| Ratings | Cat3 |
| Series | RJ45 Series, 44620 |
| Shielding | Shielded, Yes, Shielded. |
| Special Features | RJ-11 Keepout Feature |
| Tab Direction | Up |
| Temperature Operating R. | -40?C to +85?C |
| Termination | Solder, Through Hole |
| Termination Style | Through Hole |
| Tradename | RJ45 |
| Type | PCB Jack |
| UPC Code | 800753265431 |
| USOC Codes | RJ45 |
| Voltage Rating | 150 VAC |
