Omron D4C-1601

B00DKF2F5K

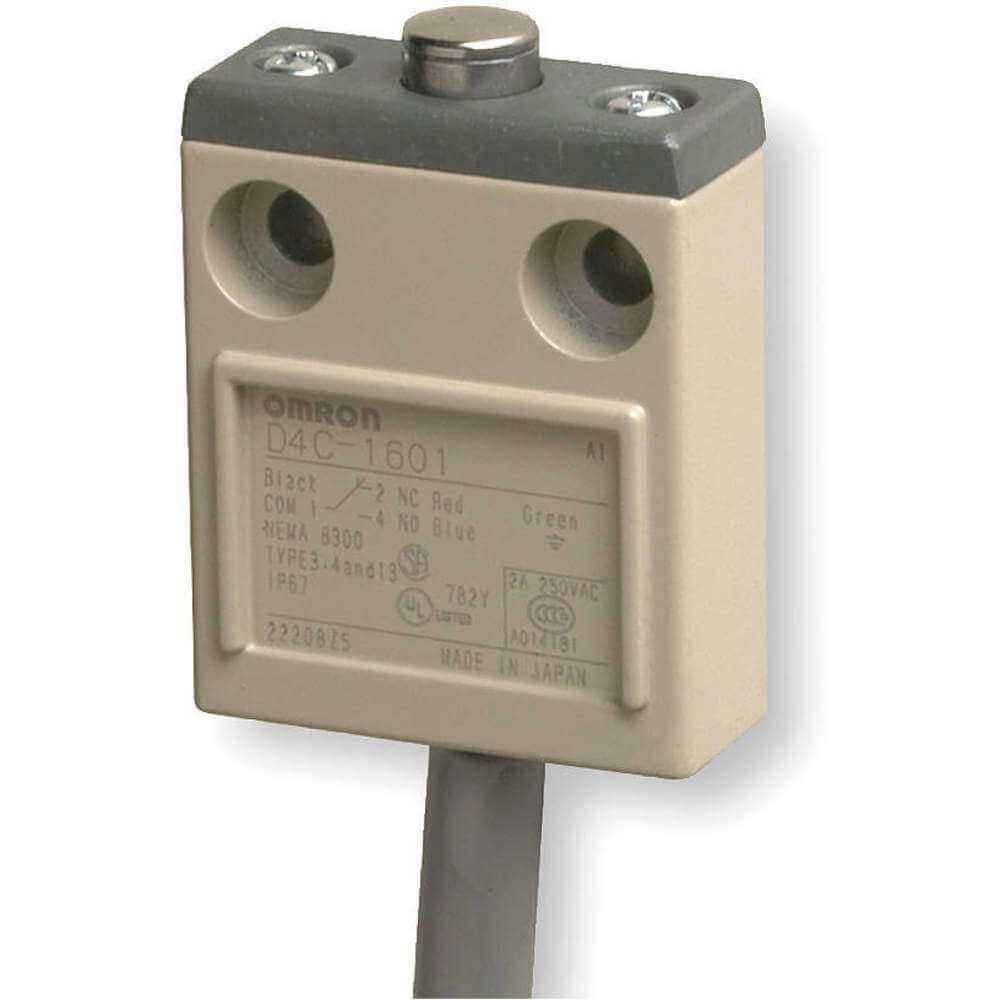

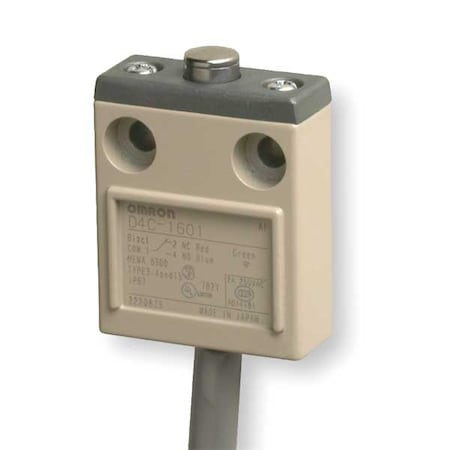

Omron Industrial Automation D4c-1601 Limit Switch, Pin Plunger, Spdt

Omron Industrial Automation D4c-1601 Limit Switch, Pin Plunger, Spdtzoom

Attributes

Key Value
AC Contact Rating5A @ 240V
AC Contact Rating - Lim.5 A @ 240V, 5A @ 240V
Actuator Location - Lim.Top
Actuator Style (Limit S.Plunger
Actuator Style - Limit .Plunger
Actuator TypeRound (Pin Plunger), Pin
Alternate Mfr Part Numb.D4C1601
Basic Actuator Style - .Plunger
Body Depth - Limit Swit.0.63 in
Body Height - Limit Swi.2.13 in
Body MaterialAluminum
Body Style - Limit Swit.Miniature
Body Width - Limit Swit.1.33 in
Boot Sealed Actuator (L.No
Boot Sealed Actuator - .No
Box shape-
BrandOmron
CircuitSPDT
Contact FormSPST-NO ; SPST-NC
Contact Form - Limit Sw.SPDT
Contact Form- SwitchesSPDT
Current Rating5 A
Current Rating (Amps)5A (AC), 4A (DC)
Current Stock97
DC Contact Rating - Lim.Not Rated
Depth0.63"
Dielectric Strength1000/1500 VAC
Differential Travel0.008" (0.2mm)
Electrical Connection3 m Cable, SJT, 3m Cabl.
Electrical Life200,000 Cycles
FeaturesCable Length 3m
Head TypeTop Plunger Head
Height2.13"
Ingress ProtectionIP67 - Dust Tight, Wate.
International ShippingNo
IP RatingIP67, 67
ItemLimit Switch
Lead TimeExpected to ship in 1-2.
Limit Switch StyleGeneral Purpose Limit S.
Main Body SizeSmall
MaterialRugged Diecast (Housing)
Mechanical Life10,000,000 Cycles
MfrOmron Automation and Sa.
Mounting - Limit SwitchSurface
Mounting Hole - Limit S.(2) 0.20 in dia
Mounting Hole Pattern -.2 Hole Horizontal
Mounting Hole Size10.2 mm
Mounting Hole Spacing -.0.98 in
Mounting TypePanel Mount, Chassis Mo.
MovementTop
MpnD4C1601
NEMA Rating3, 4, 13, IP67, 13, 3, 4
Number of Poles1
Operating Force42.32 Oz., 11.77 N, 120.
Operating Position0.618" (15.7mm)
Operating Temp. Range-14 Degrees to 158 Deg.
Operating Temperature-10 to +70 ?C, -10?C ~ .
Overtravel0.118" (3.0mm)
Part StatusActive
Pretravel0.071" (1.8mm)
Release Force450gf
SeriesD4C, D4C Series
SKUZO-G3439387
StandardsUL/CSA/CE
Stem Thread - Limit Swi.No Stem
SubCategoryElectrical
Switch FunctionOn-Mom
TerminationScrew
Termination StyleCable Leads
TravelMaximum Pre-Travel 1.8 .
TypeLimit
Voltage Rating250 V
Voltage Rating - AC250 V
Voltage Rating - DC30 V
Width1.57"
Wiring Entry3 m Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB002KL591C80.331In Stock1Omron80.33 @ 1
AmazonSCB002KL591C80.331In StockOmron80.33 @ 1
thumbzoomMisumi USAD4C-160184.411In Stock15OMRON84.41 @ 1
Onlinecomponents.comD4C160190.219OMRON INDUSTRIAL90.2 @ 1
thumbzoomDigi-KeyZ1055-ND115.761In StockOmron Automation and Safety115.76 @ 1
thumbzoomCarlton Bates Company40312372935122.51In StockOMRON122.5 @ 1
Airline HydraulicsOMRON D4C-1601139.01In StockOmron139.0 @ 1
thumbzoomZoroG3439387140.991134Omron0.89140.99 @ 1
Master ElectronicsD4C1601141.8812Omron Automation141.88 @ 1
grainger.caWWG2CLV5142.178137341In StockOMRON0.89142.17813734 @ 1
thumbzoomsustainablesupply.comC1177420142.191In StockOmron0.89142.19 @ 1
us.rs-online.com70179858156.371In StockOmron Automation156.37 @ 1
thumbzoomsimsupply.comZO-G3439387166.95197Omron166.95 @ 1
thumbzoomRaptor SuppliesAB9ERV221.905711In StockOMRON221.90571 @ 1
Newark41P8713342.271In StockOMRON ELECTRONIC COMPONENTS342.27 @ 1
