Panduit LCAN1-10-E

B07LC2VD2N

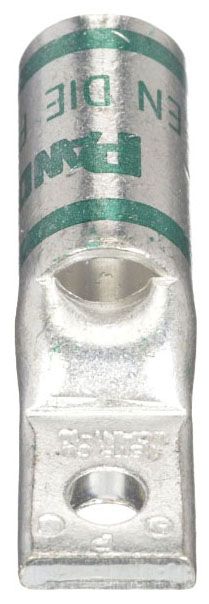

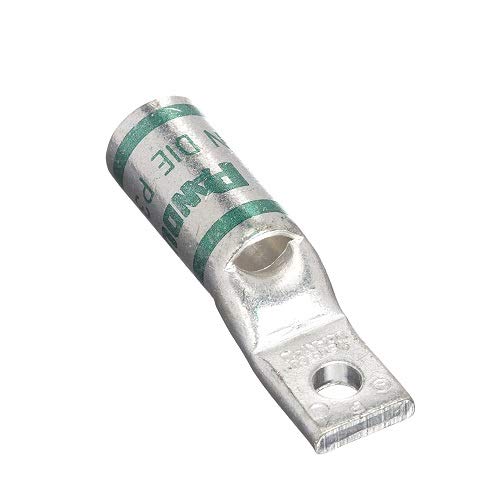

LCAN1-10-E, One-Hole, Standard Barrel with Window, Narrow Tongue Lug, 1 AWG Wire, 10 Stud Hole. (5 Items)

LCAN1-10-E, One-Hole, Standard Barrel with Window, Narrow Tongue Lug, 1 AWG Wire, 10 Stud Hole. (5 Items)zoom

Attributes

Key Value
Allowable Gauge Range1
ApprovalsCSA, UL
Base Product NumberLCAN
CategoryConnectors, Interconnec.
ColorGreen
Color CodeGreen
Contact FinishElectro-Tin
Contact MaterialCopper
Country of Origin (subj.Mexico
Diameter - Barrel ID0.360" (9.14mm)
Diameter - Barrel OD0.470" (11.94mm)
Diameter - Ring ID0.200" (5.08mm)
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight0.95 lbs
InsulationNon-Insulated
Item NumberLCAN1-10-E
Length - Overall1.690" (42.93mm)
ManufacturerPanduit
Manufacturer Part NumberLCAN1-10-E
MaterialCopper
Material/CompositionCopper
Max Conductor Range1 AWG
MfrPanduit Corp
Min Conductor Range1 AWG
Mounting1-Hole
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
Number of Conductors1
Number of Holes1
PackageBulk
Part StatusActive
Product SeriesPan-Lug Compression
RoHS CompliantYes
SeriesPan-Lug?
Stud Size#10
Stud/Tab Size10 Stud
Tab Thickness0.110" (2.79mm)
Terminal StyleSingle Stud Hole
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Width - Outer Edges0.470" (11.94mm)
Wire Gauge1 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCAN1-10-E5.2215PANDUIT5.22 @ 5
Digi-Key45646498.075005Panduit Corp8.07 @ 5
Onlinecomponents.comLCAN1-10-E10.62120PANDUIT10.62 @ 5
thumbzoomZoroG278812811.61526Panduit11.6 @ 5
thumbzoomGalcoLCAN1-10-E-PNDT11.6205Panduit0.9511.6 @ 20
thumbzoomNewark64K132211.9415PANDUIT11.94 @ 5
thumbzoomPlatt.com068432812.3515Panduit12.35 @ 5
Airline HydraulicsPANDUIT LCAN1-10-E13.9915Panduit Corp13.99 @ 5
thumbzoomgordonelectricsupply.comLCAN1-10-E244.01512PANDUIT244.0 @ 5
thumbzoomCarlton Bates Company07498344490282.415PANDUIT282.4 @ 5
