TELEMECANIQUE SENSORS XCKM101H7

B00CONDT36

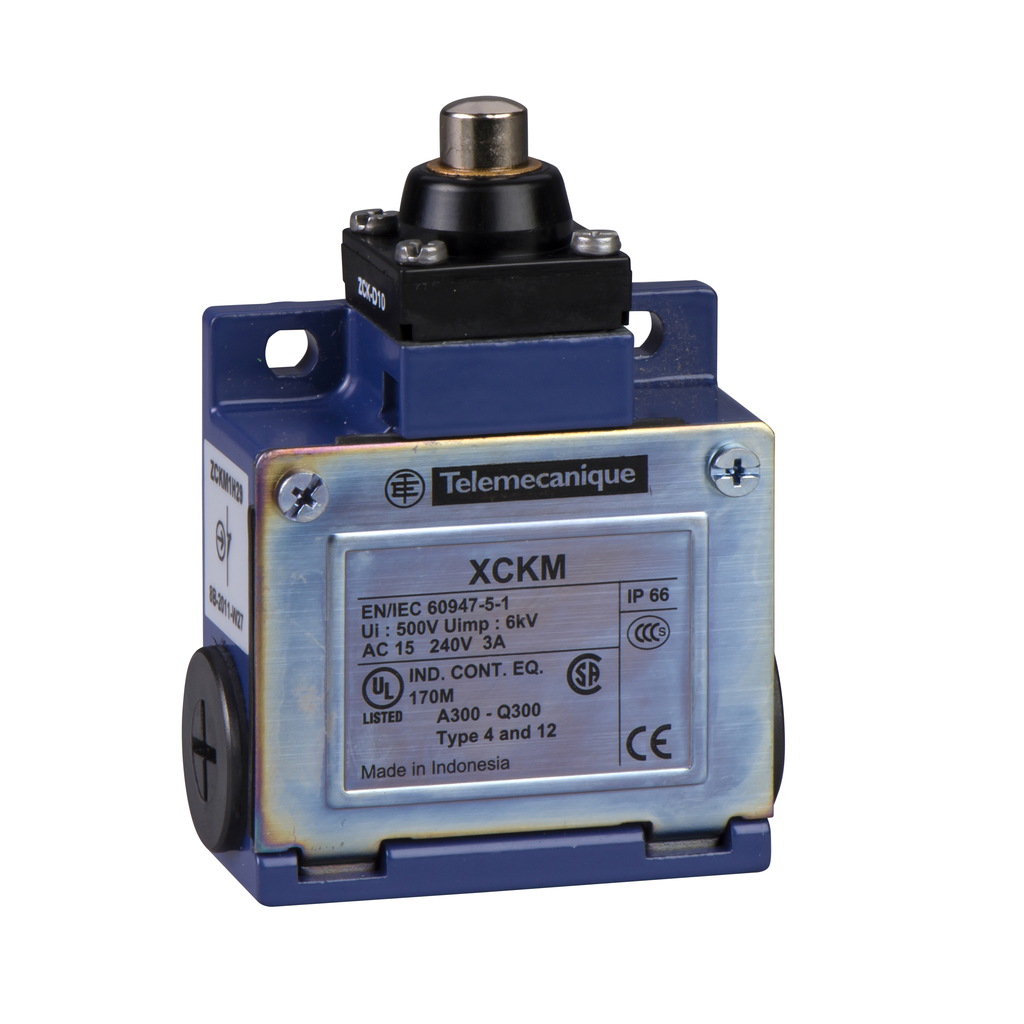

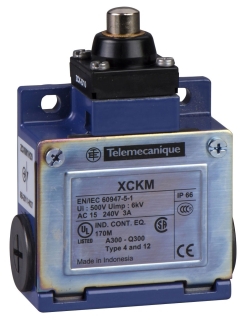

Telemecanique XCKM101H7 Limit Switch, 240 VAC, 10 amp, 1 NO + 1 NC, Metal Body, PG 11

Telemecanique XCKM101H7 Limit Switch, 240 VAC, 10 amp, 1 NO + 1 NC, Metal Body, PG 11zoom

Attributes

Key Value
[Ithe] Conventional Enc.10 A AC
[Ui] Rated Insulation V.300 VUL 508 || 500 V 3).
[Uimp] Rated Impulse Wi.6 kV IEC 60664 || 6 kV .
Actuator TypeRound (Pin Plunger)
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-70 ?C
Body Materialzamak
Body Typefixed
Cable Entry3 entries tapped for 1/.
California Proposition .Diisononyl phthalate (D.
CategorySwitches
CircuitDPST-NO/NC
Contact Code DesignationA300, AC-15 (Ue = 240 V.
Contact Operationsnap action
Contacts Insulation FormZb
Contacts Type And Compo.1 NC + 1 NO
Current Rating (Amps)3A (AC), 270mA (DC)
Depth30 mm
DescriptionLIMIT SWITCH ASSEMBLY
Detailed DescriptionSwitch DPST-NO/NC Chass.
Device Short NameXCKM
Differential Travel-
Digi-Key Part Number4008-XCKM101H7-ND
Electrical Connectionscrew-clamp terminals 1.
Electrical Durability5000000 cycles, DC-13, .
Electrical Life5,000,000 Cycles
Electrical Shock Protec.class I IEC 61140 || cl.
Eu Rohs DirectiveNot applicable, out of .
Features-
Fixing Modeby the body
Head Typerotary head
Height64-64 mm
Ik Degree Of ProtectionIK05 EN 50102
Ingress ProtectionIP66 - Dust Tight, Wate.
Ip Degree Of ProtectionIP66 conforming to EN/I.
ManufacturerSchneider Electric
Manufacturer Product Nu.XCKM101H7
Manufacturer Standard L.1 Weeks
Materialmetal
Maximum Actuation Speed1.5 m/s
Maximum Resistance Acro.25 MOhm IEC 60255-7 cat.
Mechanical Durability15000000 cycles
Mechanical Life15,000,000 Cycles
MfrSchneider Electric
Minimum Actuation Speed0.01 m/min
Minimum Torque For Trip.0.1 N.m
Mounting TypeChassis Mount
Movement Of Operating H.rotary
Net Weight0.28 kg
Number Of Poles2
Number Of Steps1
Operating Force-
Operating Position-
Operating Temperature-25?C ~ 70?C
Overtravel-
PackageBox
Positive Openingwith
Positive Opening Minimu.0.25 N.m
Pretravel-
Product CertificationsUL || CCC || CSA
Product Or Component Ty.limit switch
Product StatusActive
Protective TreatmentTC
Range Of ProductTelemecanique Limit swi.
Reach RegulationReference contains Subs.
Release Force-
SeriesXC
Series Namestandard format
Shock Resistance50 gn 11 ms EN/IEC 6006.
Short-Circuit Protection10 A cartridge fuse gG
StandardsUL 508 || CSA C22.2 No .
Switch FunctionOn-Mom, Off-Mom
Terminals Description I.(21-22)NC || (13-14)NO
Termination StyleScrew Terminal
Type Of Approachlateral approach, 2 dir.
Type Of Operatorspring return without o.
Vibration Resistance25 gn 10-500 Hz)EN/IEC .
Voltage Rating - AC240 V
Voltage Rating - DC250 V
Warranty18 months
Width64 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comXCKM101H7110.091In Stock10SQUARE D110.09 @ 1
thumbzoomRadwellXCKM101H7125.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE125.0 @ 1
thumbzoommayerelectric.comSQDXCKM101H7132.281In StockSQUARE D0.616132.28 @ 1
thumbzoomDigi-Key17150278172.231In StockSchneider Electric172.23 @ 1
