- mpn2BK2858
- brandname: TB Woods
- manufacturername: TB Woods

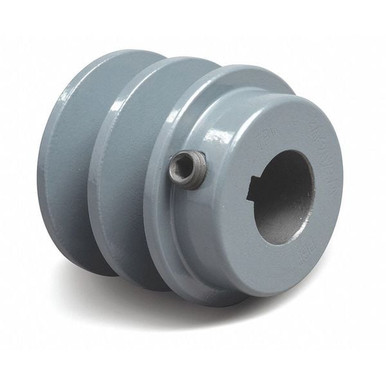

TB Woods 2BK2858 FHP Bored-to-size V-Belt Sheave, B Belt Section, 2 Grooves, 5/8" Bore, Cast Iron, 2.95" OD, 8480 max rpm
- Brand: TB Woods
- PartNumber: 2BK2858
- Model: 698672150323
- Size: 8480 max rpm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB Woods
- Label: TB Woods
Attributes
| Key | Value |
|---|
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 2.58 in |
| 4L, A, or AX Belt Pitch. | 2.2 in |
| 5L Pitch Diameter | 3.013 in |
| 5L, B, or BX Belt Pitch. | 2.6 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 2.58 in |
| AX Pitch Diameter | 2.58 in |
| B Pitch Diameter | 3.013 in |
| Belt section | B-5L-A-4L |
| Bore Diameter | 5/8 in |
| Bore type | Finished with keyway |
| Bore-to-size bore diame. | 0.63 |
| Bore-to-size keyseat | 3/16 in x 3/32 in |
| Brand | Tb Woods |
| Bushing Required | None |
| BX Pitch Diameter | 3.013 in |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 0.01 |
| Construction | Solid |
| Current Stock | 22 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 2.6 |
| Dimension | 0.47 |
| Face Width | 1.75 in |
| Face width | 1.75 |
| Face width (in) | 1.75 |
| Fits Shaft Dia. | 5/8 in |
| For Belt Section (broad. | 4L, A, or AX, 5L, B, or. |
| For Belt Trade Size | 4L, 5L, A, AX, B, BX |
| For V-Belt Section | 4L, 5L, A, AX, B, BX |
| For V-Belt Type | Banded, Classical, Cogg. |
| Groove cross section se. | B |
| Hub location | -0.47 |
| Hub location (in) | -0.47 |
| Hub Projection | 0.47 in |
| I.D. | 2.45 |
| Industry Number | 2BK2858 |
| Inertia WR? | 2 |
| Inside diameter (in) | 2.45 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Keyway Depth | 3/32 in |
| Keyway Size | 0.187" x 0.093" |
| Keyway Size Type | 0.187 in x 0.093 in |
| Keyway Width | 3/16 in |
| Length through Bore | 1 31/32 in |
| Material | Cast Iron |
| Material type | CI |
| Max RPM | 8480 |
| Maximum Bore Diameter | 5/8 in |
| Mpn | 2BK2858 |
| Number of Grooves | 2 |
| Number of grooves | 2 |
| O.D. | 2.95 |
| Outside Diameter | 2.95 in |
| Outside diameter (in) | 2.95 |
| Overall Width | 2 1/4 in |
| Pitch diameter | 3.01 |
| Pitch Diameter | 3.01 in |
| Pitch Diameter for V-Be. | 4L: 2.58 in / 5L: 3.013. |
| Pulley Bore Dia. | 5/8 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Construction | Plain |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 2.95 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 8480 |
| Set Screw Included | Yes |
| SKU | ZO-G0885385 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672150323 |
| Weight | 2.1 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0885385 | 37.25 | 1 | In Stock | | Tb Woods | 4.2 | 37.25 @ 1 |
 | sustainablesupply.com | C1694536 | 37.58 | 1 | In Stock | | TB Wood's | 4.2 | 37.58 @ 1 |
 | simsupply.com | ZO-G0885385 | 47.86 | 1 | 22 | | Tb Woods | | 47.86 @ 1 |
 | National Supply Network | 82223678 | 50.81 | 1 | In Stock | | TB Wood's | | 50.81 @ 1 |
 | bscsource.com | 2BK2858 | 72.49 | 1 | In Stock | | TB Wood's | | 72.49 @ 1 |
 | MRO Supply | 345715 | 78.55 | 1 | In Stock | | TB Woods | | 78.55 @ 1 |
 | Raptor Supplies | AE6PNF | 83.8571175 | 1 | In Stock | | TB WOOD'S | | 83.8571175 @ 1 |
| us.rs-online.com | 73931850 | 87.15 | 1 | In Stock | | TB Wood's (Altra) | | 87.15 @ 1 |
