Amp - Te Connectivity 322927

B00KTNXH9E

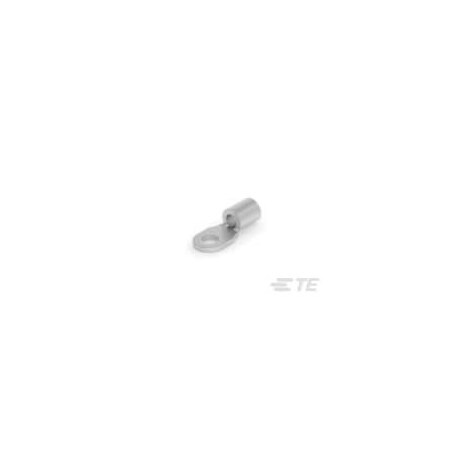

Amp - Te Connectivity Terminal, Ring Tongue, 2, Crimp - 322927

Amp - Te Connectivity Terminal, Ring Tongue, 2, Crimp - 322927zoom

Attributes

Key Value
Barrel Inside Dia.0.061 in
Barrel Inside Diameter1.549?mm?[?.061?in?]
Barrel TypeClosed Barrel
CategoryConnectors, Interconnec.
ColorCopper, -
Contact FinishTin, -
Contact MaterialCopper, Tin
Contact Plating MaterialTin, Copper
FeaturesInspection Slot, -, Bra.
Heavy DutyNo
InsulatedNo
InsulationNon-Insulated, Brazed S.
Insulation Diameter-
Insulation TypeNon-Insulated
ItemRing Terminal
Length - OverallFree Hanging (In-Line),.
Material - Insulation-
Max. Temp.338 Degrees F
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line),.
Number of Holes1
Operating Temperature R.170??C?[?338??F?]
Overall Length11.33?mm?[?.4461?in?], .
PackageActive, Bulk
Package Quantity1
Packaging MethodLoose Piece
Part StatusD-Shaped, Active
Plating MaterialCopper, Tin
SealableNo
SeamClosed Barrel
SeriesBulk, Solistrand
Stud Diameter2.36?mm?[?.093?in?]
Stud Size#2, 2, M2
Stud/Tab Size2 Stud, 0.031" (0.79mm)
Support StyleNon - Insulation Support
TerminalRing Tongue
Terminal AngleStraight
Terminal OrientationOffset, Straight, Offset
Terminal TypeD-Shaped, Ring Tongue, .
Termination16-22 AWG, Crimp
Thickness0.182" (4.62mm), 0.031".
Tongue Thickness.79?mm?[?.031?in?]
Width - Outer Edges0.182" (4.62mm), 0.446".
Wire GaugeNon-Insulated, 16-22 AWG
Wire Insulation SupportWithout
Wire Range22 to 16 AWG
Wire Size509 ? 3260, .26 ? 1.65,.
Wire TypeSolid or Stranded, Regu.
Wire/Cable TypeRegular Wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark93B50100.12414084AMP - TE CONNECTIVITY0.124 @ 1
Avnet3229270.18810002117TE Connectivity0.188 @ 1000
Onlinecomponents.com3229270.20216792TE Connectivity / AMP Brand0.202 @ 1
TE Connectivity3229270.202411446TE Connectivity (TE)0.2024 @ 1
us.rs-online.com720167900.21863000457TE Connectivity0.2186 @ 3000
RS Delivers795-2052P0.37441457TE Connectivity0.3744 @ 1
HotendaH16561010.411457TE Connectivity AMP Connectors0.41 @ 1
Digi-Key2927560.4625002897TE Connectivity AMP Connectors0.46 @ 1
thumbzoomZoroG80590019995.01In StockTe Connectivity95.0 @ 1
