WIDIA 4148023

mpnVDS202A02383
brandname: WIDIA
manufacturername: WIDIA

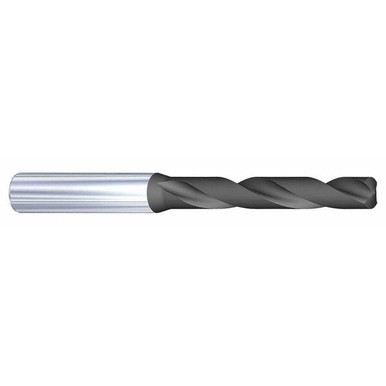

WIDIA VDS202A02383 VariDrill VDS202A, 0.0938" Diameter, 140? Cutting Angle, Right Hand Cut, Cone Point, Carbide, TiAlN Coating

WIDIA VDS202A02383 VariDrill VDS202A, 0.0938" Diameter, 140? Cutting Angle, Right Hand Cut, Cone Point, Carbide, TiAlN Coating

zoom

Brand: WIDIA
PartNumber: 4148023
Model: 4148023
PackageQuantity: 1
Binding: Misc.
Manufacturer: WIDIA Products Group
Label: WIDIA Products Group

Attributes

Key	Value
Brand	Widia
Coolant Fed	Non-Coolant Through
Current Stock	42
Cutting Direction	Right Hand
Decimal Equivalent	0.0938
Depth x Dia. Ratio	5xD
Depth:Dia. Ratio	5xD
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	TiAlN
Drill Bit Grouping	Drill Bit
Drill Bit Material	Carbide
Drill Bit Point Angle	140 Degrees
Drill Bit Size	3/32 in
Drill Diameter Tolerance	H8
Drill Length Class	Jobber Length
Drill Point Length	0.3790mm
Drilling Depth	17.00mm
Flute Length	22.00 mm
Flute Type	Helical
International Shipping	No
Item	Jobber Length Drill Bit
Material	Carbide
Maximum Drilling Depth	17 mm
Mpn	VDS202A02383
Overall Length	58.00 mm
Shank Dia.	4.00 mm
Shank Length	28.00 mm
Shank Type	Straight
SKU	ZO-G2751100
SubCategory	Machining

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2751100	54.69	1	166		Widia	0.02	54.69 @ 1
	simsupply.com	ZO-G2751100	74.35	1	In Stock		Widia		74.35 @ 1
