- mpnZDVSNM3538
- brandname: Baldor-Reliance
- manufacturername: Baldor-Reliance

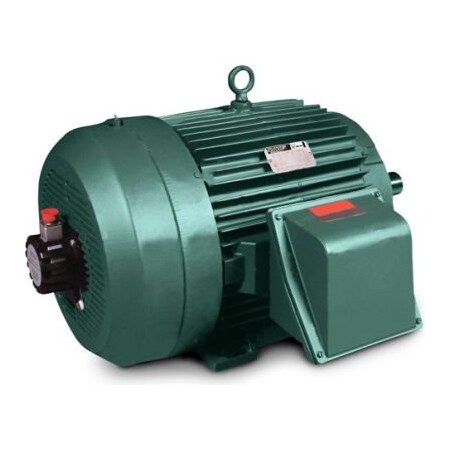

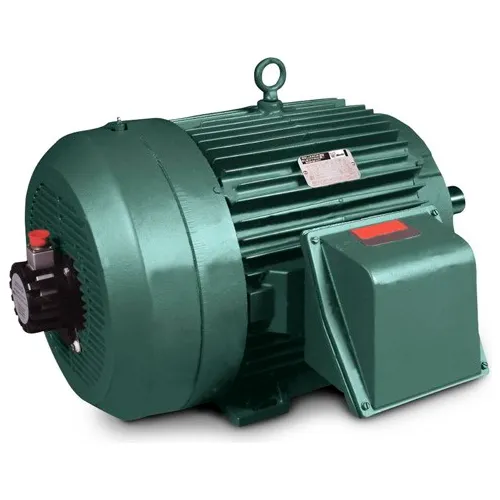

(ZDVSNM3538) 1/2 Hp 230/460 Vac 3 Phase 56C Frame TENV 1800
- Brand: Baldor Electric
- PartNumber: ZDVSNM3538
- PackageQuantity: 1
- Manufacturer: Baldor Electric
- Label: Baldor Electric
Attributes
| Key | Value |
|---|
| Amps | 1.8/0.9 |
| Application | Severe Duty |
| Bearings | Ball |
| Comments | 60 Hz |
| Composition | Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | United States |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 84.0% |
| Efficiency % | 84 % |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Material | Steel |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 37.00 |
| Family Name | Variable Speed AC Family |
| Family Series | Baldor Motors |
| FL Amps | 1.8/.9 |
| FL Efficiency | 84 |
| Frame | 56C |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Gross Weight | 35 lbs |
| Hertz | 60 |
| Horsepower | 1/2 hp |
| Horsepower Rating | 0.5 HP |
| HP | 0.5, 1/2 |
| Hz | 60 |
| Insulation Class | H |
| Inverter Duty | Yes |
| Item Number | ZDVSNM3538 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 35R457G155G1 |
| Manufacturer Part Number | ZDVSNM3538 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, C-Face/Rigid |
| Mounting Type | Foot Mount, Footed / Fl. |
| NEMA Frame | 56C |
| Net Weight | 35 lbs |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Speeds | 1 |
| Overall Length | 13.84" |
| Part Number | ZDVSNM3538 |
| Phase | 3, 3 Phase |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,765 RPM, 1765 RPM, 17. |
| Series | VS Master Series |
| Service Factor | 1, 1.00 |
| Shaft Diameter | 0.625" |
| Ship Weight | 37 lbs. |
| Special Features | Encoder ; Inverter Read. |
| Speed (RPM) | 1765 |
| Supply Voltage | 230/460 VAC |
| UPC Code | 781568469187 |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| us.rs-online.com | 71934589 | 2133.57 | 1 | 3 | | Baldor-Reliance | | 2133.57 @ 1 |
 | Galco | ZDVSNM3538-BLDR | 2342.75 | 1 | In Stock | | Baldor | 35.0 | 2342.75 @ 1 |
 | Walker Industrial | ZDVSNM3538 | 2342.75 | 1 | In Stock | | Baldor | | 2342.75 @ 1 |
 | Global Industrial | WBB392033 | 2344.0 | 1 | In Stock | | Baldor-Reliance | | 2344.0 @ 1 |
 | motorsandcontrol.com | ZDVSNM3538 | 2440.36 | 1 | In Stock | | Baldor Reliance | 37.0 | 2440.36 @ 1 |
| factorysupplyoutlet.com | ES95GG | 2523.84 | 1 | In Stock | | Baldor-Reliance | | 2523.84 @ 1 |
 | emotorpro.com | ZDVSNM3538 | 2527.31 | 1 | In Stock | | Baldor | 37.0 | 2527.31 @ 1 |
| motionindustries.com | 03755053 | 3288.56 | 1 | In Stock | | Baldor-Reliance | | 3288.56 @ 1 |
 | pumpproducts.com | ZDVSNM3538 | 4092.0 | 1 | In Stock | | Baldor | | 4092.0 @ 1 |
 | Zoro | G004934384 | 4567.45 | 1 | In Stock | 9 | Baldor-Reliance | | 4567.45 @ 1 |
