Burndy YA382N

B00CBNSDIA

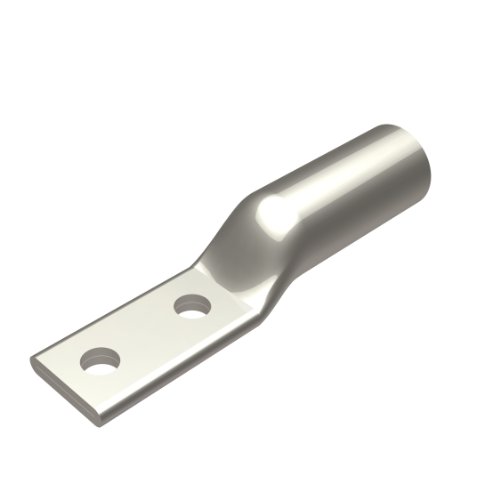

Burndy YA382N Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 700 kcmil Conductor, 1/2" Stud Hole Size, 1-3/4" Stud Hole Spacing, 1.84" Tongue Width, 6.77" Length, Pink

Burndy YA382N Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 700 kcmil Conductor, 1/2" Stud Hole Size, 1-3/4" Stud Hole Spacing, 1.84" Tongue Width, 6.77" Length, Pinkzoom

Attributes

Key Value
ApprovalsCSA, UL
Certification - CSA App.Yes
Certification - cULusNo
Certification - UL Reco.No
ColorPink
Color CodePink
Conductor - Copper DLO .N/A
Conductor - Copper Str .700 kcmil
Conductor - MaterialCopper
Connector TypeTerminal
Country of OriginUS - United States
Country of Origin (subj.United States
Die Index400
Dimension - B Length fr.2-13/16 in
Dimension - B Length in.2.81 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1/2
Dimension - Hole Size i.0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.172 mm
Dimension - Length Over.6.77 in
Dimension - N inch0.63 in
Dimension - Outside Dia.1.25 in
Dimension - Pad Width i.1.84 in
Dimension - Strip Lengt.2-7/8
Dimension - Stud Size i.1/2
Dimension - Z inch0.64 in
ECCNEAR99
Family SeriesBurndy Terminals, YA-2N.
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Gross Weight0.06 lbs
Industry Standard(s)UL468A-468B
InsulatedNon-Insulated
Item NumberYA382N
ManufacturerBurndy
Manufacturer Part NumberYA382N
MaterialCopper
Max Temp194 ?F
Net Weight0 lbs
Physical Attribute - Nu.2
Physical Attribute - To.Straight
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin
Product SeriesYA-2N
Rating - KVA35 kV
Rating - Minimum Voltage600
Standards - RoHS Compli.CM
Stud Spacing1.75
Terminal MaterialCopper
Terminal TypeBarrel - Long, Two Hole
Tongue Width1.84 "
Trade NameHYLUG?
TypeLong Barrel, Tin Plated
UL ListedYes
UNSPSC39121405
Voltage - Maximum35000
Volts600 V
Wire Size700 kcmil
Wire Size (kcmil)700 kcmil
Wire Strip Length2.875 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com93399627.861In StockBURNDY27.86 @ 1
thumbzoomZoroG70243808566.871In Stock59Burndy66.87 @ 1
Graybar9831837270.1681In StockBurndy70.168 @ 1
thumbzoomusmegastore.comYA382N90.071In StockBurndy90.07 @ 1
thumbzoomGalcoYA382N-BURN121.410In StockBurndy0.06121.4 @ 10
