Bussman FRS-R-400 T23

B01130LPEU

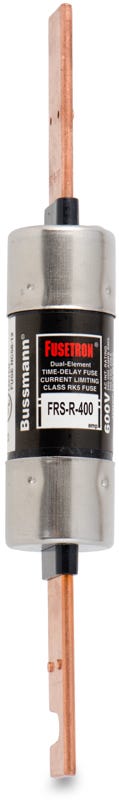

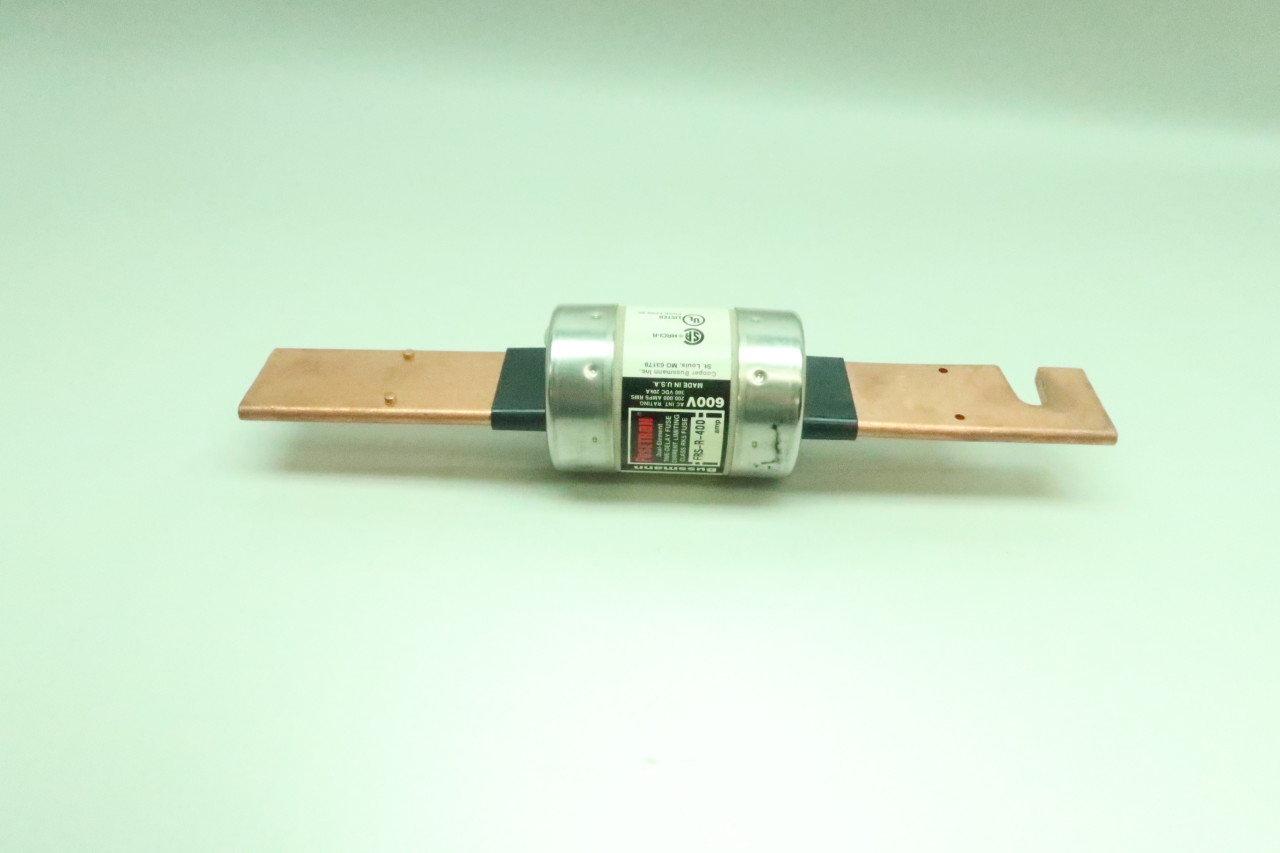

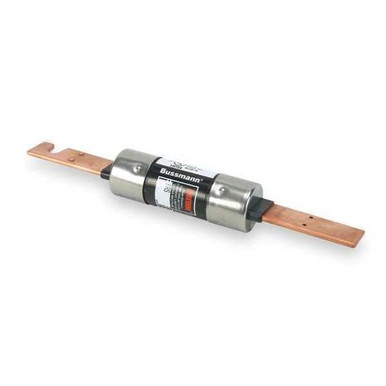

Bussman Frs-R-400 T23 Fusetrone Time-Delay Fuse 600 Vac, 300Vdc Frs-R-400 T23

Bussman Frs-R-400 T23 Fusetrone Time-Delay Fuse 600 Vac, 300Vdc Frs-R-400 T23zoom

Attributes

Key Value
AC Voltage Rating600V AC
ActuatorNo
Alarm ContactNo
Amperage Rating400 Amp
amperage rating400
Amps400A, 400
ApplicationCombination Starters;Mo.
ApplicationsElectrical, Industrial
Approval AgencyCE, CSA, UL
ApprovalsCE, CSA, UL
ASINB01EK95RUY
Batteries Included?No
Batteries Required?No
Body MaterialFiberglass
Body StyleBlade, Cylindrical
BrandEaton, Eaton Bussmann
Brand NameBussmann
Breaking Capacity @ Rat.200kA AC, 20kA DC
Carton1
Category DescriptionFuses & Fuse Accessories
Characteristictime delay
ClassRK5, Class RK5
classRK-5
ClassificationFuses & Fuse Accessories
Color CodeNo
Compatible Fuse Block S.1BR, R600
connectionBlade End X Blade End
Connection TypeBlade End X Blade End
ConstructionFiberglass
Country of OriginMX - Mexico
Country Of OriginMexico
Current Rating400 A
current rating400.000 a
Current Rating (Amps)400A
Current Stock197
DC Voltage Rating300V DC
Description400A 600V TD Class RK5 .
Diameter2.34 in, 2-11/32"
Diameter (in)2.34 "
Dimensions0.5625 x 2 in
dimensions5.5000 IN X 1.0600 IN X.
ECCNEAR99
ElementDual
elementDual
Element TypeDual
Energy Star FlagNo
Equivalent Brand and Se.Bussmann FRS-R, Edison .
Equivalent SeriesECSR, FLSR, FRS-R, TRS-R
extra long descriptionBUSS FRS-R-400 FUSETRON.
Family / Stylefrs
Family SeriesBussmann Fuses, FRS-R S.
Features-, Advanced protection,.
Fits Fuse Block StyleRejection
Fuse Amps400A
Fuse ClassRK5, RK5 Class
Fuse Interrupt Rating200 kAIC at 600 Vac|20 .
Fuse Size11-5/8" L x 2-11/32" dia
Fuse Speedtime delay
Fuse TypeDual Element, Cartridge
fuse typetime delay
Gross Weight2.553 lbs
GTIN00051712508537
Gtin51712508537
Height1.06 in.
Indicating / Nonindicat.Nonindicating
IndicationNon-Indicating
International ShippingNo
interrupt rating200 kAIC (RMS Symmetric.
Interrupt Rating200 kA @ 600 V, 200 Kil.
Interrupt Rating AC200 kA
Interrupt Rating DC20 kA
ItemFuse
Item NameTime Delay Fuse
Item NumberFRS-R-400
item per pack1
Lead TimeExpected to ship in 1-2.
Length5.5 in., 11-5/8"
Length (Straight Wirewa.11 5/8 in
Long DescriptionTime Delay Fusetron Fus.
Made in USAyes
ManufacturerBussman, Bussmann
Manufacturer NameBussmann
Manufacturer Part NumberFRS-R-400
Manufacturers Part Numb.FRS-R-400
mediayes
MfrEaton - Bussmann Electr.
MountingBlade, Holder
mounting typeHolder
Mounting TypeHolder
MpnFRS-R-400
Net Weight2.25 lbs
nsn5920-01-234-1323
OpeningTime-Delay, Slow-Blow
Operating Temperature-
Overall Length11.63 in
packagebulk
Package / CaseCartridge, Non-Standard
package quantity1 ct
Package TypeSingle Slotted
Part NumberFRS-R-400
Part StatusActive
PhaseNo
Primary TypeSingle Use Fuses
Product SeriesFRS-R
Product TypeFusetron Fuse
Rated Voltage600V ac/300V dc
Rejection / NonrejectionRejection
Response Time10 sec at 500%, Slow Bl.
RoHSNo
RoHS FlagContact manufacturer
seriesfrs
SeriesFRS-R, FRS Series
ShapeRectangular
Short DescriptionFusetron Fuse, 400 A, 6.
Size2.34 In Diameter X 11.6.
Size / Dimension2.340" Dia x 11.630" L .
SKUZO-G2909672
Special FeaturesRenewable
SpeedTime Lag, time delay
standardCE Marked
StandardsCE, CSA Certification C.
Standards MetUL Listed;STD. 248-12;C.
sub brandBussmann series
Sub BrandFusetron?
SubCategoryElectrical
Terminal ConnectionBlade
Terminal TypeBlade
TerminationBlade
Trip IndicatorNo
TypeFuse, Rejection, Curren.
UNSPSC39121606 - Cartridge fu.
Upc051712508537
UPC051712508537, 051712508.
UPC Code051712508537
Visual IndicationNonindicating
Voltage (AC)600 VAC
Voltage Rating600 V ac;300 V dc, 600 .
voltage rating600.0 v
Voltage Rating - AC600 V
Voltage Rating - DC300 V
Volts AC600
Volts DC300
Weight2.32 lb
Weight per each2.32
Width1.06 in.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD75635342.41In StockCOOPER BUSSMANN42.4 @ 1
Monarch Electric5897880.5611In StockBussmann80.561 @ 1
simplybreakers.comFRS-R-400149.991In StockBussmann149.99 @ 1
thumbzoommostelectric.comFRS-R-400150.871In StockCOOPER BUSSMANN150.87 @ 1
thumbzoomgalesburgelectric.comFRS-R-400153.761In StockBussmann153.76 @ 1
thumbzoomAllfusesFRS-R-400155.341583Bussmann155.34 @ 1
thumbzoomturtle.comBUS FRS-R-400186.981In StockEaton186.98 @ 1
AmazonTPB018JZJDFA189.111In Stock2Bussmann189.11 @ 1
thumbzoomsuperbreakers.comFRS-R-400208.81In StockEaton Bussmann208.8 @ 1
thumbzoomKelly HayesFRS-R-400209.21In StockBUSSMANN209.2 @ 1
Onlinecomponents.comFRS-R-400232.2213BUSSMANN / EATON232.22 @ 1
thumbzoomRaptor SuppliesAE7RAU241.2582121In StockBUSSMANN241.258212 @ 1
thumbzoombscsource.comFRSR400247.291In StockCooper Bussmann247.29 @ 1
AmazonB01EK95RUY259.01In StockBussman259.0 @ 1
thumbzoomAI ConsolidatedFRS-R-400-BUSSMANN266.111In StockBussmann Eaton Cooper Fuses2.25266.11 @ 1
thumbzoomTedss2026002211268.541In StockCOOPER BUSSMANN268.54 @ 1
thumbzoomFederal ConnectorsFRSR400@BUS268.54110BUSSMANN268.54 @ 1
WaldomEATON FRS-R-400271.411In StockEaton271.41 @ 1
Graybar88050746272.2384118Bussmann (Eaton)272.2384 @ 1
thumbzoomZoroG2909672287.021239Eaton Bussmann2.3287.02 @ 1
thumbzoomGalcoFRS-R-400-BUSS287.0213Bussmann2.553287.02 @ 1
thumbzoomPlatt.com0458082312.78168Eaton/Bussmann Series312.78 @ 1
steinerelectric.com5162316.721In StockBUSSMANN316.72 @ 1
thumbzoomDigi-Key2041-1052-ND339.711In StockEaton - Bussmann Electrical Division339.71 @ 1
thumbzoomsimsupply.comZO-G2909672339.761197Eaton Bussmann339.76 @ 1
thumbzoomRadwellFRS-R-400420.01107BUSSMANN FUSETRON420.0 @ 1
thumbzoomElliott ElectricFRSR400422.391In StockEaton Bussmann Series2.32422.39 @ 1
thumbzoomWalker IndustrialFRS-R-400423.121In Stock17Cooper Bussmann423.12 @ 1
thumbzoomkempstoncontrols.co.ukFRS-R-400442.928713511Bussmann442.9287135 @ 1
standardelectricsupply.com7730483.571In StockBussmann483.57 @ 1
thumbzoomNational Supply Network75908855484.623In StockCooper Bussmann484.62 @ 3
us.rs-online.com71274915580.441In StockBussmann by Eaton580.44 @ 1
thumbzoomNewark94F2531603.781In StockEATON BUSSMANN603.78 @ 1
Airline HydraulicsBUSSMANN FRS-R-400732.841In StockCooper Bussmann732.84 @ 1
thumbzoomCarlton Bates Company051712508531572.11In StockEATON BUSSMANN SERIES1572.1 @ 1
