- mpnC15922
- brandname: CLEVELAND
- manufacturername: CLEVELAND

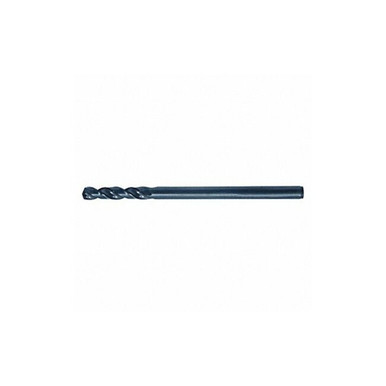

Cleveland 3780 Cobalt Steel Jobbers' Length Drill Bit, Short Flute, Black Oxide, Round Shank, 135 Degree Split Point, Wire Size #25 (Pack of 10)
- Brand: Cleveland
- PartNumber: C15922
- Model: C15922
- Size: #25
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | Alloy Steel, Tool Steel. |
| Bit Dia. | #25 |
| Brand | Cleveland |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 47 |
| Cutting Depth | 1 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Decimal Equivalent | 0.1495, 0.1495" / 3.80mm |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter Wire | 25 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #25 |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.031 in |
| Drill Size - Decimal In. | 0.1495 in |
| Drill Size - Wire | #25 |
| Drilling Length | 1" |
| Finish | Black Oxide/Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 1 in |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Hand of Spiral Cut | RHS / RHC |
| Helix Angle | 35 Degrees to 45 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Length of Flute | 1.0000" / 25.40mm |
| List Number | 3780 |
| List Style | 3780 |
| Material | M42 HSS-Co 8, HSS-CO 8%. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 19/32 in |
| Measurement System | Wire |
| Mpn | C15922 |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Overall Length | 3.0000" / 76.20mm, 3 in |
| Point | 135? Split |
| Point Angle | 135 deg |
| Point Type | Split Point, Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P, S |
| Series | 3780, Q-AMD? 3780 |
| Shank | Straight |
| Shank Dia. | 9/64 in |
| Shank Length | 2 in |
| Shank Shape | Straight |
| Shank Size | 0.1495", 0.1495" / 3.80. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G3063912 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 3780 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | #25 |
| Type | Type D Heavy Duty Jobbe. |
| UPC | 697334159223 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6111488 | 2.78 | 13 | 10 | | Cleveland | | 2.78 @ 13 |
 | Megadepot | C15922 | 3.6 | 1 | 10 | | Cleveland | | 3.6 @ 10 |
 | usmegastore.com | C15922 | 3.63 | 1 | 10 | | Cleveland | | 3.63 @ 10 |
 | sustainablesupply.com | C2766185 | 3.83 | 1 | 10 | | Cleveland | 0.01 | 3.83 @ 10 |
 | Zoro | G3063912 | 4.03 | 1 | 41 | | Cleveland | 0.01 | 4.03 @ 10 |
 | National Supply Network | 68302652 | 5.789 | 10 | 10 | | Cleveland | | 5.789 @ 10 |
 | simsupply.com | ZO-G3063912 | 9.99 | 1 | 47 | | Cleveland | | 9.99 @ 10 |
