FAG 3205-BD-2HRS-TVH

B019FF6QDU

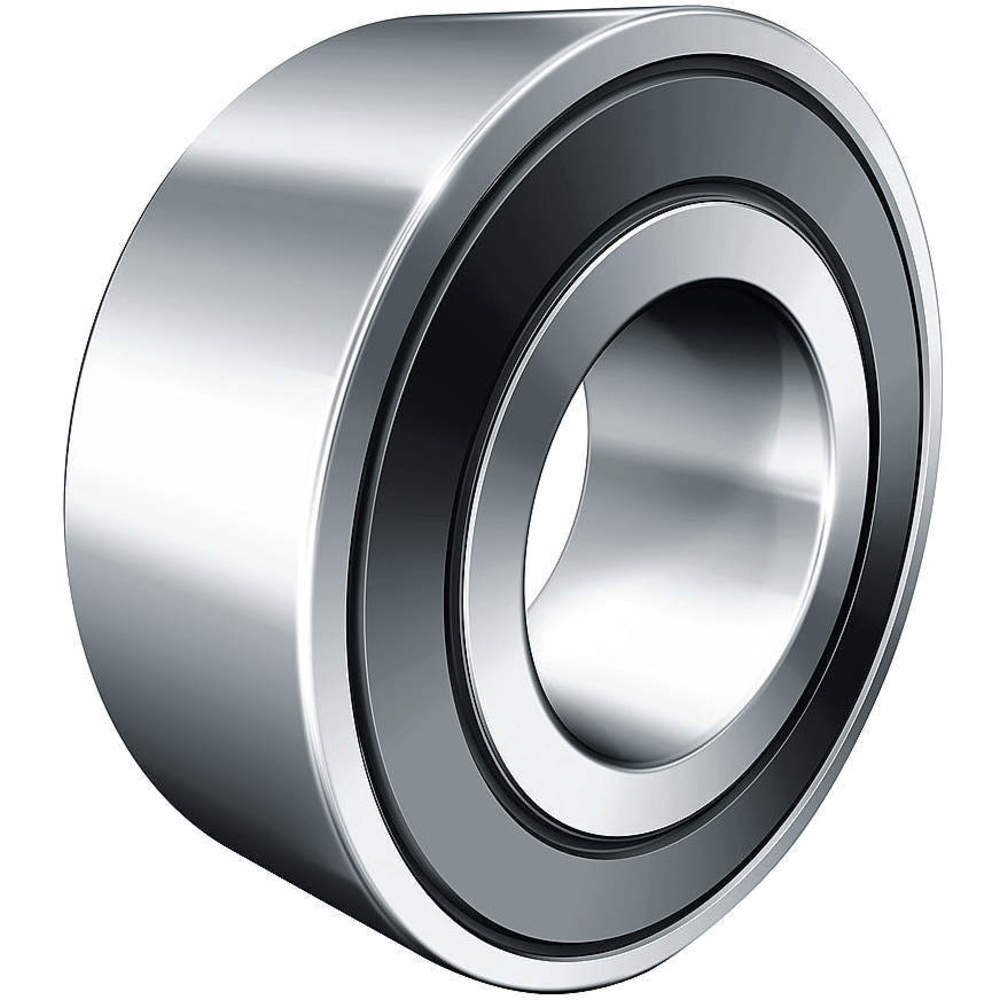

FAG 3205-B-D-2HRS-TVH Double Row Angular Ball Bearings, 25 mm ID, 52 mm OD 20.6 mm Width

FAG 3205-B-D-2HRS-TVH Double Row Angular Ball Bearings, 25 mm ID, 52 mm OD 20.6 mm Widthzoom

Attributes

Key Value
ABEC Tolerance3
Alternate Mfr Part Numb.1371504
AvailabilityIn Stock, ships within .
Bearing TypeAngular Contact Ball
Bore Dia.25 mm
Bore Diameter25 mm
Bore TypeParallel
BrandFag Bearings
Cage MaterialPA66
Closure TypeSealed
Contact Angle (Degree)30
Current Stock4
Dynamic Load Capacity (.4,946
Dynamic Load Capacity (.22,000
Dynamic Load Rating22000 N
Housing Fillet Radius1 mm
Inner Diameter0.984" (25mm)
International ShippingNo
ItemAngular Contact Ball Be.
LubricationFuchs Renolit GA3
MaterialSteel, HAWA
Max. RPM14,300 RPM
Maximum Speed14,300 RPM
Minimum Temperature-20 Degrees C
Mpn3205-BD-2HRS-TVH
Outside Dia.52 mm
Outside Diameter52 mm
Overall Width20.6 mm
Ring MaterialAlloy Steel
Seal MaterialAcrylonitrile-Butadiene.
Shaft Fillet Radius1 mm
SKUCU-333250483136
Static Load Capacity (L.3,417
Static Load Capacity (N)15,200
Static Load Rating15200 N
SubCategoryPower Transmission
Temp. Range (F)-68 Degrees to 248 Deg.
TypeDouble Row
Width20.6 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com7209035950.881In StockFAG Bearings (Schaeffler)50.88 @ 1
thumbzoomZoroG879793256.821In StockFag Bearings0.456.82 @ 1
RS Delivers137-150461.51In StockFAG61.5 @ 1
thumbzoomsustainablesupply.comC164692079.681In StockFag Bearings0.4579.68 @ 1
thumbzoomsimsupply.comCU-333250483136134.351In StockFag Bearings134.35 @ 1
thumbzoomRaptor SuppliesAG2YXX137.0988451In StockFAG BEARINGS137.098845 @ 1
