Jet 321138

mpn321138
brandname: Jet
manufacturername: Jet

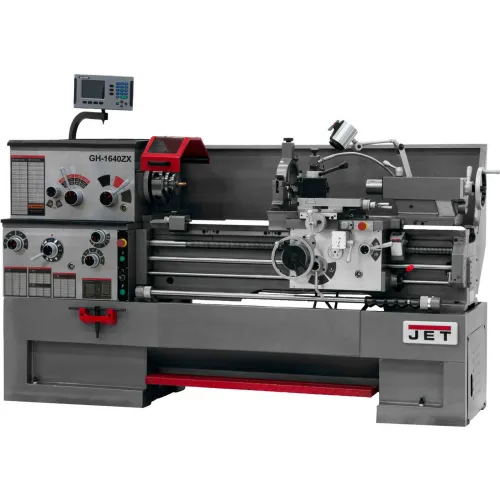

Jet 321138 GH-1640ZX 16 x 40 Spindle Bore Geared Head Lathe w/Newall DP700 DRO

Brand: Jet
PartNumber: 321138
PackageQuantity: 1
Binding: Misc.
Manufacturer: JPW Industries
Label: JPW Industries

Attributes

Key	Value
Bed Width	13 3/8 in
Carriage Travel (In.)	35 </td
Compound Slide Travel (.	5-1/8 </td
Condition	New
Country of Origin (subj.	China
Cross Slide Travel (In.)	9 </td
Digital Readout	Newall DP700 </td
Distance Between Centers	40 in
Distance Between Center.	40 </td
Drive	Geared Head </td
Features	Corner Radius Precision.
Finish - Machining	Chrome
Follow Rest Capacity (I.	1/2 - 3-1/2 </td
Gap Length	12 1/4 in
Horsepower	7-1/2 HP, 7.5 HP
Includes	10 in 3-jaw scroll chuc.
Item	Lathe
Length of Gap (In.)	12-1/4 </td
Machine Type	Engine lathe
Manufacturer	Jet
Max Tool Size (In.)	1 x 1 </td
Max. Cross Feed	0.0360 IPR
Max. Metric Thread	20.00mm
Max. Spindle Speed	1800 RPM
Min. Cross Feed	0.0006 IPR
Min. Metric Thread	0.05mm
Min. Spindle Speed	25 RPM
Min. Threads per Inch	1-5/8
Motor (HP)	7-1/2 HP, 230/460, 3 Ph.
Motor Phase	3 Ph
Number of Inch Threads	61, 61 </td
Number of Longitudinal .	122 </td
Number of Metric Threads	24, 24 </td
Number of Spindle Speeds	12 </td, 12
Overall Dimensions (L x.	96 x 44 x 66 </td
Overall Length	7 in
Phase	3
Prewired (V.)	230 </td
Range of Cross Feeds (I.	.0006 - .0365 </td
Range of Inch Threads (.	1-5/8 - 72 </td
Range of Longitudinal F.	.0015 - .0913 </td
Range of Metric Threads	.05 - 20 </td
Range of Spindle Speeds.	25 - 1,800 </td
Size	16 x 40 </td
SKU	321138
Spindle Bore	3 1/8 in
Spindle Bore (In.)	3-1/8 </td
Spindle Mount	D1-8 </td
Spindle Taper with Slee.	MT-7 (MT-5) </td
Stationary type	Engine - Large Spindle .
Steady Rest Capacity (I.	3/8 - 7 </td
Style (Type)	Engine - Large Spindle .
Swing Over Bed	16 in
Swing Over Bed (In.)	16 </td
Swing Over Cross Slide	10 in
Swing Over Cross Slide .	10 </td
Swing Through Gap (In.)	25-7/8 </td
Tailstock Spindle Trave.	5 </td
Tailstock Taper	5 in
Taper in Tailstock Spin.	MT-4 </td
Voltage	230/460V
Warranty	2 Year
Weight (Lbs.)	5,475 </td
Width of Bed (In.)	13-3/8 </td

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
AmazonSC	B001BAGZPW	24199.0	1	In Stock		Jet		24199.0 @ 1
Zoro	G1939898	24859.0	1	In Stock	10	Jet	6000.0	24859.0 @ 1
internationaltool.com	JET-321138	26139.0	1	In Stock		Jet		26139.0 @ 1
Global Industrial	WBB0230914	32299.0	1	In Stock	24	JET		32299.0 @ 1
beavertools.com	JT321138	32299.0	1	In Stock		Jet		32299.0 @ 1
JB Tools	JB-DS-WLT-321138	32299.0	1	In Stock		Jet		32299.0 @ 1
elitemetaltools.com	2212	32299.0	1	In Stock		JET		32299.0 @ 1
ToolUp.com	JET 321138	32299.0	1	In Stock		Jet		32299.0 @ 1
AceTool	JET-321138	32299.0	1	In Stock		Jet	5475.0	32299.0 @ 1
burnstools.com	321138	32299.0	1	In Stock		Jet		32299.0 @ 1
toolsplus.com	JET321138	32299.0	1	In Stock		JET		32299.0 @ 1
imsbolt.com	321138	32299.0	1	In Stock		JET		32299.0 @ 1
