Jet 321174

mpn321174
brandname: Jet
manufacturername: Jet

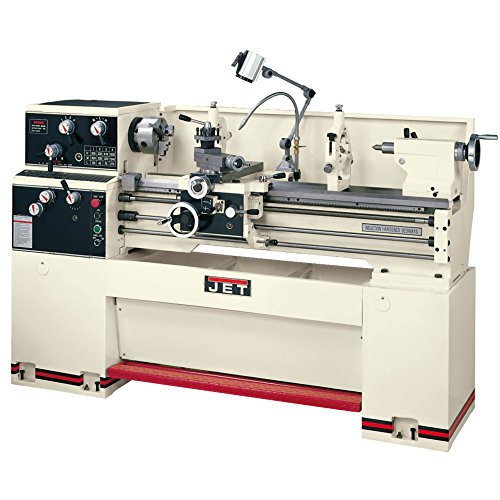

Jet GH-1440W-1 With ACU-RITE VUE DRO With Taper Attachment and Collet Closer (321174)

Jet GH-1440W-1 With ACU-RITE VUE DRO With Taper Attachment and Collet Closer (321174)

zoom

Brand: Jet
PartNumber: 321174
PackageQuantity: 1
Binding: Misc.
Manufacturer: Jet
Label: Jet

Attributes

Key	Value
Accessory 1	Taper Attachment </td
Accessory 2	Collet Closer </td
Carriage Travel (In.)	37-1/2 </td
Compound Slide Travel (.	3-1/2 </td
Cross Slide Travel (In.)	6-3/8 </td
Digital Readout	ACU-RITE VUE </td
Distance Between Center.	40 </td
Drive	Geared Head </td
Follow Rest Capacity (I.	2-3/4 </td
Length of Gap (In.)	9-3/8 </td
Max Tool Size (In.)	5/8 x 5/8 </td
Motor (HP)	3 HP, 230V, 1Ph </td
Number of Inch Threads	40 </td
Number of Longitudinal .	40 </td
Number of Metric Threads	22 </td
Number of Spindle Speeds	12 </td
Overall Dimensions (L x.	78 x 38 x 59 </td
Prewired (V.)	230 </td
Range of Cross Feeds (I.	.0003 - .0103 </td
Range of Inch Threads (.	4 - 112 </td
Range of Longitudinal F.	.0012 - .0294 </td
Range of Metric Threads	.45 - 7.5 </td
Range of Spindle Speeds.	40 - 1,800 </td
Size	14 x 40 </td
Spindle Bore (In.)	1-1/2 </td
Spindle Mount	D1-4 </td
Spindle Taper with Slee.	MT-5 (MT-3) </td
Steady Rest Capacity (I.	3-3/4 </td
Style (Type)	Engine - Geared Head .
Swing Over Bed (In.)	14 </td
Swing Over Cross Slide .	8-1/2 </td
Swing Through Gap (In.)	20 </td
Tailstock Spindle Trave.	4-3/4 </td
Taper in Tailstock Spin.	MT-3 </td
Weight (Lbs.)	2,191 </td
Width of Bed (In.)	10-1/2 </td

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AceTool	JET-321174	13199.0	1	In Stock		Jet	2191.0	13199.0 @ 1
