- mpn321484
- brandname: Jet
- manufacturername: Jet

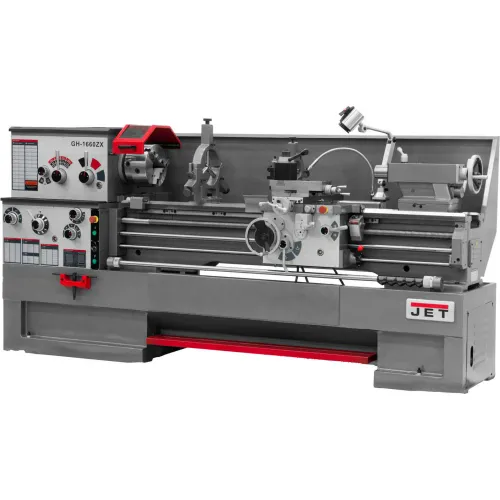

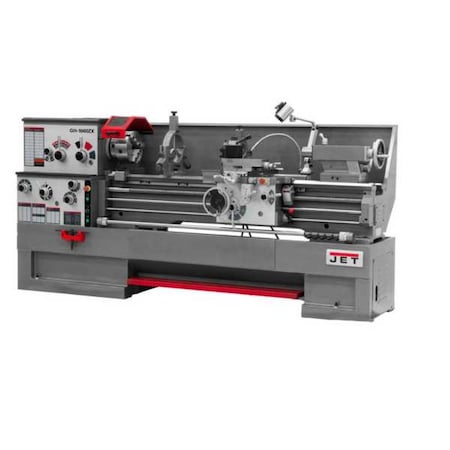

Jet GH-1860ZX With ACU-RITE 200S DRO (321484)
- Brand: Jet
- PartNumber: 321484
- PackageQuantity: 1
- Manufacturer: Jet
- Label: Jet
Attributes
| Key | Value |
|---|
| Application | Turning |
| Bed Width | 8-3/4 in, 8 3/4 in |
| Bed Width (In.) | 13-3/8 |
| Carriage Travel (In.) | 55, 55-9/16 </td |
| Catalog Page | N/A |
| Compound Slide Travel (. | 5-1/8 </td |
| Compound Travel (In.) | 5-1/8 |
| Condition | New |
| Country of Origin | China |
| Cross Slide Travel (In.) | 9 </td |
| Digital Readout | ACU-RITE 200S </td |
| Distance Between Centers | 60 in |
| Distance Between Center. | 60, 60 </td |
| Drive | Geared Head </td |
| Features | 3-1/8 in Bore Spindle i. |
| Follow Rest Capacity (I. | 1/2 - 3-1/2 </td |
| Frequency | 60 Hz |
| Gap Length | 12-1/4 in, 12 1/4 in |
| Gap Length (In.) | 12-1/4 |
| Horsepower | 7.5 HP, 7-1/2 hp, 7 1/2. |
| Includes | (5) 12 in Faceplates; 1. |
| Item | Lathe |
| Item? | 42W807 |
| Length of Gap (In.) | 12 </td |
| Manufacturer | Jet |
| Max Tool Size (In.) | 1 x 1 </td |
| Max. Cross Feed | 0.0360 in |
| Max. Metric Thread | 20 mm |
| Max. Spindle Speed | 1,800 RPM |
| Max. Threads per Inch | 72 |
| Mfr. Model? | 321484 |
| Min. Cross Feed | 0.0006 in |
| Min. Metric Thread | 0.05 mm |
| Min. Spindle Speed | 25 RPM |
| Min. Threads per Inch | 1-5/8 |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph. |
| Motor HP | 7-1/2 |
| Motor Phase | 3 Ph |
| Number of Inch Threads | 61, 61 </td |
| Number of Longitudinal . | 122 </td |
| Number of Metric Threads | 24, 24 </td |
| Number of Spindle Speeds | 12 </td, 12 |
| Number of Threads (In.) | 61 |
| Number of Threads (mm) | 24 |
| Overall Dimensions (L x. | 115 x 44 x 66 </td |
| Overall Height | 116-1/2 in, 116 1/2 in |
| Overall Length | 116-1/2 in, 116 1/2 in |
| Overall Width | 40 in |
| Phase | Three |
| Prewired (V.) | 230 </td |
| Range of Cross Feeds (I. | .0006 - .0365 </td |
| Range of Inch Threads (. | 1-5/8 - 72 </td |
| Range of Longitudinal F. | .0015 - .0913 </td |
| Range of Metric Threads | .05 - 20 </td |
| Range of Spindle Speeds. | 25 - 1,800 </td |
| Size | 18 x 60 </td |
| SKU | 321484 |
| Sound Level | 88 dB |
| Spindle Bore | 3-1/8 in |
| Spindle Bore (In.) | 3-1/8, 3-1/8 </td |
| Spindle Mount | D1-8 </td |
| Spindle Nose Type | D1-4 Camlock |
| Spindle Speed (RPM) | 25 to 1800 |
| Spindle Taper with Slee. | MT-7 (MT-5) </td |
| Stationary type | Engine - Large Spindle . |
| Steady Rest Capacity (I. | 3/8 - 7-3/4 </td |
| Style (Type) | Engine - Large Spindle . |
| Swing In Gap | 27-1/2 in |
| Swing Over Bed | 18 in |
| Swing Over Bed (In.) | 18, 18 </td |
| Swing Over Cross Slide | 11 in |
| Swing Over Cross Slide . | 11 </td |
| Swing Through Gap (In.) | 27-1/2 </td |
| Tailstock Spindle Trave. | 5 </td |
| Tailstock Taper | MT3 |
| Taper in Tailstock Spin. | MT-5 </td |
| Thread Range (In.) | 1-5/8 to 72 |
| Thread Range (mm) | .05 to 20 |
| UNSPSC | 23171606 |
| Voltage | 230/460V AC |
| Warranty | 2 Year |
| Weight (Lbs.) | 6,245 </td |
| Width of Bed (In.) | 13-1/8 </td |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| internationaltool.com | JET-321484 | 30919.0 | 1 | In Stock | | Jet | | 30919.0 @ 1 |
 | Global Industrial | WBB0230713 | 33699.0 | 1 | In Stock | 24 | JET | | 33699.0 @ 1 |
| elitemetaltools.com | 2309 | 33699.0 | 1 | In Stock | | JET | | 33699.0 @ 1 |
 | JB Tools | JB-DS-WLT-321484 | 33749.0 | 1 | In Stock | | Jet | | 33749.0 @ 1 |
 | AceTool | JET-321484 | 33749.0 | 1 | In Stock | | Jet | 6245.0 | 33749.0 @ 1 |
 | burnstools.com | 321484 | 33749.0 | 1 | In Stock | | Jet | | 33749.0 @ 1 |
| ToolUp.com | JET 321484 | 33749.0 | 1 | In Stock | | Jet | | 33749.0 @ 1 |
 | toolsplus.com | JET321484 | 33749.0 | 1 | In Stock | | JET | | 33749.0 @ 1 |
| imsbolt.com | 321484 | 33749.0 | 1 | In Stock | | JET | | 33749.0 @ 1 |
 | Zoro | G9879441 | 34249.0 | 1 | In Stock | | Jet | 6700.0 | 34249.0 @ 1 |
| Grainger | 42W807 | 37002.86 | 1 | In Stock | | JET | | 37002.86 @ 1 |
