Jet 321830

B0007M6G9A

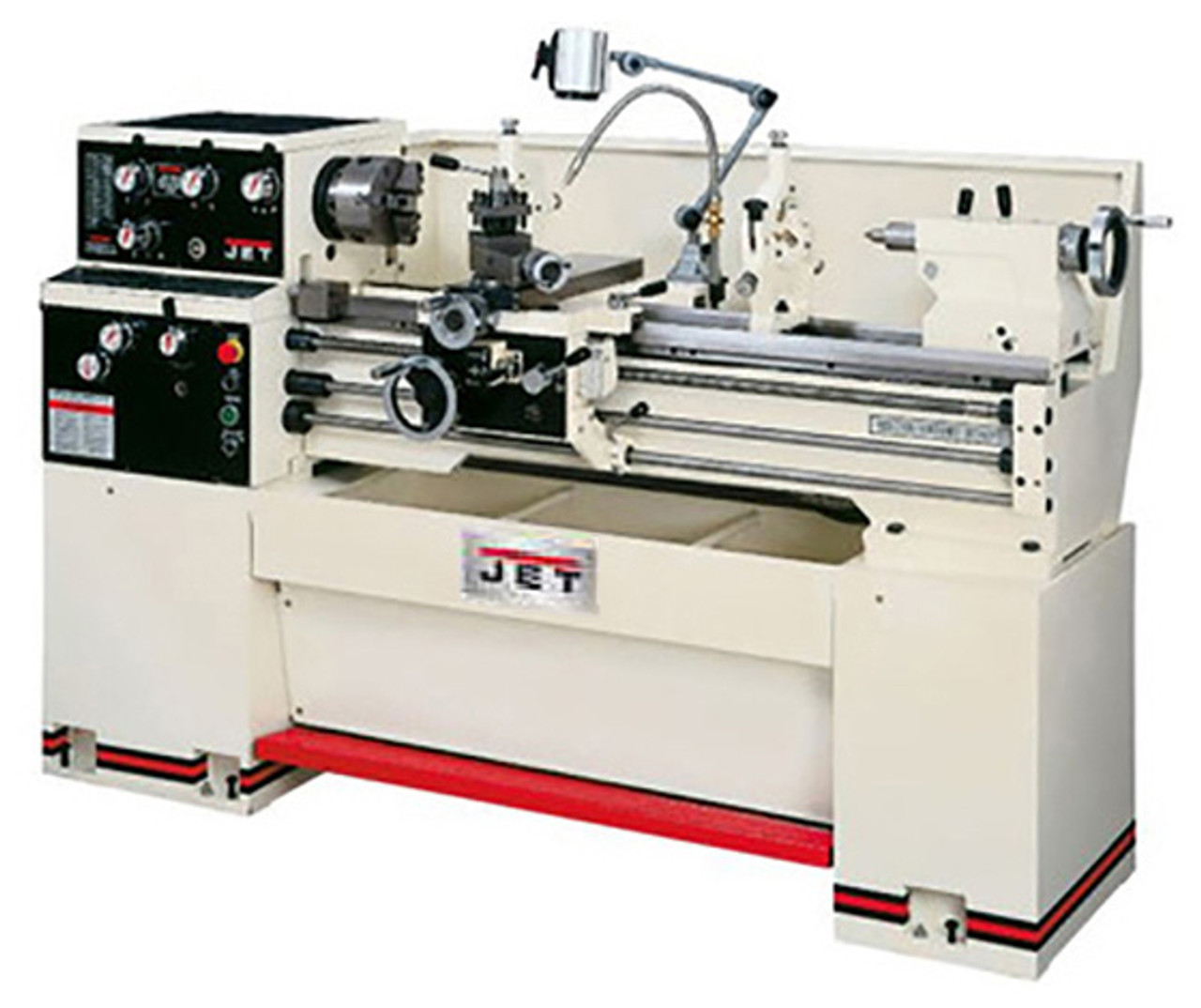

Jet 321830 GH-1440W-1 14-Inch Swing by 40-Inch between Centers 230-Volt 1 Phase Geared Head Engine Metalworking Lathe

Jet 321830 GH-1440W-1 14-Inch Swing by 40-Inch between Centers 230-Volt 1 Phase Geared Head Engine Metalworking Lathezoom

Attributes

Key Value
Carriage Travel (In.)37-1/2 </td
Compound Slide Travel (.3-1/2 </td
Cross Slide Travel (In.)6-3/8 </td
Distance Between Center.40 </td
DriveGeared Head </td
Follow Rest Capacity (I.2-3/4 </td
Length of Gap (In.)9-3/8 </td
Max Tool Size (In.)5/8 x 5/8 </td
Motor (HP)3 HP, 230V, 1Ph </td
Number of Inch Threads40 </td
Number of Longitudinal .40 </td
Number of Metric Threads22 </td
Number of Spindle Speeds12 </td
Overall Dimensions (L x.78 x 38 x 59 </td
Range of Cross Feeds (I..0003 - .0103 </td
Range of Inch Threads (.4 - 112 </td
Range of Longitudinal F..0011 - .0271 </td
Range of Metric Threads.45 - 7.5 </td
Range of Spindle Speeds.40 - 1,800 </td
Size14 x 40 </td
Spindle Bore (In.)1-1/2 </td
Spindle MountD1-4 </td
Spindle Taper with Slee.MT-5 (MT-3) </td
Steady Rest Capacity (I.3-3/2 </td
Style (Type)Engine - Geared Head .
Swing Over Bed (In.)14 </td
Swing Over Cross Slide .8-1/4 </td
Swing Through Gap (In.)20 </td
Tailstock Spindle Trave.4-3/4 </td
Taper in Tailstock Spin.MT-3 </td
Weight (Lbs.)2,081 </td
Width of Bed (In.)10-1/4 </td

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomtoolsplus.comJET3218308999.01In StockJET8999.0 @ 1
thumbzoomAceToolJET-3218309299.01In StockJet2081.09299.0 @ 1
thumbzoompenntoolco.com10196312399.01In StockJet12399.0 @ 1
thumbzoomRadwell32183015450.01In StockJET15450.0 @ 1
