Jet 321961

mpn321961
brandname: JET
manufacturername: JET

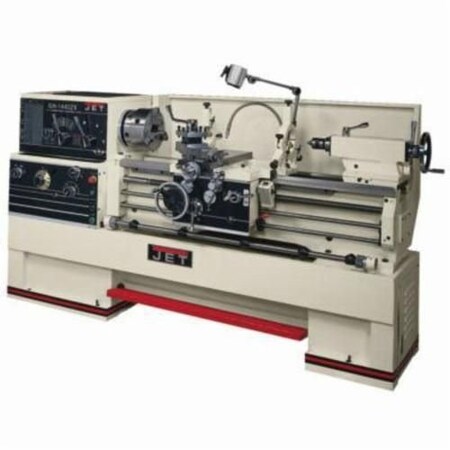

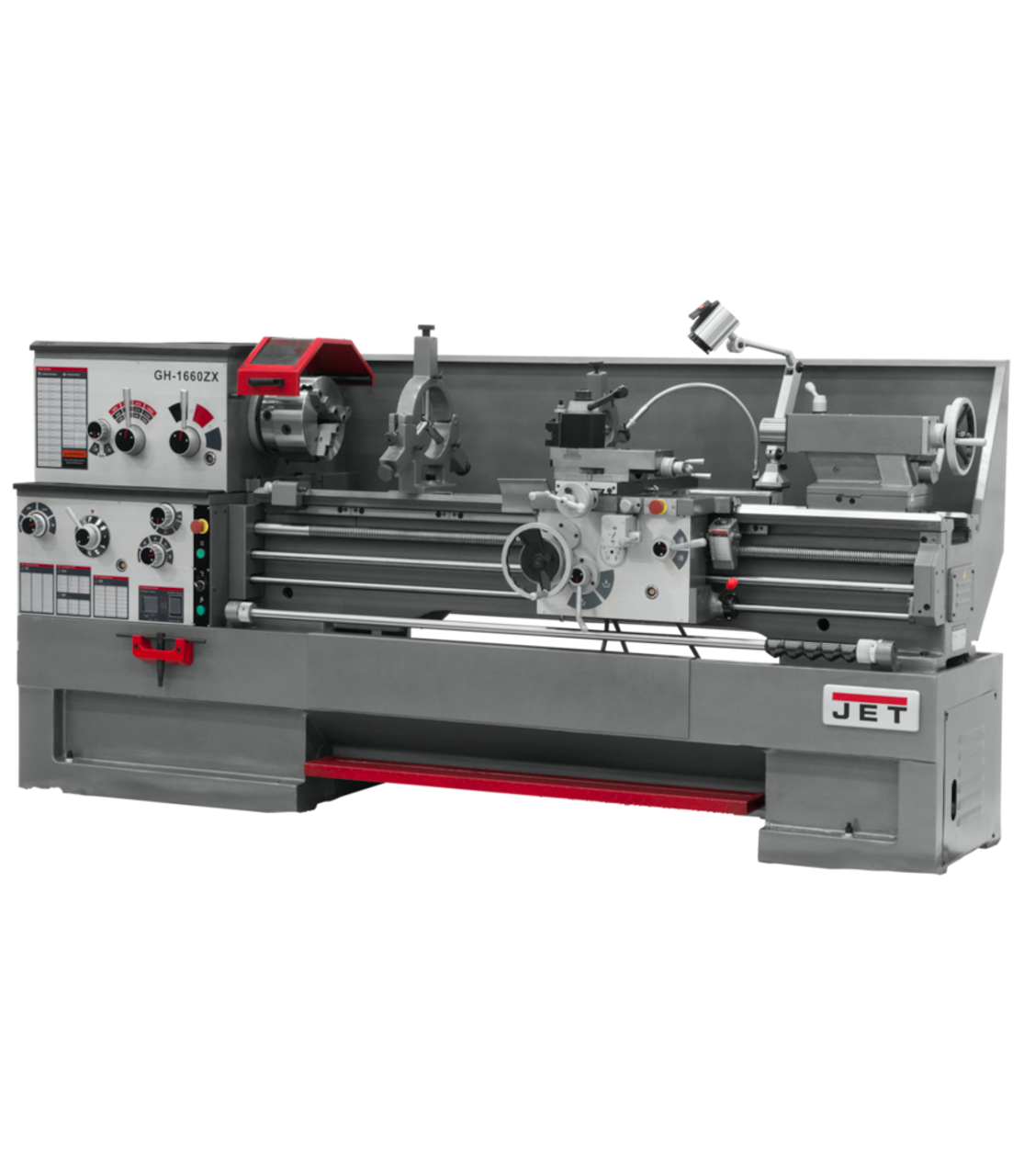

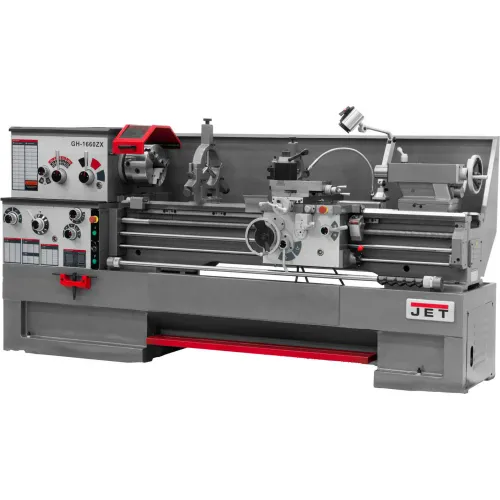

JET ZX Series Large Spindle Bore Lathe with Taper Attachment and Collet Closer - 18in. x 60in. Model Number GH-1860ZX/321961

JET ZX Series Large Spindle Bore Lathe with Taper Attachment and Collet Closer - 18in. x 60in. Model Number GH-1860ZX/321961

zoom

Brand: Jet
PartNumber: 321961
PackageQuantity: 1
Binding: Misc.
Manufacturer: JPW Industries
Label: JPW Industries

Attributes

Key	Value
Accessory 1	Taper Attachment </td
Accessory 2	Collet Closer </td
Carriage Travel (In.)	55-9/16 </td
Compound Slide Travel (.	5-1/8 </td
Condition	New
Cross Slide Travel (In.)	9 </td
Distance Between Center.	60 </td
Drive	Geared Head </td
Follow Rest Capacity (I.	1/2 - 3-1/2 </td
Horsepower	7.5 HP
Length of Gap (In.)	12 </td
Manufacturer	Jet
Max Tool Size (In.)	1 x 1 </td
Motor (HP)	7-1/2 HP, 230/460, 3 Ph.
Motor Phase	3 Ph
Number of Inch Threads	61 </td
Number of Longitudinal .	122 </td
Number of Metric Threads	24 </td
Number of Spindle Speeds	12 </td
Overall Dimensions (L x.	115 x 44 x 66 </td
Package Quantity	1
Prewired (V.)	230 </td
Range of Cross Feeds (I.	.0006 - .0365 </td
Range of Inch Threads (.	1-5/8 - 72 </td
Range of Longitudinal F.	.0015 - .0913 </td
Range of Metric Threads	.05 - 20 </td
Range of Spindle Speeds.	25 - 1,800 </td
Size	18 x 60 </td
SKU	321961
Spindle Bore (In.)	3-1/8 </td
Spindle Mount	D1-8 </td
Spindle Taper with Slee.	MT-7 (MT-5) </td
Stationary type	Engine - Large Spindle .
Steady Rest Capacity (I.	3/8 - 7-3/4 </td
Style (Type)	Engine - Large Spindle .
Swing Over Bed (In.)	18 </td
Swing Over Cross Slide .	11 </td
Swing Through Gap (In.)	27-1/2 </td
Tailstock Spindle Trave.	5 </td
Taper in Tailstock Spin.	MT-5 </td
UPC	66275615902
Warranty	2-Year
Weight (Lbs.)	6,245 </td
Width of Bed (In.)	13-1/8 </td

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	internationaltool.com	JET-321961	36069.0	1	In Stock		Jet		36069.0 @ 1
	elitemetaltools.com	2430	39369.0	1	In Stock		JET		39369.0 @ 1
	beavertools.com	JT321961	39369.0	1	In Stock		Jet		39369.0 @ 1
	Global Industrial	WBB230957	39369.0	1	In Stock	24	JET		39369.0 @ 1
	JB Tools	JB-DS-WLT-JT9-321961	39369.0	1	In Stock		Jet		39369.0 @ 1
	ToolUp.com	JET 321961	39369.0	1	In Stock		Jet		39369.0 @ 1
	AceTool	JET-321961	39369.0	1	In Stock		Jet	6245.0	39369.0 @ 1
	burnstools.com	321961	39369.0	1	In Stock		Jet		39369.0 @ 1
	toolsplus.com	JET321961	39369.0	1	In Stock		JET		39369.0 @ 1
	imsbolt.com	321961	39369.0	1	In Stock		JET		39369.0 @ 1
	Zoro	G008031171	44270.99	1	In Stock		Jet		44270.99 @ 1
