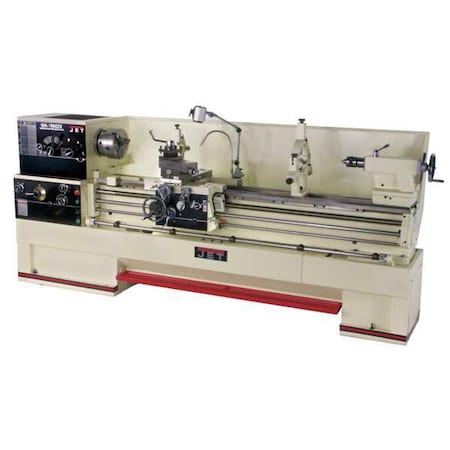

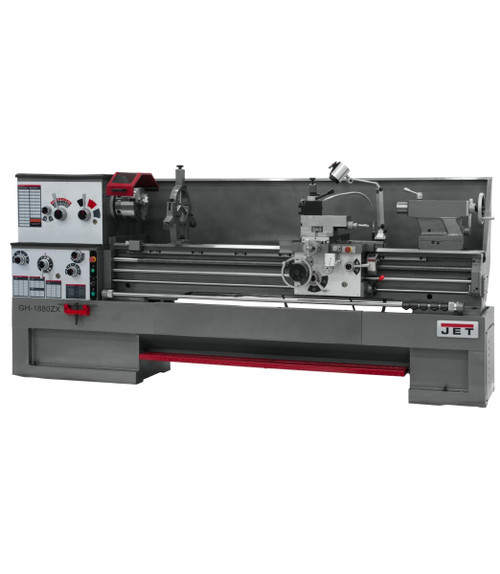

JET GH-1880ZX, 18" x 80" Geared Head Metal Lathe, 3-1/8" Spindle Bore, 3Ph 230/460V (321970)

JET GH-1880ZX, 18" x 80" Geared Head Metal Lathe, 3-1/8" Spindle Bore, 3Ph 230/460V (321970)

zoom

Brand: Jet
PartNumber: 321970
Model: GH-1880ZX
Color: Gray
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: JET
Label: JET

Attributes

Key	Value
Application	Turning
ASIN	B001BAHEG6
Batteries Required?	No
Bed Width	9 1/2 in
Carriage Travel (In.)	74-5/16"
Compound Travel (In.)	5-1/8
Condition	New
Country of Origin (subj.	China
Cross Feed Rates	122
Cross Travel (In.)	9
Distance Between Centers	80 in
Distance Between Center.	80
Features	3-1/8 in Bore Spindle i.
Frequency	60 Hz
Gap Length	12 in
Gap Length (In.)	12
Horsepower	3, 7 1/2 hp
Includes	(5) 12 in Faceplates, 1.
Is Discontinued By Manu.	No
Item	Lathe
Item model number	321970
Item Package Quantity	1
Longitudinal Feed Rates	122
Manufacturer	JET
Max. Cross Feed	0.0360 in
Max. Metric Thread	20 mm
Max. Spindle Speed	1,800 RPM
Max. Threads per Inch	72
Min. Cross Feed	0.0006 in
Min. Metric Thread	0.05 mm
Min. Spindle Speed	25 RPM
Min. Threads per Inch	1 5/8
Motor HP	7-1/2
Number of Inch Threads	61
Number of Metric Threads	24
Number of Spindle Speeds	12
Number of Threads (In.)	61
Number of Threads (mm)	24
Overall Height	136 in
Overall Length	136 in
Overall Width	44 in
Part Number	321970
Phase	Three
Power Source	Corded-electric
SKU	321970
Sound Level	88 dB
Spindle Bore	3 1/8 in
Spindle Bore (In.)	3-1/8
Spindle Nose Type	D1-4 Camlock
Spindle Speed (RPM)	25 to 1800
Spindle Taper	MT-7
Swing In Gap	27 1/2 in
Swing In Gap (In.)	27-1/2
Swing Over Bed	18 in
Swing Over Bed (In.)	18
Swing Over Cross Slide	11 in
Swing Over Cross Slide .	11
Tailstock Taper	MT3
Tailstock Travel (In.)	5
Thread Range (In.)	1-5/8 to 72
Thread Range (mm)	.05 to 20
Voltage	230/460V AC

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TylerTool	JETN321970	99.0	1	In Stock		JET		99.0 @ 1
	Amazon	B001BAHEG6	24799.0	1	In Stock		JET		24799.0 @ 1
	internationaltool.com	JET-321970	31399.0	1	In Stock		Jet		31399.0 @ 1
	penntoolco.com	113687	31999.0	1	In Stock		Jet		31999.0 @ 1
	Global Industrial	WBB0230958	31999.0	1	In Stock		JET		31999.0 @ 1
	beavertools.com	JT321970	31999.0	1	In Stock		Jet		31999.0 @ 1
	JB Tools	JB-DS-WLT-JT9-321970	31999.0	1	4		Jet		31999.0 @ 1
	toolsplus.com	JET321970	31999.0	1	In Stock		JET		31999.0 @ 1
	toolfetch.com	321970	31999.0	1	In Stock		JET		31999.0 @ 1
	burnstools.com	321970	31999.0	1	In Stock		Jet		31999.0 @ 1
	elitemetaltools.com	2431	31999.0	1	In Stock		JET		31999.0 @ 1
	ToolUp.com	JET 321970	31999.0	1	In Stock		Jet		31999.0 @ 1
	imsbolt.com	321970	31999.0	1	In Stock		JET		31999.0 @ 1
	Zoro	G9879414	34699.51	1	In Stock		Jet	6590.0	34699.51 @ 1
