Leeson 117281.00

B00EP2WO76

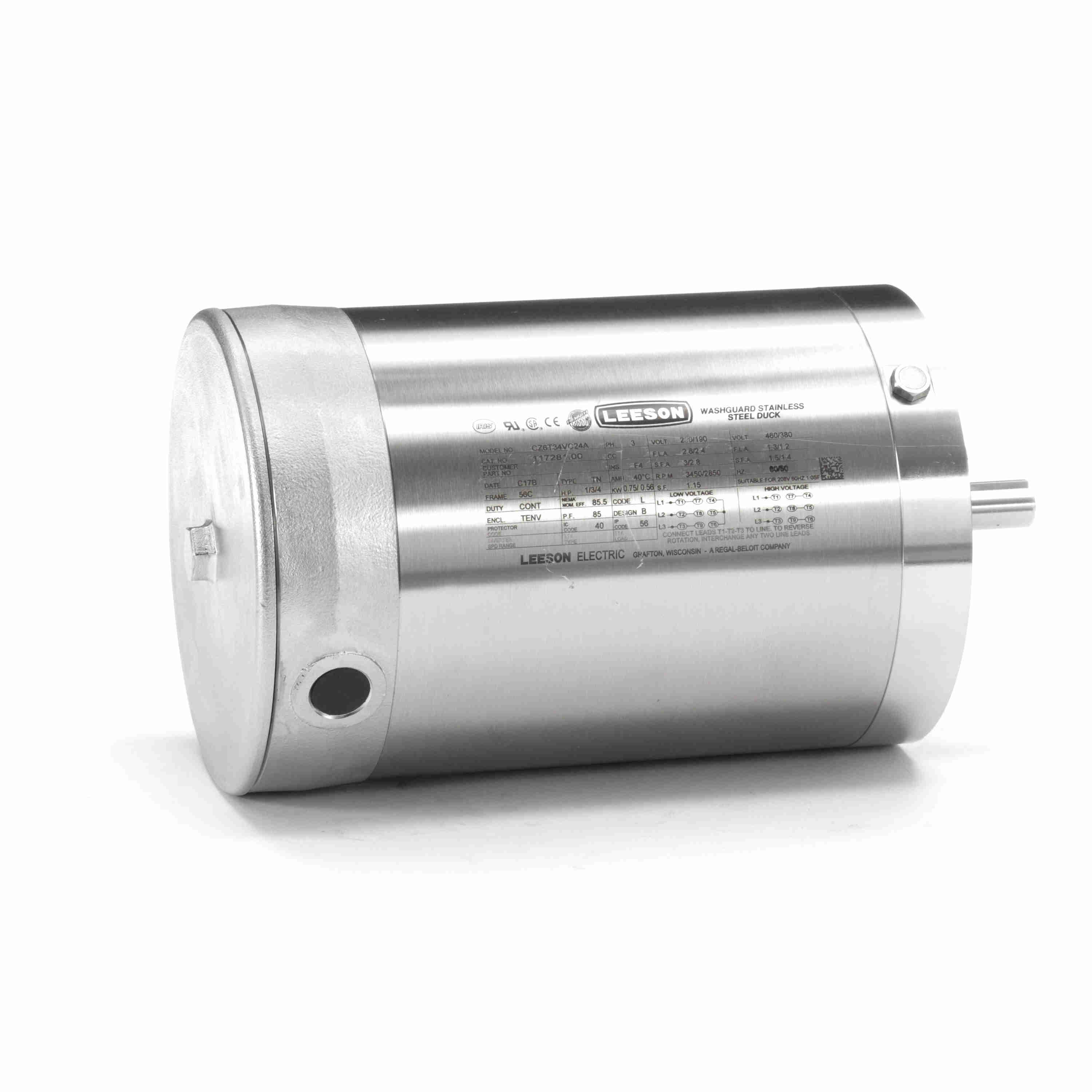

Leeson 117281.00 Premium Washguard Motor, 3 Phase, 56C Frame, Round Mounting, 1HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 117281.00 Premium Washguard Motor, 3 Phase, 56C Frame, Round Mounting, 1HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating2.6/1.3 A
Amps2.6/1.3
Bearing TypeBall
BearingsBall
CategoryElectric Motor
ConstructionRolled Steel
Description:..1HP..3450RPM.56C.TENV.
Dimensions12.22 in L
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency85.5, 85.5%
EnclosureTENV
Enclosure MaterialStainless Steel
Enclosure TypeTENV (Totally Enclosed .
Estimated Weight43.00
FL Amps2.8-2.6/1.3&2.4/1.2
FL Efficiency85.5
Frame56C
Frame MaterialStainless Steel
Frame RemarksWASHDOWN, STAINLESS, FO.
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz50, 60
Horsepower1 hp
HP1
Hz60
Insulation ClassClass F, F
Inverter DutyYes - Constant 6:1
Item ConditionFACTORY NEW
KW0.75
ManufacturerLeeson Electric, LEESON.
MaterialStainless Steel
Maximum Ambient Tempera.40? C
MFG Part #:117281.00
Motor Shell Length7.00"
MountingRound, FOOTLESS
mountingC-face (NO base)
Mounting TypeRound/C-Face/Footless
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6205
Opp. Drive End Bearing .Ball
Overall Length12.22"
Part Number117281.00
Phase3, 3 ph
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM3450, 3600, 3400 - 3600
Service Factor1.15
Shaft Diameter0.625", 0.625
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight43 lbs.
Special FeaturesWashdown Duty Motors
Speed3450 rpm
Speed (RPM)3450
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720928554
Voltage208V, 230V, 460V, 230/4.
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com117281651.01In StockLEESON651.0 @ 1
AmazonTPB0773WP689774.341In Stock3Leeson Electric774.34 @ 1
thumbzoomMRO Supply2526066957.271In StockLeeson957.27 @ 1
thumbzoomemotorpro.com117281.00989.761In StockLeeson43.0989.76 @ 1
thumbzoomDealers Electric117281.001066.161In StockLeeson43.01066.16 @ 1
thumbzoommotorsandcontrol.comLE-117281.001140.27126Leeson Electric43.01140.27 @ 1
us.rs-online.com733967581149.231In StockLeeson1149.23 @ 1
thumbzoomGalco117281.00-LEES1149.231In StockLeeson1149.23 @ 1
kscdirect.comLEE 117281.001199.991In StockLEESON ELECTRIC CORPORATION1199.99 @ 1
thumbzoomZoroG24791241325.01In Stock10Leeson1325.0 @ 1
thumbzoomWalker Industrial117281-001369.831In Stock10Leeson1369.83 @ 1
thumbzoomcbtcompany.com117281.001379.381In StockLeeson Electric1379.38 @ 1
thumbzoomGlobal IndustrialWBB5875451777.01In StockLeeson1777.0 @ 1
thumbzoomRaptor SuppliesAJ2QXE1873.5277861In StockLEESON1873.527786 @ 1
thumbzoompumpproducts.com117281.001895.191In StockLeeson1895.19 @ 1
