Leeson 192204.00

mpn192204.00
brandname: Leeson
manufacturername: Leeson

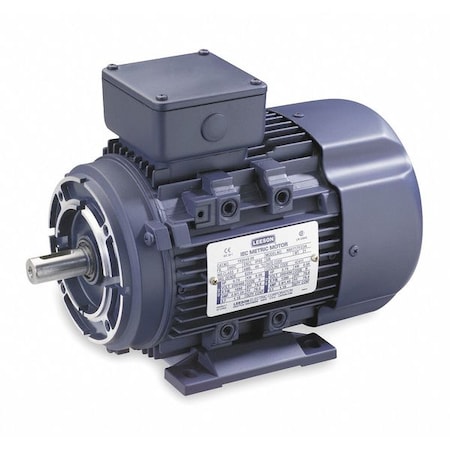

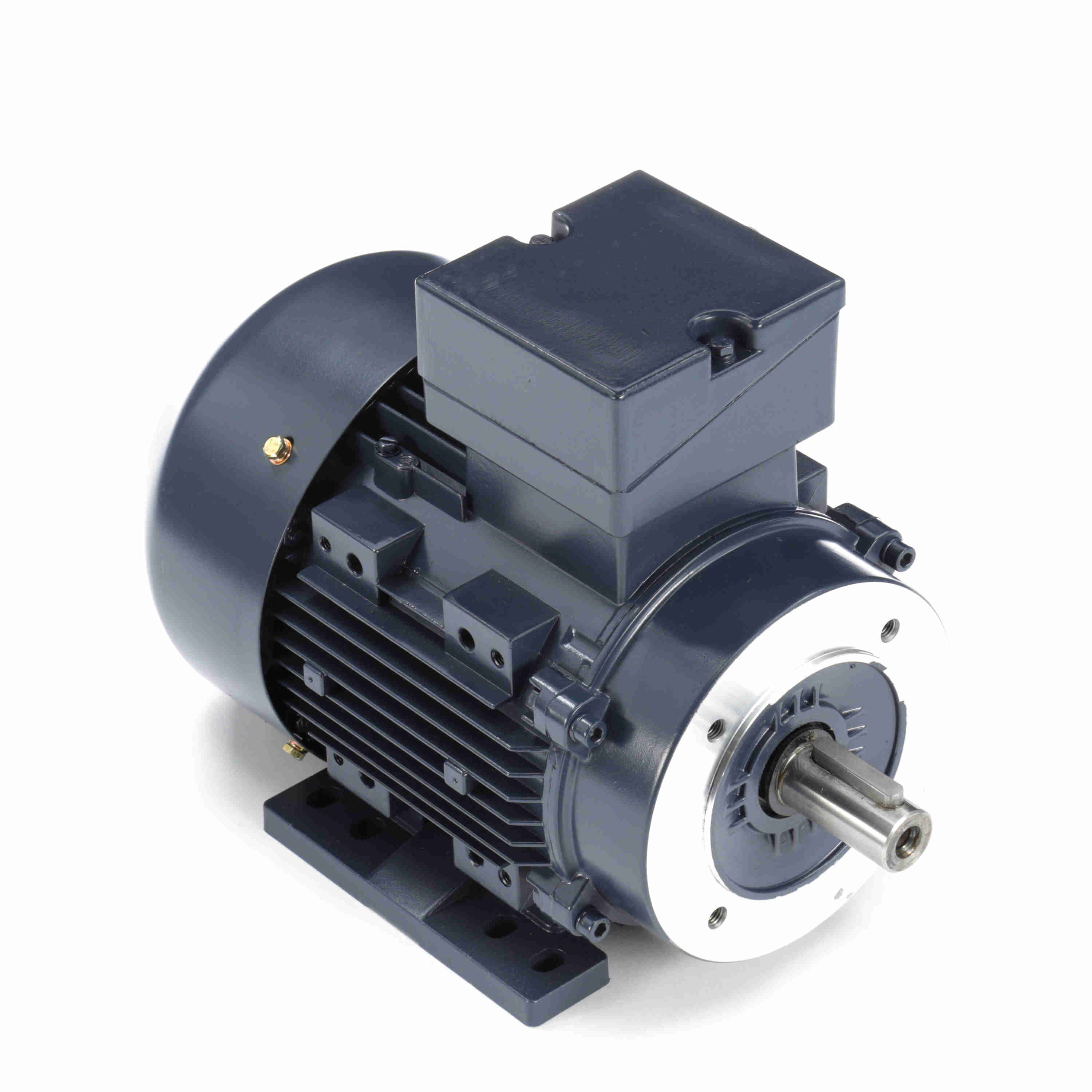

Leeson 192204.00 Rigid Base IEC Metric Motor, 3 Phase, D90S Frame, B3/B14 Mounting, 1 1/2HP, 1800 RPM, 230/460V Voltage, 60/50Hz Fequency

Brand: Leeson
PartNumber: 192204.00
Model: C90T17FZ15 A
Size: 3 Phase
PackageQuantity: 1
Binding: Misc.
Manufacturer: Leeson
Label: Leeson

Attributes

Key	Value
Amperage Rating	4.2/2.1 A
Approvals	CSA, UL
Bearing Type	Ball, 12.61
Category	Electric Motor
CC Number	CC005A
Class/Group	C90T17FZ15
Composition	Aluminum
Country of Origin (subj.	China
Description:	1 1/2HP-1.1KW..1740RPM..
Dimensions	12.83 in L
Duty	Continuous
Duty Cycle	Continuous
Efficiency %	86.5 %
Enclosure	TEFC, Totally Enclosed .
Enclosure Type	Totally Enclosed Fan Co.
Family Series	Leeson Motors, IEC Seri.
Frame	90S, D90S
Frame Material	Aluminum
Frequency Rating	60 Hz
Full Load Amps	4.2/2.1
Full Load Amps @ 50Hz	4.2/2.1
Green Certification or .	NEMA Premium(R) Rated
Gross Weight	0 lbs
Horsepower	1.5 hp, 1-1/2 hp
HP	1 1/2, 1.50
HP @ 50Hz	1 1/2
Hz	60, 60/50
IEC Frame	D90SC
Includes	Repositionable Mounting.
Ins. Class	F
Insulation Class	Class F
Inverter Rated	Yes
Item	Premium Efficiency Metr.
Item Condition	FACTORY NEW
Item Number	192204.00
Kilowatts	1.1 kW
kW	1.12
Length Less Shaft	10 7/8 in
Manufacturer	LEESON ELECTRIC CORPORA.
Manufacturer Part Number	192204.00
Material	Aluminum
Max. Ambient Temp.	40 Degrees C
MFG Part #:	192204.00
Model Number	C90T17FZ15
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Aluminum
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
mounting	Rigid Base
Mounting Type	B3 Flange/Rigid Base, F.
Nameplate RPM	1,745
NEMA Design	B
Net Weight	37 lbs
No. of Speeds	1
Nominal Efficiency	86.5 %
Nominal Voltage	240 VAC, 480 VAC
Number of Poles	4
Number of Speeds	1
Overall Length	12.61 ", 12 13/16 in
Phase	3, Three, 3 ph
Product Series	IEC
Rotation	Reversible
RPM	1,800 RPM, 1700 - 1800,.
RPM @ 50Hz	1,745
RPM Range	1,701-1,800
Service Factor	1.15
Service Factor @ 50Hz	1.15
Shaft Dia.	24 mm
Shaft Diameter	UL;CSA
Shaft Length	50 mm
Shaft Size	1 in Dia x 1.96 in L
Shop By	Limited-Time Deals
Special Features	IEC Metric Motors
Speed	1745 rpm
Standards	CE Certified, CSA Certi.
Supplier:	LEESON ELECTRIC CORPORA.
UPC:	691720246900
Usable @ 200V	No
Usable @ 208V	No
Voltage	230, 230/460V AC
Voltage @ 50Hz	230/460V AC
Voltage Compatibility	200-230/440V AC, 200-23.
Volts	230/460
Weight	40 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G3458935	286.06	1	In Stock		Leeson	40.4	286.06 @ 1
electricmotorwholesale.com	192204	312.0	1	In Stock		LEESON		312.0 @ 1
AmazonTP	B00EP2LLRK	361.23	1	In Stock	3	Leeson		361.23 @ 1
Dealers Electric	192204.00	413.27	1	In Stock		Leeson	40.0	413.27 @ 1
Raptor Supplies	AJ2TTF	544.4511345	1	In Stock		LEESON		544.4511345 @ 1
us.rs-online.com	72637915	651.77	1	In Stock		Leeson		651.77 @ 1
Walker Industrial	192204-00	725.17	1	In Stock	17	Leeson		725.17 @ 1
kscdirect.com	LEE 192204.00	785.71	1	In Stock		LEESON ELECTRIC CORPORATION		785.71 @ 1
Galco	192204.00-LEES	870.2	1	In Stock		Leeson	37.0	870.2 @ 1
