Littelfuse P6KE18A

mpnP6KE18A
brandname: LITTELFUSE
manufacturername: LITTELFUSE

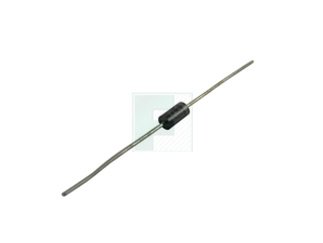

LITTELFUSE P6KE18A P6KE Series 25.2 V 0.6 kW Through Hole Uni-Directional TVS Diode - DO-204AC - 4000 Item(s)

Brand: Littelfuse
PartNumber: P6KE18A
Model: P6KE18A
PackageQuantity: 1
Manufacturer: LITTELFUSE
Label: LITTELFUSE

Attributes

Key	Value
@Ipp (test)	24.0
@Ir (test)	1.0m
Alternate Part No.	576-P6KE18A-B
Applications	General Purpose
Brand	LITTELFUSE
Breakdown voltage	18V
Breakdown Voltage	17.1 V
Capacitance @ Frequency	-
Case	DO15
Category	Circuit Protection
Clamping Voltage	25.2 V
Current - Peak Pulse (1.	24.2A
Description	TVS DIODE 15.3VWM 25.2V.
Detailed Description	25.2V Clamp 24.2A Ipp T.
Digi-Key Part Number	P6KE18ALFTR-ND - Tape &.
Dimensions	3.6 mm Dia. x 3.6 (Max).
Features of semiconduct.	glass passivated
Ipp Max. (A)	24.0
Kind of package	reel,
Leakage current	1?A
Manufacturer	Littelfuse Inc., LITTEL.
Manufacturer Part No.	P6KE18A-B
Manufacturer Product Nu.	P6KE18A
Manufacturer Standard L.	14 Weeks
Mat.	Silicon Logic
Max. forward impulse cu.	24.2A
Max. off-state voltage	15.3V
Maximum Operating Tempe.	+ 175 C
Mfr	Littelfuse Inc.
Minimum Operating Tempe.	- 55 C
Mounting	THT
Mounting Style	Through Hole
Mounting Type	Through Hole
Nom. Clamp Volt	25.2
Operating Temperature	-55?C ~ 175?C (TJ)
Operating Voltage	15.3 V
Package	Tape & Reel (TR)
Package / Case	DO-204AC, DO-15, Axial
Package/Case	DO-204AC
Packaging	Bulk
Peak Pulse Power Dissip.	600 W
Peak pulse power dissip.	600W
Peak Surge Current	24 A
Polarity	unidirectional
Power - Peak Pulse	600W
Power Line Protection	No
Product Category	TVS Diodes - Transient .
Product Status	Active
Reverse Standoff Voltage	15
Semiconductor structure	unidirectional
Series	P6KE
SKU	360432
Supplier Device Package	DO-204AC (DO-15)
Surface Mounted Yes/No	No
t(resp) (S)	1.0p
Termination Style	Axial
Tolerance	?5%
Type	Silicon Diode, Zener
Type of diode	TVS
Unidirectional Channels	1
Vbr Nom.	18
Voltage - Breakdown (Mi.	17.1V
Voltage - Clamping (Max.	25.2V
Voltage - Reverse Stand.	15.3V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Newark	74K3918	0.153	1	2998		LITTELFUSE	0.153 @ 50
Future Electronics	1872407	0.22524	4000	50		Littelfuse	0.22524 @ 4000
us.rs-online.com	71336747	0.23	4000	4000		Littelfuse	0.23 @ 4000
Arrow	P6KE18A-B	0.265	1000	50		Littelfuse	0.265 @ 1000
Mouser	576-P6KE18A	0.353	1	3788		Littelfuse	0.353 @ 50
Digi-Key	407701	0.4788	1	16891		Littelfuse Inc.	0.4788 @ 50
swatee.com	P6KE18A-B	1.1	1	138		Littelfuse	1.1 @ 50
Little Diode	P6KE18A	5.9331285	1	50		Littelfuse	5.9331285 @ 50
AmazonTP	B07PKRS3YG	31.92	1	50	3	Littelfuse	31.92 @ 50
