- mpn0541325062
- brandname: Molex
- manufacturername: Molex

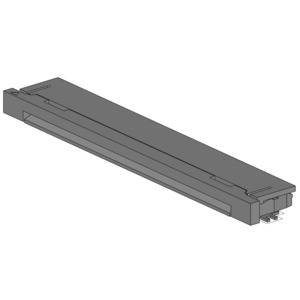

MOLEX 54132-5062 Connector, FPC, Receptacle, 50 Position, 1ROW
- Brand: Molex
- PartNumber: 54132-5062
- Manufacturer: MOLEX
- Label: MOLEX
Attributes
| Key | Value |
|---|
| Actuation Type | ZIF |
| Actuator Color | Black |
| Actuator Material | Polyphenylene Sulfide (. |
| Alternate Mfr Part Numb. | 54132-5062 |
| Alternate Part No. | 538-54132-5062 |
| Base Product Number | 054132 |
| Body material | Thermoplastic |
| Brand | Molex |
| Cable End Type | Straight, Tapered |
| Category | Connectors, Interconnec. |
| Connector series | Slider |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94?in (0.10?m) |
| Contact Location | Bottom Contact |
| Contact material | Phosphor Bronze |
| Contact Material | Phosphor Bronze |
| Contact plating | gold-plated |
| Contact Plating | Gold |
| Current Rating | 500 mA |
| Current rating | 0.5A |
| Current Rating (Amps) | 0.5A |
| Description | CONN FFC BOTTOM 50POS 0. |
| Detailed Description | 50 Position FFC, FPC Co. |
| Digi-Key Part Number | WM6785TR-ND - Tape & Re. |
| Electrical mounting | SMT |
| Features | Solder Retention, Zero . |
| FFC, FCB Thickness | 0.30mm |
| Flammability rating | UL94V-0 |
| Flat Flex Type | FFC, FPC |
| Height Above Board | 0.079" (2.00mm) |
| Housing Color | White |
| Housing Material | Polyamide (PA46), Nylon. |
| Locking Feature | Slide Lock |
| Manufacturer | Molex |
| Manufacturer Part No. | 54132-5062 |
| Manufacturer Product Nu. | 0541325062 |
| Manufacturer Standard L. | 16 Weeks |
| Material Flammability R. | UL94 V-0 |
| Mating Cycles | 20 |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Type | Surface Mount, Right An. |
| Number of Circuits | 50 |
| Number of pins | 50 |
| Number of Positions | 50 |
| Number of Rows | 1 |
| Operating Temperature | -20?C ~ 85?C |
| Operating temperature | -20...85?C |
| Orientation | Right Angle |
| Package | Tape & Reel (TR) |
| Package Quantity | 1 |
| Packaging | Reel |
| Part # Aliases | 0541325062 |
| Part Status | Active |
| Pitch | 0.020" (0.50mm), 0.5 mm |
| Product Category | FFC & FPC Connectors |
| Product Status | Active |
| Product Type | Board Mount |
| Rated voltage | 50V |
| Ribbon cable pitch | 0.5mm |
| Series | Easy-On 54132, Easy-On . |
| Spatial orientation | horizontal |
| Special Features | Not Low-Halogen |
| Termination | Solder |
| Termination Style | SMD |
| Type of connector | FFC/FPC |
| Voltage Rating | 50V, 50 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Waldom | MOLEX 54132-5062 | 1.45 | 1500 | 11528 | | MOLEX | | 1.45 @ 1500 |
| TME | MX-54132-5062 | 1.52 | 4500 | 10 | | MOLEX | | 1.52 @ 4500 |
| Arrow | 54132-5062 | 1.936 | 4500 | 4500 | | Molex | | 1.936 @ 4500 |
 | jensentools.com | 10194040 | 1.96 | 1 | 10 | | Molex | | 1.96 @ 10 |
 | Newark | 56R1937 | 2.45 | 1 | 2008 | | MOLEX | | 2.45 @ 10 |
 | Digi-Key | 3044859 | 2.988 | 1 | 10090 | | Molex | | 2.988 @ 10 |
| us.rs-online.com | 70373578 | 3.38 | 10 | 10 | | Molex Incorporated | | 3.38 @ 10 |
| RS Delivers | 670-2645P | 3.6912 | 1 | 3880 | | Molex | | 3.6912 @ 10 |
 | Radwell | 54132-5062 | 6.0 | 1 | 10 | | MOLEX | | 6.0 @ 10 |
 | swatee.com | 54132-5062 | 6.15 | 1 | 779 | | Molex | | 6.15 @ 10 |
| AmazonTP | B07QY9LHYN | 61.69 | 1 | 10 | 1 | Molex | | 61.69 @ 10 |
 | Zoro | G7766610 | 3675.0 | 1 | 10 | | Molex | | 3675.0 @ 10 |
