Omron D4C-1620

B005T8R53I

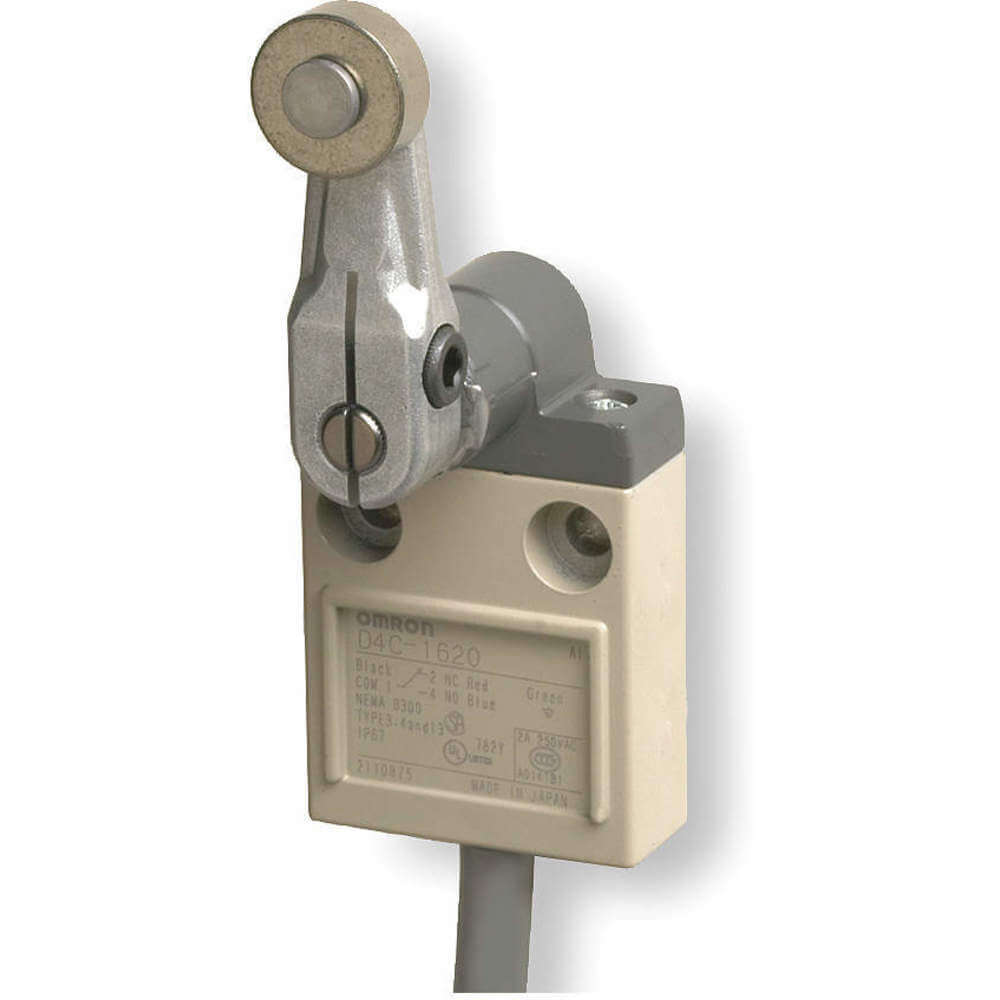

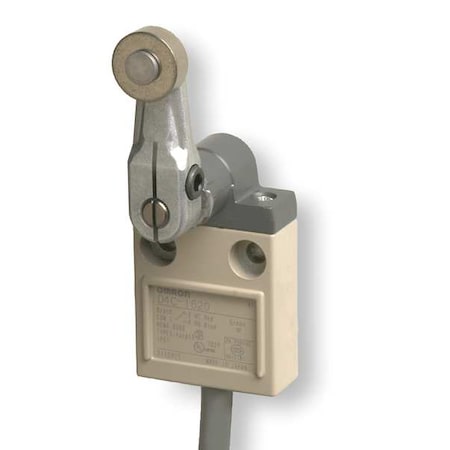

Omron D4C-1620 Compact Enclosed Limit Switch, Roller Lever, SJT(O) Cable, 5A at 250VAC and 4A at 30VDC Rated Current, 3m Cable Length

Omron D4C-1620 Compact Enclosed Limit Switch, Roller Lever, SJT(O) Cable, 5A at 250VAC and 4A at 30VDC Rated Current, 3m Cable Lengthzoom

Attributes

Key Value
AC Contact Rating - Lim.5A @ 240V
ActuatorRoller Lever
Actuator Length1.50"
Actuator Length - Limit.1.5 in
Actuator Location - Lim.Side
Actuator Style - Limit .Roller Lever, Rotary
Actuator TypeRoller Lever, Side Rota.
Alternate Mfr Part Numb.D4C1620
Alternate Part No.653-D4C-1620
Arm Width0.63 in
Base Product NumberD4C
Basic Actuator Style (L.Rotary
Basic Actuator Style - .Rotary
Body Depth - Limit Swit.0.63 in
Body Height - Limit Swi.2.13 in
Body Style - Limit Swit.Miniature
Body Width - Limit Swit.1.33 in
Box shape-
BrandOmron, Omron Automation.
CategorySwitches
CircuitSPDT
Contact Form2 NC / 4 NO, SPST-NO ; .
Contact Form - Limit Sw.SPDT
Contact Form- SwitchesSPDT
Current Rating5 A
Current Rating (Amps)5A (AC), 4A (DC)
Current Stock197
DC Contact RatingNot Rated
DC Contact Rating - Lim.Not Rated
Depth0.63"
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Dielectric Strength1000/1500 VAC
Differential Travel-
Digi-Key Part NumberZ1057-ND
Electrical Life200,000 Cycles
FeaturesCable Length 3m
Head TypeSide Rotary Head
Height4.04"
Ingress ProtectionIP67 - Dust Tight, Wate.
International ShippingNo
IP RatingIP67
ItemLimit Switch
Lead TimeExpected to ship in 1-2.
Main Body SizeSmall
ManufacturerOmron, Omron Automation.
Manufacturer Part No.D4C-1620
Manufacturer Product Nu.D4C-1620
Manufacturer Standard L.26 Weeks
MaterialRugged Diecast (Housing)
Mechanical Life10,000,000 Cycles
MfrOmron Automation and Sa.
MountingRoller
Mounting - Limit SwitchSurface
Mounting Hole Size10.2 mm
Mounting TypePanel Mount, Chassis Mo.
MpnD4C1620
Number of Poles1
Operating Force20.46 oz, 580gf, 20.46 .
Operating Position-
Operating Temperature-10 to +70 ?C, -10?C ~ .
Overtravel40?
PackageBulk
Part # Aliases1385680
Part StatusActive
Pretravel25?
Product CategoryLimit Switches
Product StatusActive
Promotion RestrictionNot eligible for promot.
Release Force150gf
Roller Dia.0.69 in
Roller Width0.28 in
SeriesD4C, D4C Series
SKUZO-G2688847
SubCategoryElectrical
Switch FunctionOn-Mom
Switch TypeLimit Switches
TerminationCable
Termination StyleCable Leads, Quick Conn.
TypeLimit
Voltage Rating250 V
Voltage Rating - AC250 V
Voltage Rating - DC30 V
Voltage Rating AC250 V
Voltage Rating DC30 V
Width1.57"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD69226160.981In StockOMRON60.98 @ 1
thumbzoomMisumi USAD4C-162071.341In Stock15OMRON71.34 @ 1
AmazonTPB005T8R53I118.061In Stock5Omron118.06 @ 1
thumbzoomZoroG2688847128.991In StockOmron1.02128.99 @ 1
ArrowD4C-1620129.6314Omron129.63 @ 1
Onlinecomponents.comD4C1620131.94117Omron131.94 @ 1
thumbzoomswatee.comD4C-1620132.1915Omron132.19 @ 1
Master ElectronicsD4C1620145.711In StockOMRON INDUSTRIAL145.71 @ 1
thumbzoomsimsupply.comZO-G2688847148.021197Omron148.02 @ 1
Carlton Bates Company40312372923151.6718Omron151.67 @ 1
Airline HydraulicsOMRON D4C-1620165.01In StockOmron165.0 @ 1
thumbzoomNewark18M7250165.0166OMRON INDUSTRIAL AUTOMATION165.0 @ 1
thumbzoomDigi-Key407957174.641176Omron Automation and Safety174.64 @ 1
us.rs-online.com70180086185.3314Omron Automation185.33 @ 1
thumbzoomsustainablesupply.comC3031832185.491In StockOmron1.02185.49 @ 1
thumbzoomRaptor SuppliesAB9ERY263.69461In StockOMRON263.6946 @ 1
