Rexnord ZA2400

mpnZA2400
brandname: Rexnord
manufacturername: Rexnord

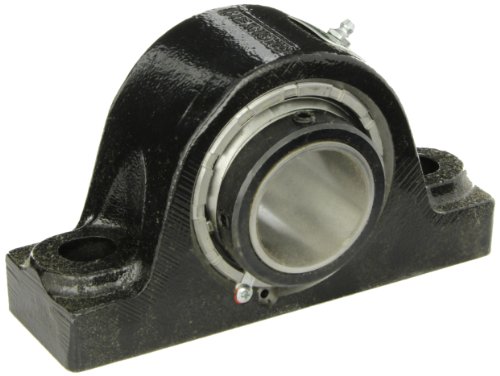

Rexnord ZA2400 Roller Bearing Pillow Block, 2 Bolt Holes, Relubricatable, Non-Expansion, Cast Iron, Setscrew Locking Collar, Steel Insert, Inch, 4" Bore Diameter

Rexnord ZA2400 Roller Bearing Pillow Block, 2 Bolt Holes, Relubricatable, Non-Expansion, Cast Iron, Setscrew Locking Collar, Steel Insert, Inch, 4" Bore Diameter

zoom

Brand: Rexnord
PartNumber: ZA2400
Model: ZA2400
PackageQuantity: 1
Binding: Misc.
Manufacturer: Rexnord
Label: Rexnord

Attributes

Key	Value
Actual Bolt Center to C.	10.9 Inch \| 276.2Millim.
base to bore centerline:	4.1250 in
Base to Center Height	4.125 Inch \| 104.775 Mi.
base width:	4-1/8 in
bearing type:	Spherical Roller
bolt center-to-center l.	10-7/8 in
Bolt Spacing Maximum	0 Inch \| 0Millimeter
Bolt Spacing Minimum	0 Inch \| 0Millimeter
bore type:	Round
Brand	REXNORD
Category	Pillow Block Bearings
Expansion / Non-expansi.	Non-expansion
expansion type:	Non-Expansion Bearing (.
finish/coating:	Powder Coated
Global Part Number GPN	502317
Harmonized Tariff Code	8483.20.40.80
Housing Configuration	1 Piece Solid
housing construction:	Solid Pillow Block
Housing Material	Cast Iron
housing material:	Cast Iron
Housing Style	2 Bolt Pillow Block
Inch - Metric	Inch
Insert Part Number	2400U
Length Thru Bore	5.188 Inch \| 131.775 Mi.
locking device:	Concentric Collar
lubrication type:	Lubrication Fitting
Manufacturer Name	REXNORD
maximum rpm:	2050 RPM
Mounting Bolts	1 Inch
Mounting Method	Concentric Collar
mounting:	Two-Bolt Base
Nominal Bolt Center to .	11.3 Inch \| 287 Millime.
Number of Mounting Holes	2
Other Features	Double Row \| Normal Dut.
overall width:	5-3/16 in
price	$ 1,714.16 / each
radial dynamic load cap.	118000 lb
radial static load capa.	127500 lb
Relubricatable	Yes
seal type:	Clearance/Non-Contact
Seals	Clearance Seal
series:	2000
standards met:	ANSI/ABMA STD 9-1990
title	ZA2400
UNSPSC	31171511
Weight / kgm	24.97
Weight / LBS	55

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Lily Bearing	ZA2400	1457.04	1	In Stock		REXNORD	54.934	1457.04 @ 1
	MRO Supply	507569	1569.4	1	In Stock	14	Rexnord	55.0	1569.4 @ 1
	Radwell	ZA2400	1868.25	1	In Stock		REXNORD	12.0	1868.25 @ 1
	motionindustries.com	00573455	2365.22	1	In Stock		Rexnord		2365.22 @ 1
