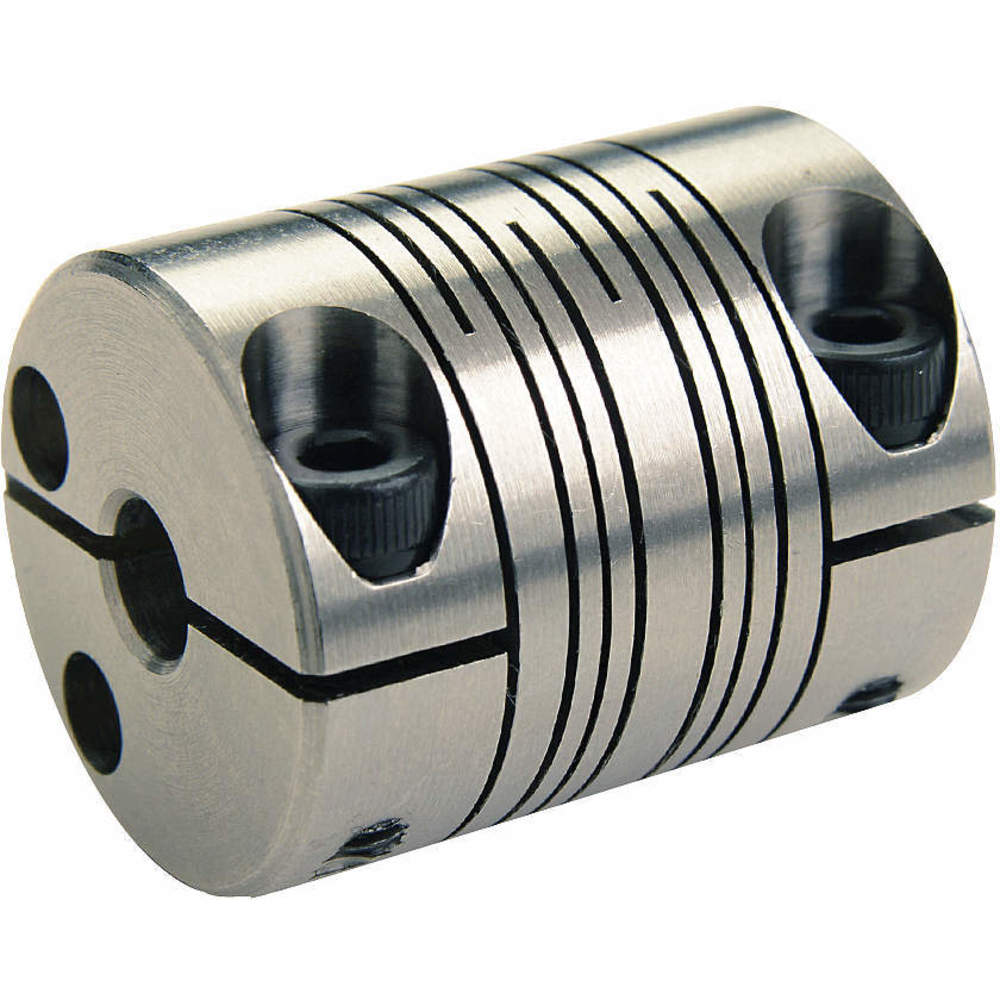

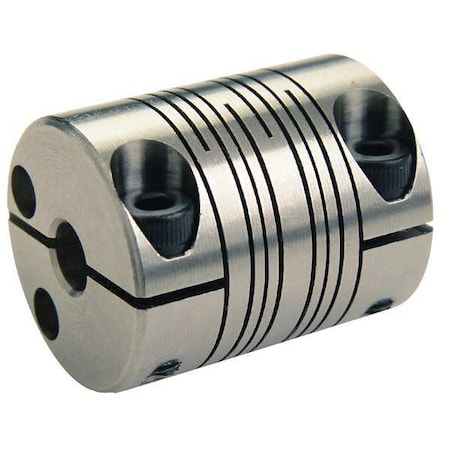

Ruland MWS15-5-4-SS Set Screw Beam Coupling, Stainless Steel, Metric, 5mm Bore A Diameter, 4mm Bore B Diameter, 15mm OD, 20mm Length, 0.81 Nm Nominal Torque

Ruland MWS15-5-4-SS Set Screw Beam Coupling, Stainless Steel, Metric, 5mm Bore A Diameter, 4mm Bore B Diameter, 15mm OD, 20mm Length, 0.81 Nm Nominal Torquezoom

Attributes

Key Value
Angular Misalignment3.0?
Axial Motion0.12 mm
B1 Max Shaft Penetration9.6 mm
B2 Max Shaft Penetration9.6 mm
Base Product NumberMWS15-5
Bore (B1)5 mm
bore - side 1:5 mm
bore - side 2:4 mm
Bore Dia.5mm x 4mm
Bore Tolerance+0.025 mm / -0.000 mm
bore tolerance:+.025 / -.000 mm
CategoryHardware, Fasteners, Ac.
Clearance Dia. (In.)0.984 in
Clearance Dia. (mm)25
Country of OriginUSA
Country of Origin (subj.United States
Dynamic Torque Non-Reve.0.60 Nm
Dynamic Torque Reversing0.30 Nm
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM3
Full Bearing Support Re.Yes
harmonization code:8483608000
Hex Wrench Size1.5 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)20.0 mm
Length through Bore9.41 mm
Length through Bore (In.0.37
Length through Bore (mm)9.41
ManufacturerRuland Manufacturing
MaterialStainless Steel
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
material:303 Stainless Steel
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.005
Max. Bore (mm)5 mm
Max. Parallel Misalignm.0.008 in
Max. RPM6,000 RPM
Max. Temp.350 Degrees F
Max. Temp. Range (F)350 Degrees
maximum angular misalig.3
maximum parallel misali.0.20 mm
maximum rpm:6000 rpm
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Min. Bore (mm)4
Moment of Inertia0.731 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
number of beams:Four Beam
Number of Screws4 ea
operating temperature:-40 to +350
Outer Diameter (OD)15.0 mm
Outside Dia.15 mm
Outside Dia. (In.)0.591
Outside Dia. (mm)15
outside diameter:15 mm
Overall Length20 mm
Overall Length (In.)0.787
Overall Length (mm)20
overall length:20 mm
PackageBag
Parallel Misalignment0.20 mm
Product StatusActive
Rated Torque11 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
screw clamp type:Set Screw Type
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM3
Screw Size (mm)M3
screw thread size:M3
Screw TypeSet Screw
Seating Torque0.92 Nm
Series-
Setscrew Location2 (120 Degrees )
Shaft Locking Type - Co.1 Piece Set Screw
SizeMWS15
Small Bore (B2)4 mm
Specifications0.591" (15.00mm) Outer .
Static Torque1.20 Nm
Style4-Beam Set Screw
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
Torque (In.-Lbs.)11
Torsional Stiffness2.52 Deg/Nm
Torsional Stiffness (De.0.285
torsional stiffness:2.52 N-m/deg
TypeBeam Coupling
UNSPC31163003
UPC634529056097
UPC Code63452905609
Weight (lbs)0.047900
weight:0.062 lb
Zero-Backlash?Yes
