Schneider Electric XB5S1B2L2

B00CONPKOC

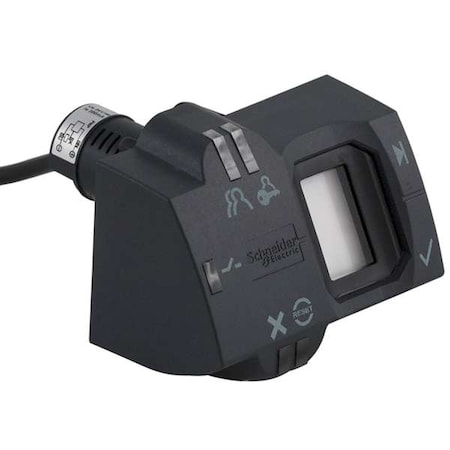

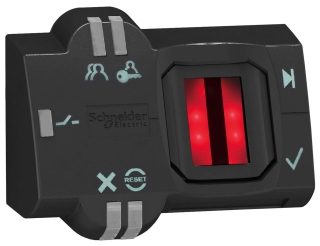

SCHNEIDER ELECTRIC XB5S1B2L2 Biometric W/Cable

SCHNEIDER ELECTRIC XB5S1B2L2 Biometric W/Cablezoom

Attributes

Key Value
(Switching-Indication) .Plastic
(Switching-Indication) .24 Volt
(Switching-Indication) .stay put
(Switching-Indication) .2 positions
(Switching-Indication) .22 mm
Actionstay put
Actuatorfingerprint reader;2 po.
Actuator Type-, fingerprint reader
ApplicationIndustrial machines;mat.
ASINB011ONRMVQ
Batteries Required?No
BrandSchneider Electric
Cable Length2 m
Cable MaterialPvR
Catalog NumberXB5S1B2L2
CategorySwitches
Circuit-
Circuit TypePNP
Color - Actuator/Cap-
ComponentBiometric Switch Comple.
Connection1 pre-wired cable, 3 x .
Connection TypePREWIRED CABLE (2M)
Country of OriginFR - France, France
Current Rating (Amps)-
Depth1.53 in
DescriptionHARMONY XB5S, BIOMETRIC.
Detailed DescriptionPushbutton Switch Finge.
Digi-Key Part Number4008-XB5S1B2L2-ND
ECCNEAR99
Electrical Connectionfree wire ends 3 2 m
Electrical Life-
EnclosurePolyamide PA66
Family NameHarmony XB4 / XB5 Family
Family SeriesSquare D Miscellaneous
Features-
FunctionFingerprint recognition
Green Environmental Att.Does not Contain Formal.
Gross Weight0 lbs
Height2.13 in
Housing MaterialPolyamide PA66
Illumination Type, Color-
Illumination Voltage (N.-
Indicatorfor output state indica.
Ingress ProtectionIP65 - Dust Tight, Wate.
IP RatingIP65, 65
ItemBiometric Switch
Item model numberXB5S1B2L2
Item NumberXB5S1B2L2
Item Package Quantity1
Item TypeBiometric switch;Bi-sta.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberXB5S1B2L2
Manufacturer Product Nu.XB5S1B2L2
Manufacturer Standard L.3 Weeks
MaterialDark grey plastic
Max. Current200 mA
Maximum Operating Tempe.50 C
Mechanical Life-
MfrSchneider Electric
Minimum Operating Tempe.-5 C
Mounting Diameter22 mm
Mounting Hole Size22 mm
Mounting TypePanel Mount, Front
NEMA Rating12
NEMA TypeNEMA 12
Net Weight0 lbs
Operating Temp.23 Degrees to 122 Degr.
Operating Temperature-5-50 A Degrees C, -5?C.
Operating Voltage24 V
OperationMaintained
Operation TypeMaintained
Operator Profilefingerprint reader
Output TypePNP
PackageBox
Panel Cutout DimensionsCircular - 22.00mm Dia
Part NumberXB5S1B2L2
Product StatusActive
Product TypeBiometric Switch
Response TimeLess Than 1 Sec.
SeriesHarmony XB5S Series, Ha.
Shock Resistance50 gn 11 ms IEC 60068-2.
Size0.87
Special FeaturesStand Alone ; 200 Users.
StandardIP20 EN/IEC 60529 rear .
StandardsUL, CSA, CE, IEC 61000-.
Storage Capacity200 Records
Sub BrandXB5S
Switch Function-
Switching Current200 mA
TerminationCable 3-Wire
Termination StyleCable Leads
Type22 mm, fingerprint read.
Type Of Operatorstay put
UNSPSC39122216
UNSPSC Code39122216
UPC785901617716
UPC Code785901617716
Vibration Resistance1 gn-9 Hz to 500 Hz
Voltage24V DC
Voltage Rating20 to 30 V, 24 V DC
Warranty DescriptionContractual Warranty:18.
Width2.73 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialrefrigerationparts.comXB5S1B2L247.061In StockSchneider Electric47.06 @ 1
thumbzoomblackhawksupply.comXB5S1B2L2369.561In StockSquare D369.56 @ 1
thumbzoomGalcoXB5S1B2L2-SQD420.551In StockSquare D420.55 @ 1
thumbzoomZoroG0438085420.991In StockSchneider Electric0.44420.99 @ 1
RS Online6843705430.7611Schneider Electric430.76 @ 1
thumbzoomDigi-Key16613325436.6112Schneider Electric436.61 @ 1
thumbzoomgordonelectricsupply.comXB5S1B2L2441.01In Stock10SQUARE D441.0 @ 1
thumbzoomNewark73R5297462.931In StockSCHNEIDER ELECTRIC462.93 @ 1
thumbzoomcrescentelectric.com305196484.151In StockSchneider Electric484.15 @ 1
standardelectricsupply.com2186066522.761In StockSchneider Electric522.76 @ 1
rspsupply.comSCHNEIDER XB5S1B2L2524.771In StockSchneider Electric524.77 @ 1
thumbzoomsustainablesupply.comC2926701533.351In StockSchneider Electric0.44533.35 @ 1
AmazonB011ONRMVQ548.611In StockSchneider Electric548.61 @ 1
thumbzoomTMEXB5S1B2L2553.881In StockSCHNEIDER ELECTRIC553.88 @ 1
us.rs-online.com70008101620.6515Schneider Electric620.65 @ 1
Graybar25404151665.6721In StockSquare D (Schneider Electric)665.672 @ 1
Grainger5RJY1674.01In Stock16SCHNEIDER ELECTRIC674.0 @ 1
thumbzoomNational Supply Network55489058744.251In StockSquare D744.25 @ 1
thumbzoombscsource.comXB5S1B2L2884.091In StockSquare D884.09 @ 1
