Square D HDL36150U31X

B0823YZH32

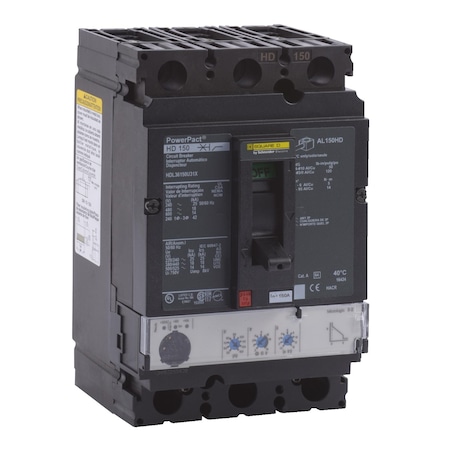

SQUARE D HDL36150U31X N 150A 600V 3 New LINE/Load LUGS LI Functions 3.2 Trip Unit

SQUARE D HDL36150U31X N 150A 600V 3 New LINE/Load LUGS LI Functions 3.2 Trip Unitzoom

Attributes

Key Value
ActuatorToggle
Actuator TypeToggle
Amperage150
Amperage Rating150, 150, 150 A
ApplicationDistribution;HACR rated
ApprovalCE, UL, CSA, NEMA, NOM,.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Catalog NumberHDL36150U31X
ColorBlack
Color FamilyBlack
ConnectionLugs line;lugs load; AW.
Connection typeLine/Load Lug
Connection TypeFeed-Thru
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Current Rating150-150A
Depth86 mm
Dimensions4.12 in W x 4.36 in D x.
ECCNEAR99
Enclosure TypeNEMA AB1
FrameD
Frame TypeHDL
Frequency Rating50/60, 50/60 Hz, 50/60 .
FunctionsLong Time and Instantan.
Gtin785901548676
Height163 mm
Interrupt Rating25 kA at 240 VAC/18 kA .
Interrupting Rating25kAIC at 240VAC, 18kAI.
ItemCircuit breaker,PowerPa.
Item TypeCircuit breaker
Length16 mm, 4.36 IN
Made in USAYes
ManufacturerSchneider Electric
Mounting typeSurface
Mounting TypeUnit
MpnHDL36150U31X
No. of Poles3-Pole
Number of Poles3
Operating Temperature40 A Degrees C
Phase3
Poles3
ProtectionThermal Magnetic
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesHDL
Special FeaturesModbus;Ethernet;1
StandardUL || CSA || NEMA || NO.
StandardsRoHS, REACh, HACR
Sub BrandPowerPact H
Temperature Rating-2 to 70 ?C
Temperature Rating (Deg.104, 104 deg F
Terminal ConnectionLine and Load Side Lug
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range150 A, 900 to 1700, 900.
Trip TypeElectronic LI/Thermal M.
TypeType HDL
UNSPSC39121616
UPC785901548676
Voltage600VAC
Voltage Rating600 V AC, 600, 600 VAC
Warranty DescriptionContractual Warranty:18.
Width104 mm
Wire GaugeAWG 14 to AWG 3/0, Alum.
Wire Size14 to 3/0 AWG Al/Cu

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comHDL36150U31X2204.01In StockSquare D2204.0 @ 1
thumbzoomstandardelectricsupply.com22407142263.121In StockSquare D (Schneider Electric)2263.12 @ 1
thumbzoomZoroG39753312346.191In Stock80Square D2.22346.19 @ 1
thumbzoomcrescentelectric.com2627492392.441In StockSquare D by Schneider Electric2392.44 @ 1
thumbzoomgordonelectricsupply.comHDL36150U31X2420.01In Stock10SQUARE D2420.0 @ 1
simplybreakers.comHDL36150U31X2475.991In StockSchneider Electric2475.99 @ 1
thumbzoomRadwellHDL36150U31X2550.01In StockSCHNEIDER ELECTRIC SQUARE D2550.0 @ 1
Graybar258083892894.71841In StockSquare D (Schneider Electric)2894.7184 @ 1
steinerelectric.com8469553041.611In StockSquare D?3041.61 @ 1
