CAI - SQUARE D 9036GR1

mpn9036GR1
brandname: SquareD
manufacturername: SquareD

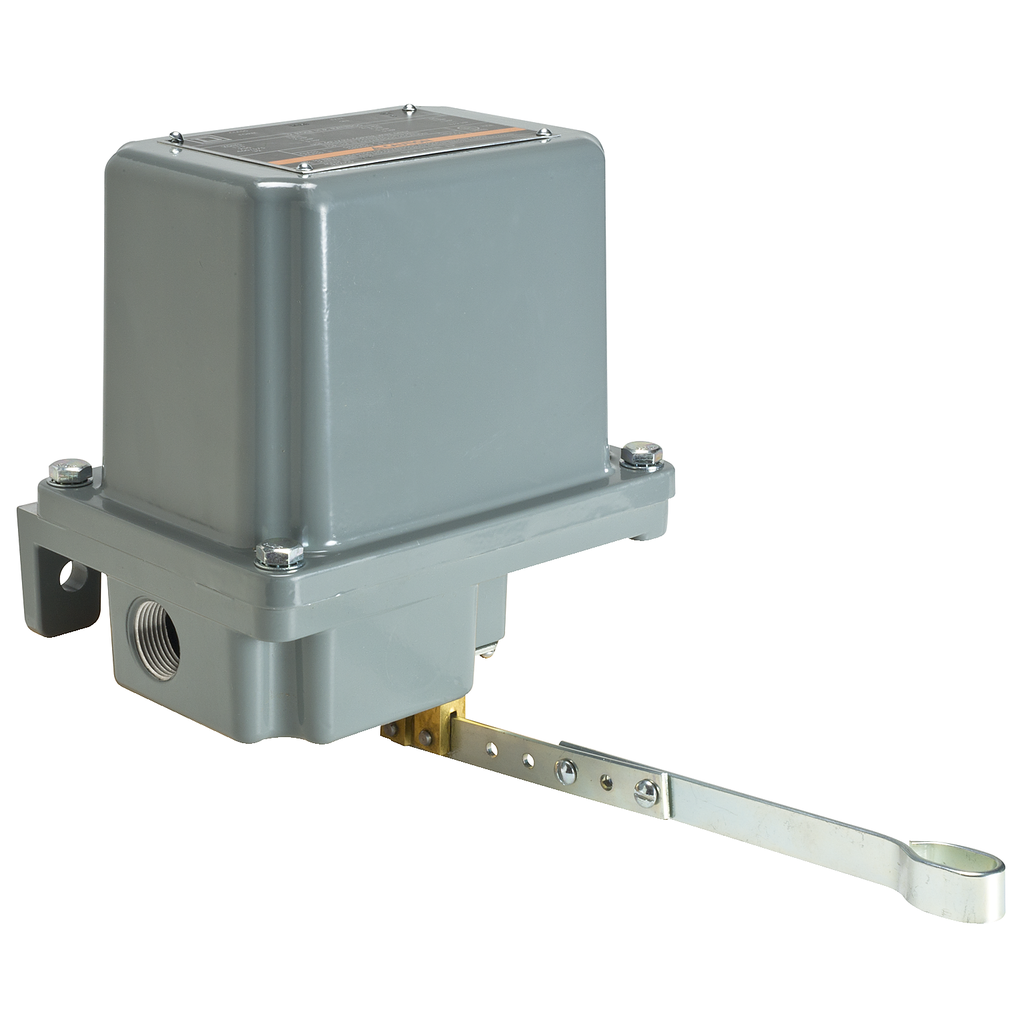

Square D DPST 460VAC Open Liquid Level Switch, Close On Rise, NEMA Rating 7, 9

Brand: CAI - SQUARE D
PartNumber: 9036GR1
PackageQuantity: 1
Manufacturer: CAI - SQUARE D
Label: CAI - SQUARE D

Attributes

Key	Value
[Ui] Rated Insulation V.	575 V UL 508
Ambient Air Temperature.	-22-220 ?F
Ambient Air Temperature.	-22-220 ?F
Amps	10 A
Approvals	UL;CE
Body Composition	ALUM
Body Material	Steel
Cable Entry Number	2 conduit entries for 3.
California Proposition .	Diisononyl phthalate (D.
Category	Sensors, Transducers
Circularity Profile	ENVEOLI111210EN
Condition	New
Conduit Size	2 3/4 in
Connection Type	Screw Terminals
Contact Form	DPST
Contact Operation	contacts close on liqui.
Contacts	DPST-NC
Contacts Type And Compo.	2 NC, snap action, DPST.
Controlled Fluid	fresh water specific gr.
Country of Origin (subj.	Mexico
Device Application	open tank heavy duty
Device Mounting	pedestal
Device Short Name	9036G
Electrical Circuit Type	power circuit
Electrical Connection	screw-clamp terminals 1.
Electrical Connections	Screw Clamp
Electrical Durability	100 cycles 60 cyc/mn
Enclosure Material	Cast Aluminium
Environmental Disclosure	ENVPEP111211EN
Estimated Lead Time (in.	8
Eu Rohs Directive	Pro-active compliance (.
Factory Modification	without
Family Series	Square D Sensors, 9036 .
Features	Float Not Included
Float Dia.	7.0 in
Float Length	7.0 in
Float Material	Stainless Steel
Float Movement	variable adjustable
Float Position	Below, any
Float Rod Angle	vertical
Float Switch Contact Fo.	DPST
Float Switch Float Mate.	Stainless Steel
Float Travel	1 1/4 in
Float Type	Vertical Float
Force Down To Trip	27 ozf long lever \|\| 29.
Force Up To Trip	20 ozf long lever \|\| 22.
Gross Weight	0 lbs
GTIN	785901489559
Height	8.25 in
HP @ 1 Phase - 120V	2 hp
HP @ 1 Phase - 240V	3 hp
HP @ 3 Phase - 240V	5 hp
Includes	Does Not Include Float
Item	Open Liquid Level Switch
Item Number	9036GR1
Kit Composition	float switch \|\| rod and.
Local Signalling	without
Manufacturer	Square D
Manufacturer Part Number	9036GR1
Material - Housing & Pr.	Aluminum
Max. Current	600 A
Max. Voltage	600
Maximum Operating Rate	60 cyc/mn
Mechanical Durability	300 cycles
Mercury Free	Yes
Mfr	Schneider Electric
Minimum Liquid Specific.	0.85
Motor Power Kw	1.5 kW 2 hp)115 V AC, 1.
Mounting	Open Tank, Flange
Mounting Type	Chassis Mount, Screw Mo.
Nema Degree Of Protecti.	NEMA 7/9 UL 698
NEMA Rating	7, 9
Net Weight	0 lbs, 8.74 lb(US)
Operating Position	vertical position only
Operating Temp. Range	-22 Degrees to 220 Deg.
Operating Temperature	-30?C ~ 104?C
Output Configuration	DPST-NC
Output Type	Switch
Overall Length	5.55 in
Package	Box
Product Certifications	UL listed file E12443 \|.
Product Destination	for open tank or sump
Product Or Component Ty.	float switch
Product Series	9036
Product Specific Applic.	liquid level control
Product Status	Active
Product Type	Open Liquid Level Switch
PSI Rating	50
Quantity Per Set	set of 1
Range Of Product	Square D Pumptrol
Reach Regulation	Reference contains Subs.
Rohs Exemption Informat.	Yes
Series	-
Short-Circuit Protection	20 A cartridge fuse gG
Standards	UL 508 \|\| CE
Sustainable Offer Status	Green Premium product
Switch Actuation Level	-
Switch Function	Close on Rise
Switching Voltage AC	120;240 Volts AC
Temperature Range (F)	-22 to 220 Degrees F
Terminal Block Type	4 terminals
Terminals Description I.	line-load-load-line
Type	Liquid
Type Of Packing	individual
VA Rating	460V AC
Voltage	600VAC
Voltage Rating	-
Warranty	18 months
Weight	2.000000
Width	3.75 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
industrialrefrigerationparts.com	9036GR1	500.23	1	9		Square D	2.0	500.23 @ 9
Digi-Key	16566986	565.06	1	9		Schneider Electric		565.06 @ 9
Galco	9036GR1-SQD	601.61	1	9		Square D		601.61 @ 9
Zoro	G0588655	621.32	1	9	26	Square D	8.95	621.32 @ 9
steinerelectric.com	416851	693.68	1	9		Square D?		693.68 @ 9
sustainablesupply.com	C1193245	708.86	1	9		Square D	8.95	708.86 @ 9
mayerelectric.com	SQD9036GR1	756.9	1	9		SQUARE D	8.74	756.9 @ 9
National Supply Network	69658060	758.04	1	9		Square D		758.04 @ 9
Raptor Supplies	AG6PPY	997.2683955	1	9		SQUARE D		997.2683955 @ 9
mostelectric.com	9036GR1	1147.34	1	9		SQUARE D/TELEMECANIQUE		1147.34 @ 9
