TE Connectivity 321868

mpn321868
brandname: TE Connectivity
manufacturername: TE Connectivity

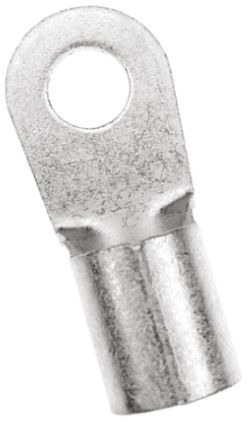

321868, Ring Tongue Terminal (1/0) AWG Copper 48.89mm Tin Box (25 Items)

321868, Ring Tongue Terminal (1/0) AWG Copper 48.89mm Tin Box (25 Items)

zoom

Brand: TE Connectivity
PartNumber: 321868
Model: 321868
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Angle	Straight
Barrel Inside Diameter	11.278?mm?[?.444?in?]
Barrel Type	Closed Barrel
Body Style	SOLISTRAND
Brand	TE Connectivity
Contact Material	Copper
Contact Plating	Tin
Current Rating	1
Finish	Tin
Government Qualified	Yes
Heavy Duty	No
Insulated	No
Insulation	Uninsulated
Maximum Wire Size AWG	1/0AWG
Maximum Wire Size mm&#1.	50mm?
Military Part Class	Class II
Minimum Wire Size AWG	1/0AWG
Minimum Wire Size mm&#1.	50mm?
Number of Holes	1
Operating Temperature R.	170??C?[?338??F?]
Outer Ring Diameter	0.807in
Overall Length	1.925, 48.89?mm?[?1.92?.
Overall Width	0.807
Packaging Method	Box
Packaging Quantity	50
Plating Material	Copper, Tin
Sealable	No
Series	Solistrand Series, SOLI.
Shape Description	RING-049
Special Features	Brazed Seam
Stud Diameter	9.53, 9.91, .39
Stud Size	3/8, 0.375in
Support Style	Non - Insulation Support
Terminal	Ring Tongue
Terminal Angle	Straight
Terminal Material	Copper
Terminal Orientation	Offset
Tongue Thickness	.79?mm?[?.031?in?]
Type	Ring Tongue
Weight per Piece	24.298
Wire Insulation Support	Without
Wire Size	1/0 AWG, 0, 41 ? 60, 83.
Wire/Cable Type	Regular Wire

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hawk Electronics	321868	1.25	10	2		TE Connectivity		1.25 @ 10
	TE Connectivity	321868	1.5137	1	424		TE Connectivity (TE)		1.5137 @ 2
	Onlinecomponents.com	321868	2.19	1	3966		TE Connectivity / AMP Brand		2.19 @ 2
	Jameco	842638	2.49	20	2		TE Connectivity		2.49 @ 20
	us.rs-online.com	70085027	2.68	1	2		TE Connectivity		2.68 @ 2
	Waldom	TE CONNECTIVITY AMP BRAND 321868	2.98	20	2		TE CONNECTIVITY/AMP BRAND		2.98 @ 20
	Hotenda	H1656281	3.01	1	2		TE Connectivity AMP Connectors		3.01 @ 2
	Digi-Key	299227	4.09	1	2		te-connectivity-amp-connectors		4.09 @ 2
	RS Delivers	782-4954	4.944	1	2		TE Connectivity		4.944 @ 2
	Newark	66H6974	5.21	1	2		AMP - TE CONNECTIVITY		5.21 @ 2
