Weg Electric 00136ES1BJP56J-S

B07BQDRKGT

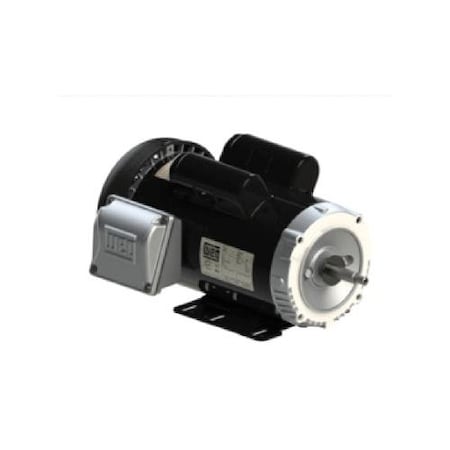

Weg Electric 00136ES1BJP56J-S, 1HP, 3600 RPM, 1PH, 110-120V,208V,230V, 56J Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

Weg Electric 00136ES1BJP56J-S, 1HP, 3600 RPM, 1PH, 110-120V,208V,230V, 56J Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating5.1 A
Application TypeJet Pump (JM/JP) Motors
ClassificationJM-JP & Jet Pump
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 1HP 2P 56J WCF2
Dimensions13.614 in L
Drive End Flange TypeC-Face
Efficiency %67 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight33.00
Family SeriesWEG Electric Motors
FL Amps5.1
FL Efficiency67
FlangesFlange C
FRAME56J
Frame56J
Frame MaterialRolled Steel
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps5.1
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassClass B
Item ConditionFactory New
Item Number00136ES1BJP56J-S
Kw0.75
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00136ES1BJP56J-S
MaterialRolled Steel
MFG Part #:00136ES1BJP56J-S
Model13670133
Motor Enclosure DesignTEFC
Motor Mounting TypeFOOT
Motor Service Factor1.15
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Nameplate RPM3600
NEMA Frame56J
Net Weight0 lbs
Nominal Efficiency67
Nominal Voltage120 VAC
Number of Poles2
Number of Speeds1
Output Rating1 hp
Overall Length13.614
Part Number00136ES1BJP56J-S
Phase1, 1 ph
Product TypePump
Replaces00136ES1BJP56J
RPM3600, 3,600 RPM
Service Factor1.15
Speed3600 rpm
Speed (RPM)3600
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Terminal BoxLeft position
UPC:7909522755388
VOLTAGE115/208-230
Voltage110-120V, 115/208-230 V.
Voltage (AC)120 VAC
Voltage Rating115/208/230 VAC
Volts115/208-230
WEIGHT33
Weight33.290000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00136ES1BJP56J-S197.01In StockWEG29.5197.0 @ 1
thumbzoomWalker Industrial00136ES1BJP56J-S280.51In Stock17WEG280.5 @ 1
thumbzoommotorsandcontrol.com00136ES1BJP56J-S280.51In StockWEG Electric33.0280.5 @ 1
kscdirect.comWEG 00136ES1BJP56J-S282.781In StockWEG ELECTRIC CORP282.78 @ 1
thumbzoomMRO Supply2853130295.361In StockWEG295.36 @ 1
thumbzoomGalco00136ES1BJP56J-S-WEG324.481In StockWEG Electric324.48 @ 1
thumbzoomindustrialrefrigerationparts.com00136ES1BJP56J-S327.211In StockWEG33.29327.21 @ 1
thumbzoomZoroG503435337348.331In Stock11Weg33.0348.33 @ 1
thumbzoomDealers Electric00136ES1BJP56J-S358.471In StockWeg46.0358.47 @ 1
motionindustries.com06413680479.731In StockWEG Electric Corporation479.73 @ 1
