B&C Speakers 15DS115-4

mpn15DS115-4
brandname: B&C Speakers
manufacturername: B&C Speakers

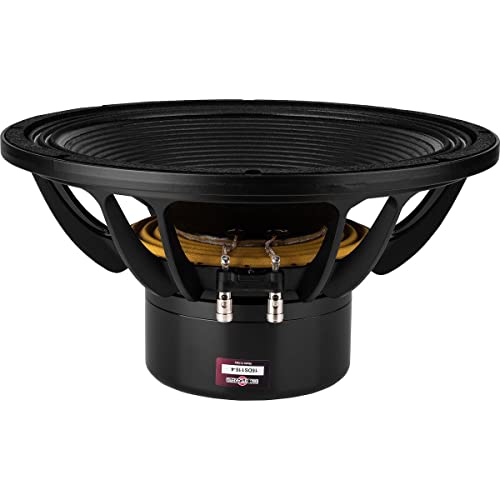

B&C 15DS115-4 15" Neodymium Subwoofer 4 Ohm

B&C 15DS115-4 15" Neodymium Subwoofer 4 Ohm

zoom

Brand: B&C Speakers
PartNumber: 15DS115-4
PackageQuantity: 1
Binding: Electronics
Manufacturer: B&C Speakers
Label: B&C Speakers

Attributes

Key	Value
# Mounting Holes	8
Baffle Cutout Diameter	13.94"
BL Product (BL)	33.6T?m
Bolt Circle Diameter	14.76
Brand	B&C Speakers
Compliance Equivalent V.	2.93ft?
DC Resistance (Re)	3.2?
Depth	7.83"
Diaphragm Mass Inc. Air.	273g
Electromagnetic Q (Qes)	0.17
Frequency Response	35 to 1,000Hz
Impedance	4?
Magnet Material	Neodymium
Maximum Linear Excursio.	16.5mm
Mechanical Q (Qms)	4.7
Model	15DS115-4
Nominal Diameter	15"
Overall Outside Diameter	15.47"
Part Number	294-6058
Power Handling (MAX)	3200 Watts
Power Handling (RMS)	1600 Watts
Resonant Frequency (Fs)	34Hz
Sensitivity	96dB 2.83V/1m
Surface Area of Cone (S.	855cm?
Total Q (Qts)	0.16
Unit of Measure	Each
UPC	848864058221
Vented F3	35.4Hz
Vented Volume	2.5ft?
Voice Coil Diameter	4.5"
Voice Coil Former	Fiberglass
Voice Coil Inductance (.	3.2mH
Voice Coil Wire Material	Aluminum
Weight	28.55
