SDR0503-680KL

mpnSDR0503-680KL
brandname: Bourns Inc.
manufacturername: Bourns Inc.

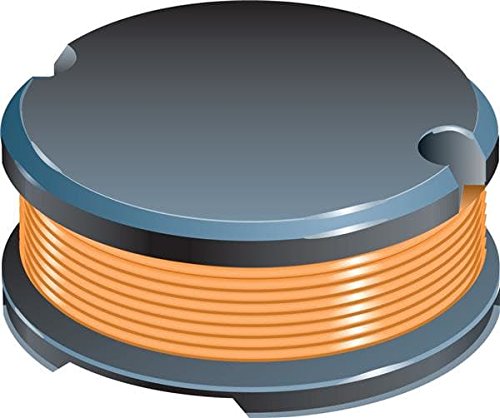

Fixed Inductors 68uH 10% SMD 0503 (50 pieces)

Fixed Inductors 68uH 10% SMD 0503 (50 pieces)

zoom

PartNumber: SDR0503-680KL
Size: 50 Piece
PackageQuantity: 50
Manufacturer: Bourns
Label: Bourns

Attributes

Key	Value
Alternate Part No.	652-SDR0503-680KL
Base Product Number	SDR0503
Brand	Bourns
Case Length	5 mm
Case Width	3 mm
Category	Inductors, Coils, Chokes
Current - Saturation (I.	600mA
Current Rating (Amps)	450 mA
DC Resistance (DCR)	760mOhm Max
Frequency - Self Resona.	12MHz
Height - Seated (Max)	0.130" (3.30mm)
Inductance	68 uH, 68 ?H
Inductance Frequency - .	1 kHz
Manufacturer	Bourns
Manufacturer Part No.	SDR0503-680KL
Material - Core	Ferrite
Maximum DC Current	450 mA
Maximum DC Resistance	760 mOhms
Mfr	Bourns Inc.
Mounting Type	Surface Mount
Operating Temperature	-40?C ~ 125?C
Package	Tape & Reel (TR)
Package / Case	Nonstandard
Packaging	Reel
Part Status	Active
Product Category	Fixed Inductors
Product Status	Active
Q @ Freq	20 @ 2.52MHz
Q Minimum	20
Ratings	-
Self Resonant Frequency	12 MHz
Series	SDR0503
Shielding	Unshielded
Size / Dimension	0.197" L x 0.189" W (5..
Supplier Device Package	-
Termination Style	SMD/SMT
Tolerance	10 %, ?10%
Type	Wirewound, Drum Core, W.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H2170449	0.2352	500	250		Bourns, Inc.		0.2352 @ 500
	Newark	74K4279	0.292	1500	250		BOURNS		0.292 @ 250
	Digi-Key	2352932	0.713	1	250		Bourns Inc.		0.713 @ 250
	swatee.com	SDR0503-680KL	0.75	1	534		Bourns		0.75 @ 250
