Burndy YAZ29TC12

B008KNL5JO

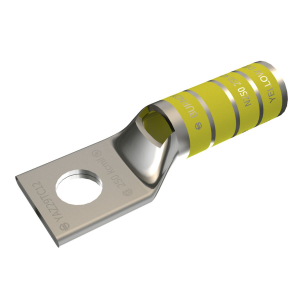

Burndy YAZ29TC12 One Hole Hylug Code Conductor Long Barrel Uninsulated Copper Compression Terminal with Inspection Window, 250 kcmil Conductor, 1/2" Stud Hole Size, 1.10" Tongue Width, 3.43" Length

Burndy YAZ29TC12 One Hole Hylug Code Conductor Long Barrel Uninsulated Copper Compression Terminal with Inspection Window, 250 kcmil Conductor, 1/2" Stud Hole Size, 1.10" Tongue Width, 3.43" Lengthzoom

Attributes

Key Value
ApplicationWire Termination
ApprovalsCSA, UL
BrandBurndy-US, a Hubbell af.
Catalog NumberYAZ29TC12
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorYellow
Color CodeYellow
Conductor - Copper Str .250 (61) Navy
Conductor - Copper Str .250 (61) Navy
Conductor - Copper Str .250 KCMIL
Conductor - MaterialCOPPER
Conductor Size250 KCMIL
Conductor TypeCODE
Connector TypeLONG BARREL
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Cross Reference ProductsCLWS-250-12
Die Index16
Dimension - B Length in.1.62 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1/2
Dimension - Bolt Size i.0.5
Dimension - Hole Size f.1/2
Dimension - Hole Size i.0.53
Dimension - Hole Size mm13.5 mm
Dimension - L Length Ov.82 mm
Dimension - Length Over.3.23 in
Dimension - N inch0.53 in
Dimension - Outside Dia.0.75 in
Dimension - Pad Width i.1.10 in
Dimension - Strip Lengt.1-11/16
Dimension - Stud Size f.1/2
Dimension - Stud Size i.1/2
Dimension - Z inch0.55 in
ECCNEAR99
EU RoHS IndicatorYes
Family SeriesBurndy Terminals, YAZ S.
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Finish TypeTin-Plated
Gross Weight0.01 lbs
GTIN00781810240182
Industry Standard(s)UL 486A-486B
InsulatedNon-Insulated
Item NumberYAZ29TC12
Item TypeLong Barrel, Skive, Tin.
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYAZ29TC12
MaterialCOPPER
Max Temp194 ?F
Net Weight0 lbs
Physical Attribute - Nu.1
Physical Attribute - To.Straight
PlatedYes
Plating MaterialElectro-Tin
Plating TypeTin - Electro Plated
Product SeriesYAZ
Rating - KVA35 kV
Special FeaturesFeatures: UL Listed 90 .
StandardUL 486A-486B
Standards - RoHS Compli.CM
Sub BrandHYLUG
Terminal MaterialCOPPER
Terminal TypeBarrel - Long
Tongue Width1.1 "
TypeLong Barrel, Skive, Tin.
UL ListedYes
UNSPSC39121405
UPC781810240182
Voltage - Maximum35000
Voltage Rating35, 35 kV
Volts600 V
Wire Size250 KCMIL
Wire Size (kcmil)250 KCMIL
Wire Strip Length1.6875 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG50243911416.971In Stock59Burndy16.97 @ 1
thumbzoomusmegastore.comYAZ29TC1220.841In StockBurndy20.84 @ 1
thumbzoomgordonelectricsupply.comYAZ29-TC1222.231In StockBURNDY22.23 @ 1
thumbzoomGalcoYAZ29TC12-BURN29.081In StockBurndy0.0129.08 @ 1
thumbzoomcrescentelectric.com1553532.431In StockBurndy-US, a Hubbell affiliate32.43 @ 1
Graybar995497991215.06561In StockBurndy1215.0656 @ 1
