Chicago Latrobe 50719

B09TJQ6T1R

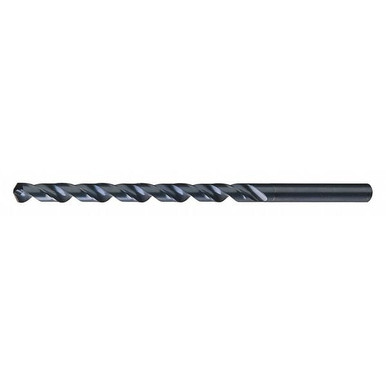

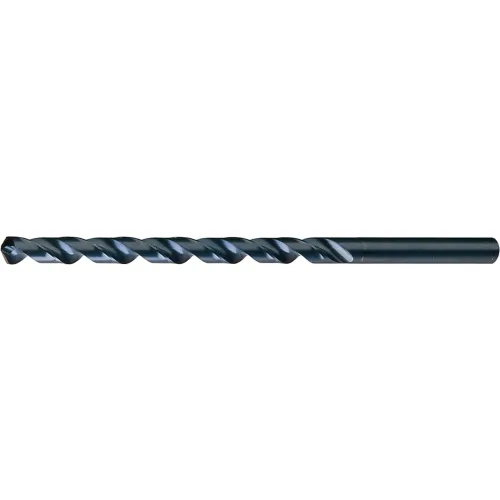

Chicago-Latrobe 50719 120X Heavy Duty Extra Length Drill, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 12 in OAL, HSS (1 Each)

Chicago-Latrobe 50719 120X Heavy Duty Extra Length Drill, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 12 in OAL, HSS (1 Each)zoom

Attributes

Key Value
Applicable MaterialsAlloy Steel, Carbon Ste.
ApplicationFor Drilling Carbon Ste.
AvailabilityExpected to ship in 1-2.
Bit Dia.11/64"
BrandChicago-Latrobe
Coolant FedNon-Coolant Through
Coolant ThroughNo
Country of Origin (subj.United States
Current Stock9
Cutting Depth9 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Decimal Equivalent0.1719
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.1719"
Diameter (Fraction)11/64"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBlack Oxide
Drill Bit GroupingIndividual, Drill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle118 Degrees, 118 Degre.
Drill Bit Point TypeNotched Point
Drill Bit Size11/64 in
Drill ConstructionGeneral Purpose
Drill Diameter Tolerance+0.0000 in /-0.0007 in
Drill Length ClassExtra Long
Drill Point Length0.0516 in
Drill Size - Decimal In.0.1719 in
Drill Size - Fraction11/64 in
Drill Size SystemFractional
Drill StyleExtra Length Drill
FinishBlack Oxide/Steam Oxide
Finish - MachiningBlack Oxide
Flute Length9 in, 9.0000"
Flute Length (Metric)228.60 mm.
Flute TypeSpiral
GradeGeneral Purpose
Hand of CutRight
Hand of SpiralRight
Helix Angle28 Degrees
International ShippingNo
ItemExtra Long Drill Bit
List Number120X
MaterialHSS, High Speed Steel
Material - MachiningHigh Speed Steel
Material Grade - Machin.General Purpose
Maximum Drilling Depth9 in
Measurement SystemFractional Inch, Imperi.
Mpn50719
Number of Flutes2
Number of Pieces0
Overall Length12 in, 12.0000"
Overall Length (Metric)304.80 mm.
Point Angle118 deg, 118?
Point StyleNotched
Point TypeK-Notch, Notched
Primary Material Applic.Cast Iron, Steel
Primary Material Applic.K, P
Series120X
Shank ConfigurationStraight
Shank Dia.11/64 in
Shank Length3.0000", 3 in
Shank Length (Metric)76.20 mm.
Shank Size11/64 in, 0.172", 0.171.
Shank Size (Metric)4.37 mm.
Shank TypeStraight
Shank Type - MachiningStraight
SKUZO-G2986273
Spiral DirectionRight Hand
StandardsNot Rated
Style120X
SubCategoryMachining
Surface ConditionSteam Oxide
Through Coolant (Yes/No)No
Tool Size11/64"
TypeHeavy Duty
UPC662355507193

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply613076217.453In StockChicago-Latrobe17.45 @ 3
thumbzoomGlobal IndustrialWBB254682119.51In StockChicago-Latrobe19.5 @ 1
thumbzoomZoroG298627320.911In Stock26Chicago-Latrobe20.91 @ 1
thumbzoomusmegastore.com5071922.961In StockChicago-Latrobe22.96 @ 1
thumbzoomMegadepot5071922.961In StockChicago-Latrobe22.96 @ 1
thumbzoomheavydutydepot.com5071922.965In StockChicago-Latrobe22.96 @ 5
Grainger439A1425.091In StockCHICAGO-LATROBE25.09 @ 1
thumbzoomsimsupply.comZO-G298627326.2719Chicago-Latrobe26.27 @ 1
thumbzoomNational Supply Network3685561737.271In StockChicago-Latrobe37.27 @ 1
thumbzoomGuardian3685561746.471In StockChicago-Latrobe46.47 @ 1
