- mpnC54539
- brandname: CLEVELAND
- manufacturername: CLEVELAND

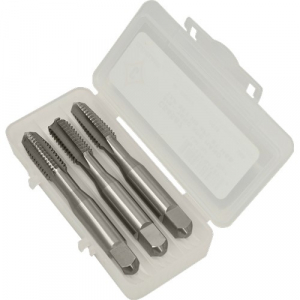

Three Piece Tap Kit,M8-1.25,HSS


- Brand: CLEVELAND
- PartNumber: C54539
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Cleveland
- Label: Cleveland
Attributes
Key | Value |
---|
55% Thread Drill Size | 7.10 mm |
65% Thread Drill Size | I |
75% Thread Drill Size | H |
Chamfer | Bottoming/Plug/Taper |
Class of Fit | 6H |
Coolant Fed | Non-Coolant Through |
Cutting Direction | Right Hand |
Extended Shank | No |
Features | Taper-Plug-Bottoming |
Finish/Coating | Bright |
Includes | (1) Bottoming Tap, (1) . |
Item | Three Piece Tap Kit, St. |
List Number | 5512, 1004 |
Material | HSS |
Measurement System | Metric |
Number of Flutes | 4 |
Number of Pieces | 3 |
Number Of Taps | 3 |
Overall Length | 69.06mm, 69.09 mm |
Package Type | Rose Plastic? UniBox |
Pitch Diameter Limit | D5 |
Primary Material Applic. | Aluminum, Brass, Bronze. |
Primary Material Applic. | K, M, N, P |
Series | 1004 |
Shank Dia. | 8.07mm, 8.08 mm |
Shank Diameter | 8.08 mm |
Shank Length | 40.48 mm |
Size | M8x1.25 |
Square Size | 9.52 mm L x 6.05 mm W, . |
Standards | USCTI Table 302A, Table. |
Style | 1004 |
Surface Condition | Bright |
Tap Chamfer | Bottoming, Plug, Taper |
Tap Dimension Type | Metric |
Tap Finish | Bright, Bright (Uncoate. |
Tap Grouping | Tap Set |
Tap Material | High Speed Steel |
Tap Shank Standard | USCTI Table 302A |
Tap Size | M8 |
Tap Style | Straight Flute (Hand) |
Tap Thread Size | M8-1.25 |
Tap Thread Type | Metric |
Tap Type | Straight Flute |
Thread Direction | Right Hand |
Thread Form | Metric |
Thread Length | 17.53 mm, 28.58mm |
Thread Limit | D5, 2B |
Thread Pitch | 1.25mm, 1.25 |
Thread Standard | Metric |
Tool Size | M8x1.25 |
Type | Standard Straight Flute. |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | MRO Supply | 6120274 | 21.08 | 2 | 3 | | Cleveland | | 21.08 @ 3 |
  | Zoro | G2845908 | 25.65 | 1 | 90 | | Cleveland | 0.17 | 25.65 @ 3 |
  | Megadepot | C54539 | 27.21 | 1 | 3 | | Cleveland | | 27.21 @ 3 |
  | usmegastore.com | C54539 | 27.45 | 1 | 3 | | Cleveland | | 27.45 @ 3 |
  | bscsource.com | C54539 | 28.49 | 1 | 3 | | Cleveland | | 28.49 @ 3 |
  | sustainablesupply.com | C2975633 | 31.91 | 1 | 3 | | Cleveland | 0.17 | 31.91 @ 3 |
| AmazonTP | B07MGC523L | 32.45 | 1 | 3 | 2 | CLEVELAND | | 32.45 @ 3 |
| AmazonUNK | B07MGC523L | 32.45 | 1 | 3 | | CLEVELAND | | 32.45 @ 3 |
| grainger.ca | GNFC54539 | 44.29594018 | 1 | 3 | | CLEVELAND | 5.3 | 44.29594018 @ 3 |
  | National Supply Network | 45729357 | 52.77 | 1 | 3 | | Cleveland | | 52.77 @ 3 |
