Dayton 4Z520

mpn4Z520
brandname: Dayton
manufacturername: Dayton

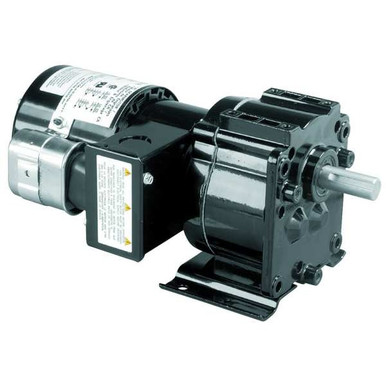

AC Gearmotor, 45 RPM, TEFC, 115/230V

Brand: Dayton
PartNumber: 4Z520
Model: 4Z520
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dayton
Label: Dayton

Attributes

Key	Value
Ambient (C)	40
Bearings	Heavy Duty Needle Rolle.
Brake	5X400
Brand	Dayton
Capacitor Required	Included
Current Stock	197
Enclosure	TEFC
Full Load Amps	1.2/0.63
Full Load Torque (In.-L.	92.0
Gear Case	Die Cast Aluminum
Gear Case Material	Die Cast Aluminum
Gear Material	Hardened Steel
Gear Ratio	35:1
Gear Type	Helical First Stage/Sub.
Gearmotor Brake Type	None
Gearmotor Enclosure	Totally Enclosed Fan-Co.
Gearmotor Mounting Posi.	All Angle
Gearmotor Phase	1
Gearmotor Rotation	CW/CCW
Gearmotor Shaft Orienta.	Parallel
Gearmotor Shaft Type	Single
Gearmotor Type	AC Gearmotor
Gearmotor Voltage	115/230V AC, 115/230 V .
Gears	Hardened Steel, 1st Sta.
Housing	Die Cast Aluminum
Hz	50/60, 60/50
Input HP	1/15
International Shipping	No
Item	AC Gearmotor
Keyway Depth	1/8 in
Keyway Width	3/16 in
Lead Time	Expected to ship in 1-2.
Length Less Shaft	8-3/4", 8 3/4 in
Length Less Shaft (In.)	8-3/4
Lubrication	Permanent Heavy Duty Ge.
Max. Ambient Temp.	40 Degrees C
Max. Torque	92 in.- lbs.
Motor Type	PSC, Permanent Split Ca.
Mount Hole Center-to-Ce.	1.5 in
Mount Hole Center-to-Ce.	4 in
Mounting	All Position
Mpn	4Z520
Nameplate RPM	45 RPM, 45
Number of Brake Discs R.	1
Output Shaft Diameter	5/8 in
Output Shaft Height	3.5 in
Output Shaft Length	1 1/2 in
Overall Height	5.13 in
Overall Width	5.5 in
Overhung Load	175 lbs.
Overhung Load (Lb.)	175
Phase	1
Rotation	Rev.
Seals	Lip Type on Input and O.
Shaft Dia. (Dimension U)	5/8 in, 5/8"
Shaft Dimensions (In.)	5/8 x 1 1/2
Shaft Length (Dimension.	1.5"
Shaft Orientation	Parallel
Ship Weight	13 lbs.
SKU	ZO-G3438093
Standards	UL Recognized, C-UL Rec.
SubCategory	Power Transmission
Thermal Protection	None
Type	Parallel Shaft
UPC	190735340776
Voltage	115/230
Voltage Rating	115/230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G3438093	441.99	1	450	Dayton	12.05	441.99 @ 5
sustainablesupply.com	C2674867	479.69	1	5	Dayton	12.05	479.69 @ 5
emotorpro.com	4Z520	523.74	1	5	Dayton	13.0	523.74 @ 5
simsupply.com	ZO-G3438093	529.05	1	197	Dayton		529.05 @ 5
grainger.ca	DTN4Z520	543.21498458	1	5	DAYTON	12.05	543.21498458 @ 5
Raptor Supplies	AE2QXP	726.612705	1	5	DAYTON		726.612705 @ 5
