Extech PQ2071

B00XRVGU4E

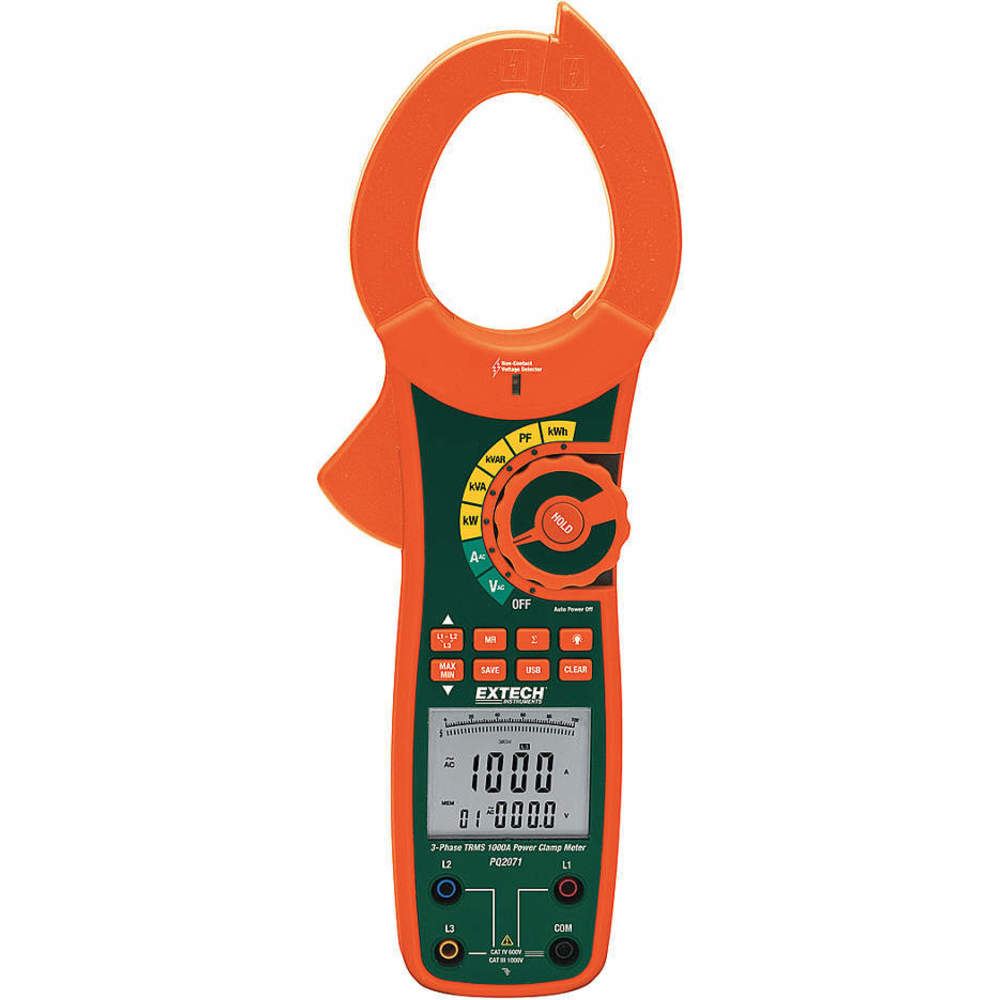

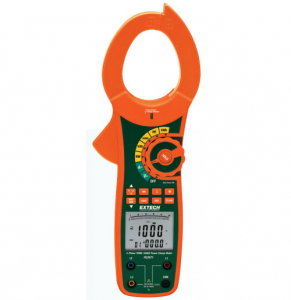

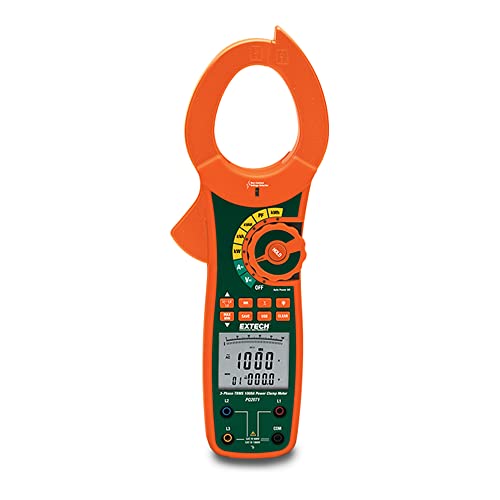

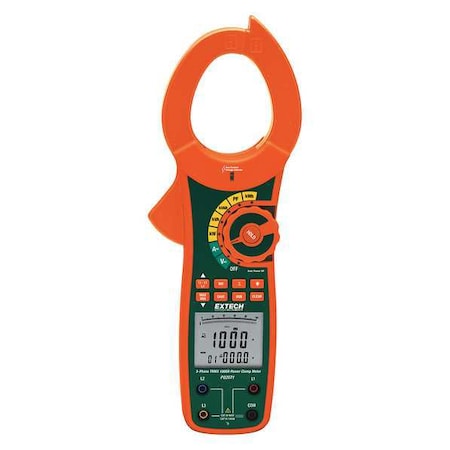

Extech Instruments PQ2071 True RMS AC Power Clamp Meter, 1000 Amp, 1-/3 Phase

Extech Instruments PQ2071 True RMS AC Power Clamp Meter, 1000 Amp, 1-/3 Phasezoom

Attributes

Key Value
AC Current Measurement .100 mA
AC Current: (Trms)1000A
AC Voltage Measurement .0.1 V
AC Voltage: (Trms)750V
Active Power (kWh)9999kWh
Amps1 kA
Apparent Power(kVA)750kVA
ASINB00M9AX9K2
Auto RangingNo
BacklightYes
Basic AC Current Accura.+/-2.00%
Basic AC Voltage Accura.+/-1.20%
Batteries IncludedYes
Batteries Included?Yes
Batteries Required?Yes
Battery Size9V
Battery Voltage750V
BrandExtech
Calibration Certificate.No
Calibration Frequency50/60 Hz, 50/60Hz
ConditionNew
Continuity W/ Diode TestYes
Country of Origin (subj.Taiwan, Province of Chi.
Counts9,999
Current Accuracy+/-2%
Data LoggingYes, Manually Store/Rec.
DisplayBacklit LCD
Display TypeLCD
Family SeriesExtech Instruments Mult.
Features Filter_Backgro.PQ2071
Frequency50Hz to 200Hz
Frequency Measurement R.1 Hz
Gross Weight2 lbs

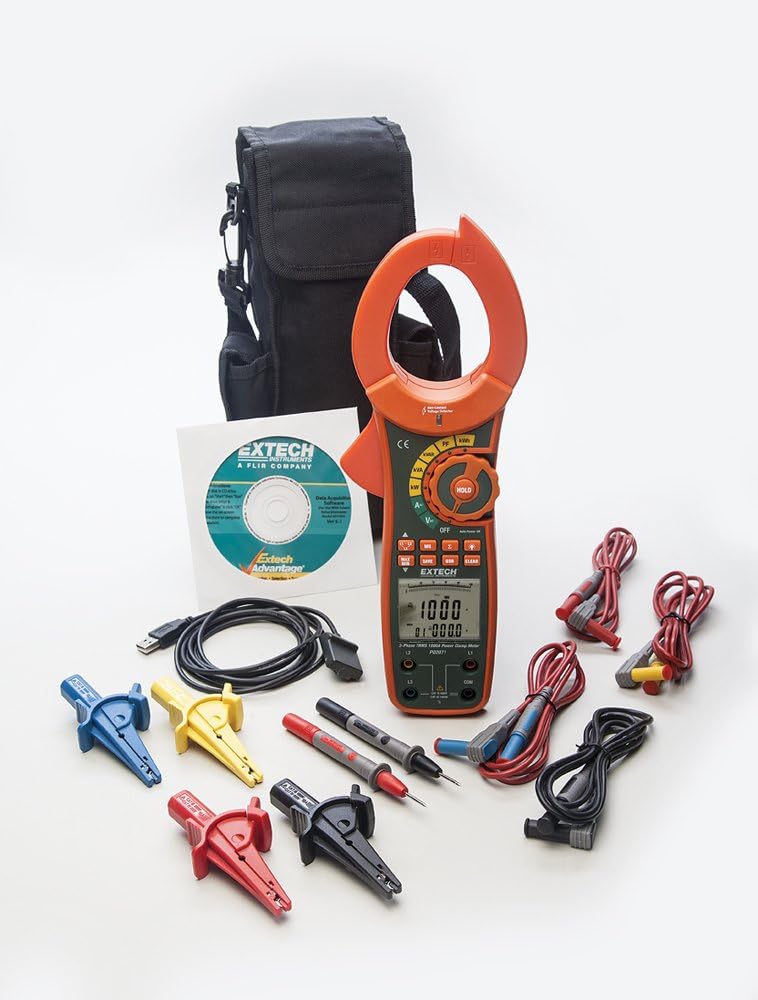

Includes(4) Color-Coded Leads a.
International ShippingNo
ItemPower Clamp Meter, Clam.
Item model numberPQ2071
Item NumberPQ2071
Item Package Quantity1
Jaw Opening2.16 in, 55 mm
ManufacturerExtech, Extech Instrume.
Manufacturer Part NumberPQ2071
Manufacturers Warranty .1 yr., 1 yr
MaterialABS
Max Current (AC)1,000 A
Max Voltage (AC)1,000 VAC
Max. AC Amps1,000
Max. AC Volts750
Max. VA750 kVA
Max. Watts750 kW
Maximum AC Current Meas.1,000 A
Maximum AC Voltage Meas.750 V
Maximum Frequency Measu.200 Hz
Maximum Operating Tempe.104 Degrees F
Maximum Power750 kW
Maximum Storage Tempera.140 Degrees F
Maximum Wattage750 kW
Minimum AC Current Meas.0 A
Minimum AC Voltage Meas.0.1 V
Minimum Frequency Measu.50 Hz
Minimum Operating Tempe.41 Degrees F
Minimum Storage Tempera.-4 Degrees F
Mirrored ScaleNo
MpnPQ2071
National Stock NumberPQ2071
Net Weight0 lbs
NIST CertifiedNo
Number Of Pieces1
Operating Temp. Range41 Degrees to 104 Degr.
Overall Height11.5 in
Overall Width3.8 in
Parameters MeasuredAC Current, AC Voltage
Part NumberPQ2071
Phase-180 to +180
Phase Angle (?)-180 to 180?
Power Accuracy+/-3%
Power Factor0.30 - 1.00, 0.3 to 1
Power Measurement Accur.+/-3.00%
Power Source9V battery
Promotion RestrictionNot eligible for promot.
Reactive Power (kVAR)750kVAR
Safety RatingCAT IV 600V, CAT IV 600.
Safety Rating_BackgroundPQ2071 ; CAT IV 600V
SKUZO-G6069926
Special FeaturesBuilt-In NCV Detector, .
StandardsCE
SubCategoryTest Instruments
Temperature ReadingsNo
True Power (W)750kW
True RMSYes
TypeCurrent Clamp
UPC793950220719
UPC Code793950220719
Voltage Accuracy+/-1.2%
Volts750 V
Wattage Measurement Acc.+/-3.00%

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomCole-Parmer2004754280.491In StockExtech280.49 @ 1
thumbzoomAmazonB00M9AX9K2299.991In StockExtech2.73299.99 @ 1
Home Depot205557004299.991In StockExtech Instruments299.99 @ 1
thumbzoomvaluetronics.comEXTECH_PQ2071_NEW308.71In StockExtech308.7 @ 1
Onlinecomponents.comPQ2071329.9911Extech Instruments329.99 @ 1
Grainger30JZ50341.01380EXTECH341.0 @ 1
globaltestsupply.comPQ2071346.491In StockExtech Instruments346.49 @ 1
thumbzoomZoroG6069926346.49114Extech2.55346.49 @ 1
Platt.com1298214346.491In StockExtech346.49 @ 1
us.rs-online.com70556175346.51In StockFLIR Commercial Systems, Inc. - Extech Division346.5 @ 1
thumbzoomvaluetesters.comQVT-2014020675774055871350.891In StockExtech350.89 @ 1
thumbzoomNewark47X3276350.891In StockEXTECH INSTRUMENTS350.89 @ 1
thumbzoomMegadepotPQ2071350.891In StockExtech350.89 @ 1
thumbzoomjensentools.com43582.1350.891In StockExtech350.89 @ 1
thumbzoomusmegastore.comPQ2071350.891In StockExtech350.89 @ 1
thumbzoomGalcoPQ2071-EXTC368.171In StockExtech Instruments2.0368.17 @ 1
thumbzoomopticsforyou.comEXT-TL-3PPQCMM-PQ2071369.991In StockExtech Instruments369.99 @ 1
grainger.caEXTPQ2071381.244117621In StockEXTECH2.77381.24411762 @ 1
thumbzoomsimsupply.comZO-G6069926402.021In StockExtech402.02 @ 1
thumbzoomsustainablesupply.comC1755335449.971In StockExtech2.55449.97 @ 1
thumbzoomRaptor SuppliesAF9NRC581.03317351In StockEXTECH581.0331735 @ 1
