Honeywell Ademco BA-2RV2-A2

B092HQ356L

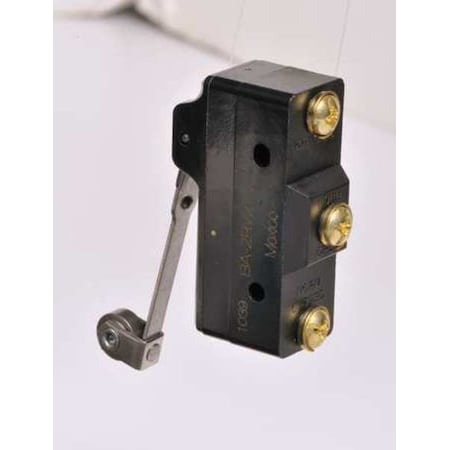

Large Basic Snap Action Switch Roller Lever SPDT 20A 125VAC

Large Basic Snap Action Switch Roller Lever SPDT 20A 125VACzoom

Attributes

Key Value
AC Contact Rating - Sna.20 A @ 480 V
ActuatorRoller Lever
Actuator Length1.90"
Actuator TypeRoller Lever, Lever, Ro.
Actuator Type - Snap Ac.Lever, Roller
Alternate Part No.785-BA-2RV2-A2
Base Product NumberBA-2
BrandHoneywell Micro Switch,.
Casing MaterialHigh Grade Phenolic
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating20 A
Current Rating (Amps)20A (AC), 500mA (DC)
Current Stock97
DC Contact Rating - Sna.20 A @ 230 V
Depth0.069"
Depth - Snap Action Swi.0.07 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.085 in, 0.085" (2.16m.
Digi-Key Part Number480-2449-ND
Electrical Connection -.Screw
Electrical Life-
Family NameBZ Series Family
Features-
Height0.95"
Height - Snap Action Sw.0.95 in
Housing MaterialPhenolic
Ingress Protection-
International ShippingNo
ItemIndustrial Snap Action .
Lead TimeExpected to ship in 1-2.
Length1.94"
Lever Actuator Length -.1.9 in
ManufacturerHoneywell, Honeywell Se.
Manufacturer Part No.BA-2RV2-A2
Manufacturer Product Nu.BA-2RV2-A2
Manufacturer Standard L.38 Weeks
Mechanical Life20,000,000 Cycles
MfrHoneywell Sensing and P.
MountingPanel
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting Hole Size0.14 in
Mounting TypeMounting holes will acc.
MpnBA-2RV2-A2
Operating Force3.5 oz, 3.50 Oz., 0.5 N.
Operating Position1.188" (30.2mm)
Operating Temperature-55?C ~ 85?C
Over Travel0.06 in
Overtravel0.060" (1.5mm)
PackageBulk
Pretravel0.470" (11.9mm)
Product CategoryBasic / Snap Action Swi.
Product StatusActive
Release Force15gf
SeriesBA Series, BA
SKUZO-G0358994
StandardsCE Marked, CSA Certified
SubCategoryElectrical
Switch FunctionON - (OFF), OFF - (ON),.
Temperature Rating-32 to +71 C
TerminationScrew
Termination StyleScrew, Screw Terminal
TypeLarge, Basic
Voltage Rating125/250/480VAC, 125 V
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Voltage Rating AC250 V
Voltage Rating DC250 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.94 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comBA-2RV2-A212.013112Honeywell12.01 @ 3
thumbzoomCarlton Bates Company7845491271518.111In StockHONEYWELL18.11 @ 1
thumbzoomsustainablesupply.comC121012421.691In StockHoneywell0.121.69 @ 1
thumbzoomDigi-Key124860022.14465200In StockHoneywell Sensing and Productivity Solutions22.14465 @ 200
alliedcontrols.comBA-2RV2-A223.851In StockHoneywell23.85 @ 1
thumbzoomNewark23F400423.941167HONEYWELL23.94 @ 1
thumbzoomZoroG035899423.951174Honeywell Micro Switch0.123.95 @ 1
RS Delivers820-745423.9881272Honeywell23.988 @ 1
thumbzoomTMEBA-2RV2-A226.8813HONEYWELL26.88 @ 1
AmazonTPB00KSLPOBQ27.951In Stock2Honeywell Sensing and Control27.95 @ 1
thumbzoomswatee.comBA-2RV2-A231.62111Honeywell31.62 @ 1
thumbzoommidwestapplianceparts.comBA-2RV2-A2-HM-P32.0411Honeywell32.04 @ 1
thumbzoomsimsupply.comZO-G035899434.55197Honeywell Micro Switch34.55 @ 1
thumbzoomRadwellBA-2RV2-A236.0125HONEYWELL MICROSWITCH36.0 @ 1
thumbzoomRaptor SuppliesAE8LMN58.0575061In StockHONEYWELL58.057506 @ 1
us.rs-online.com7012012069.411In StockHoneywell69.41 @ 1
standardelectricsupply.com22390444644.01In StockHoneywell4644.0 @ 1
thumbzoomkempstoncontrols.co.ukBA-2RV2-A25913.01621In StockHoneywell5913.0162 @ 1
