Jet 321860

mpn321860
brandname: JET
manufacturername: JET

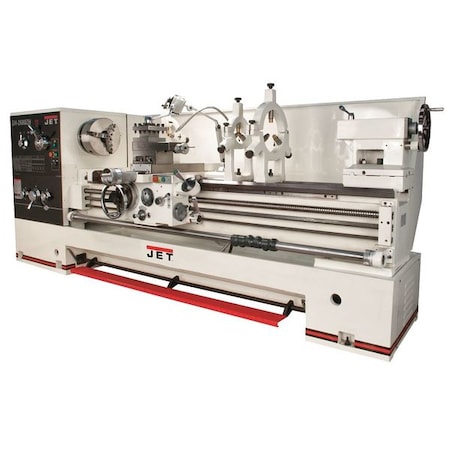

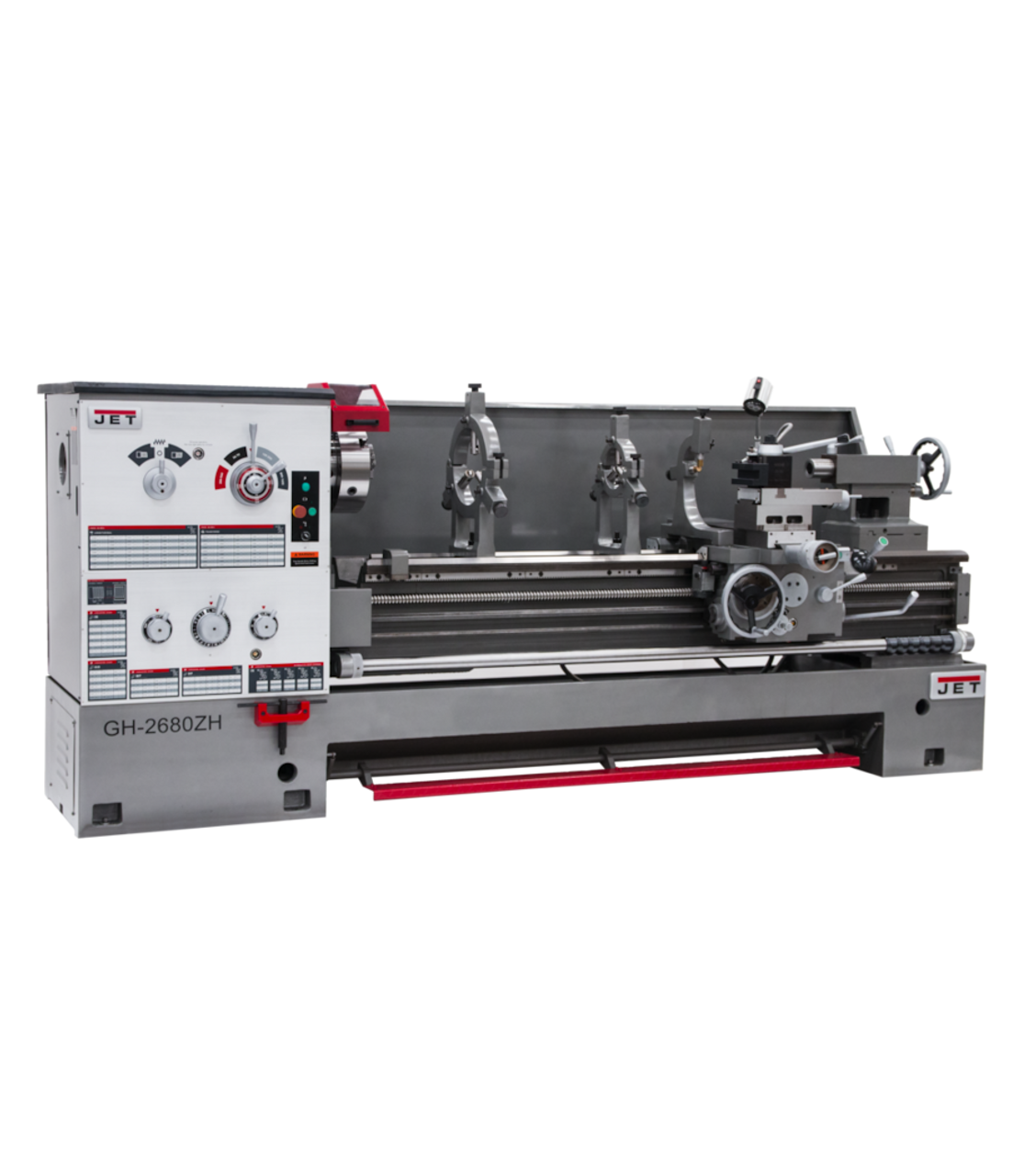

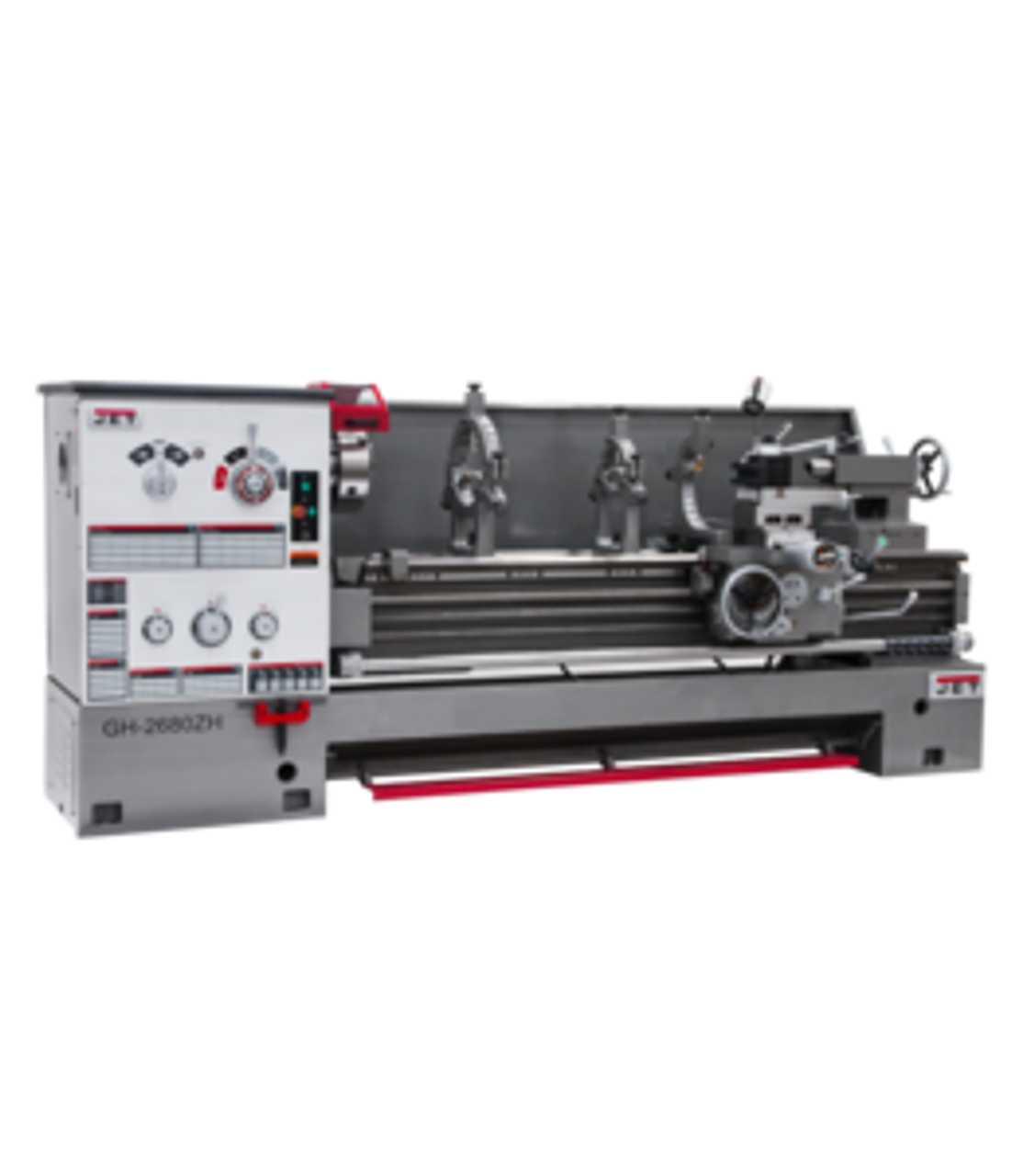

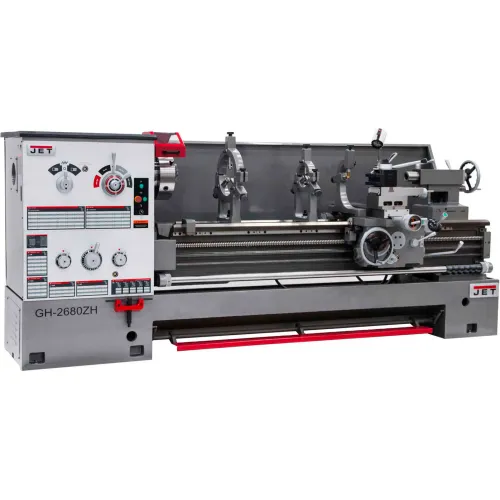

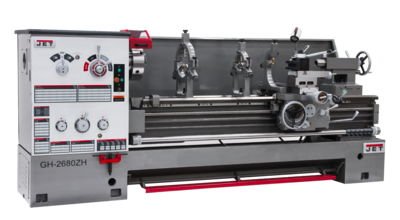

Jet GH-2680ZH, 4-1/8 Spindle Bore Geared Head Lathe (321860)

Jet GH-2680ZH, 4-1/8 Spindle Bore Geared Head Lathe (321860)

zoom

Brand: Jet
PartNumber: 321860
PackageQuantity: 1
Manufacturer: Jet
Label: Jet

Attributes

Key	Value
Bed Width	9 1/2 in
Carriage Travel (In.)	72-1/2, 72-1/2 </td
Compound Slide Travel (.	5-1/2 </td
Compound Travel (In.)	5-1/2
Cross Feed Rates	65
Cross Slide Travel (In.)	12-3/32 </td
Cross Travel (In.)	12-3/32
Distance Between Center.	80 </td
Drive	Geared Head </td
Features	4-1/8 in Spindle BORECL.
Follow Rest Capacity (I.	25/32 - 3-15/16 </td
Gap Length	8 in
Gap Length (In.)	8
Item	Lathe
Length of Gap (In.)	8 </td
Longitudinal Feed Rates	65
Max Tool Size (In.)	1-1/4 x 1-1/4 </td
Motor (HP)	10 HP, 230/460, 3 Ph .
Motor HP	10
Number of Inch Threads	48 </td
Number of Longitudinal .	65 </td
Number of Metric Threads	22 </td
Number of Spindle Speeds	12 </td
Number of Threads (In.)	48
Overall Dimensions (L x.	138 x 43 x 57 </td
Overall Height	144 in
Overall Length	136 in
Overall Width	46 in
Phase	Three
Prewired (V.)	230 </td
Range of Cross Feeds (I.	.010 - .0404 </td
Range of Inch Threads (.	2-30 </td
Range of Longitudinal F.	.0023 - .0937 </td
Range of Metric Threads	1 - 14 </td
Range of Spindle Speeds.	36 - 1,600 </td
Size	26 x 80 </td
SKU	321860
Spindle Bore (In.)	4-1/8 </td, 4-1/8
Spindle Mount	D1-8 </td
Spindle Taper	MT-5
Spindle Taper with Slee.	MT-5 </td
Steady Rest Capacity (I.	Small 25/32 - 4-29/32, .
Style (Type)	Engine - Large Spindle .
Swing In Gap (In.)	34
Swing Over Bed (In.)	26 </td, 26
Swing Over Cross Slide .	16-1/2 </td, 16-1/2
Swing Through Gap (In.)	34 </td
Tailstock Spindle Trave.	6 </td
Tailstock Travel (In.)	6
Taper in Tailstock Spin.	MT-5 </td
Thread Range (mm)	1 to 14
Voltage	230V AC
Weight (Lbs.)	8,514 </td
Width of Bed (In.)	16 </td

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonSC	B0064BFJ3W	35199.0	1	In Stock		Jet		35199.0 @ 1
	internationaltool.com	JET-321860	42019.0	1	In Stock		Jet		42019.0 @ 1
	Radwell	321860	44850.0	1	In Stock		JET		44850.0 @ 1
	Global Industrial	WBB1013522	45799.0	1	In Stock	24	JET		45799.0 @ 1
	beavertools.com	JT321860	45799.0	1	In Stock		Jet		45799.0 @ 1
	JB Tools	JB-DS-WLT-JT9-321860	45799.0	1	6		Jet		45799.0 @ 1
	elitemetaltools.com	2410	45799.0	1	In Stock		JET		45799.0 @ 1
	penntoolco.com	113339	45859.0	1	In Stock		Jet		45859.0 @ 1
	TylerTool	JETN321860	45859.0	1	In Stock		JET		45859.0 @ 1
	ToolUp.com	JET 321860	45859.0	1	In Stock		Jet		45859.0 @ 1
	AceTool	JET-321860	45859.0	1	In Stock		Jet	8514.0	45859.0 @ 1
	toolsplus.com	JET321860	45859.0	1	In Stock		JET		45859.0 @ 1
	imsbolt.com	321860	45859.0	1	In Stock		JET		45859.0 @ 1
	Zoro	G9879362	46349.0	1	In Stock		Jet	8590.0	46349.0 @ 1
