Meltric 37-24073-845

B08FBNT3L5

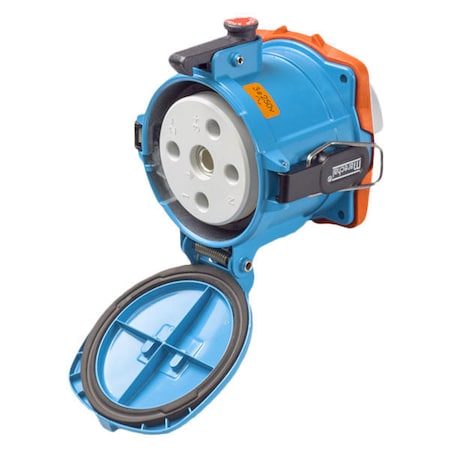

Meltric Pin and Sleeve Receptacles, Ds200 Series Item# 37-24073-845 - Ds200 Receptacle

Meltric Pin and Sleeve Receptacles, Ds200 Series Item# 37-24073-845 - Ds200 Receptaclezoom

Attributes

Key Value
Amps - Plugs and Recept.200 A
ApprovalscCSAus, UL
Aux/Pilot ContactsNone
Body Material - Pin and.Zamak
Case MaterialMetallic
Color - Plugs and Recep.Blue
Color CodeOrange
Connection TypeReceptacle
Contact Configuration3P+G
Current Rating200 A
Family SeriesMeltric Plugs & Recepta.
Frequency60 Hz
Gross Weight3.77 lbs
HP40
Impact RatingIK09
IP RatingIP55
Item Number37-24073-845
Keying Position7
Load Break Amp Rating200A
ManufacturerMeltric
Manufacturer Part Number37-24073-845
NEMA Rating3R
Net Weight3.77 lbs
Number of Aux. OutputsNO AUX
Number of Notch Positio.12
Operating Temp. Range-40C to 60C
Product SeriesDS200
Short Circuit Current R.10 KA - MAKE & WITHSTAND
StandardscCSAus, 155873, C22.2 N.
Temperature Range (F)-40-140 ?F
Terminal TypeScrew, Screw terminal
Tightening TorquePhase: 110 IN-LBS / 12..
Use WithMating Box MB20
Use With Installation A.6
Voltage250V AC, 250 V
Voltage Color CodeOrange
Wire Size4 AWG to 4/0 AWG, 4 AWG.
Wire Size Range4/0-4 AWG
Wire Strip LengthPhase: 1-1/2 in (38 mm)
Wire Temperature Rating60 Degrees C

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Switches Unlimited37-24073-845944.291In StockMeltric944.29 @ 1
gordonelectricsupply.com37-24073-8451615.01In Stock80MELTRIC1615.0 @ 1
thumbzoomZoroG6017582461672.991In StockMeltric1672.99 @ 1
thumbzoomGalco37-24073-845-MELC1676.21In StockMeltric3.771676.2 @ 1
Platt.com19145851728.231In StockMeltric1728.23 @ 1
thumbzoomWalker Industrial37-24073-8451878.511In Stock17Meltric1878.51 @ 1
us.rs-online.com742597382442.061In StockMeltric2442.06 @ 1
