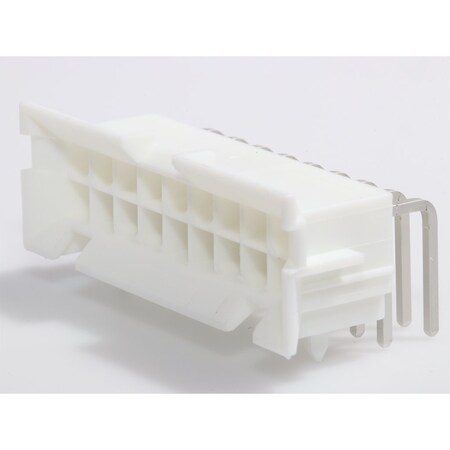

15-24-9184, Conn Power HDR 18 POS 4.2mm Solder RA Thru-Hole 18 Terminal 1 Port Mini-Fit BMI Tray (25 Items)
- Brand: Molex / Waldom
- PartNumber: 15-24-9184
- Model: 75784-0338
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Applications | General Purpose, Indust. |
| Base Product Number | 001524 |
| Category | Connectors, Interconnec. |
| Color | Natural |
| Connector Type | Header, Male Pin |
| Contact Finish | Tin Plated |
| Contact Finish - Mating | Tin, 100.0?in (2.54?m) |
| Contact Finish - Post | Brass, Tin |
| Contact Finish Thicknes. | Tin, 100.0?in (2.54?m) |
| Contact Finish Thicknes. | 100.0?in (2.54?m), Gene. |
| Contact Length - Mating | 0.130" (3.30mm), - |
| Contact Length - Post | 0.130" (3.30mm), - |
| Contact Material | Brass, Polyamide (PA66). |
| Contact Plating Thickne. | 2.54 ?m |
| Contact Shape | Tin, Square |
| Contact Type | Male Pin, 0.165" (4.20m. |
| Current Rating | 13 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER R/A 18POS 4. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM17727-ND |
| Fastening Type | Latch Holder, - |
| Features | Blind Mating, Board Loc. |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 4.2 mm |
| Ingress Protection | UL94 V-0, - |
| Insulation Color | Natural, - |
| Insulation Height | 0.591" (15.00mm), Square |
| Insulation Material | Polyamide (PA66), Nylon. |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 0015249184 |
| Manufacturer Standard L. | 14 Weeks |
| Mated Stacking Heights | -, 100.0?in (2.54?m) |
| Material | Nylon |
| Material Flammability R. | UL94 V-0, Natural |
| Max. Temp. | 240?C |
| Max. Voltage | 600V |
| Mfr | Molex |
| Mounting Type | Solder, Through Hole, R. |
| Number of Contacts | 18 |
| Number of Positions | 18, 2 |
| Number of Positions Loa. | All, Board to Board or . |
| Number of Rows | 2, 0.165" (4.20mm) |
| Operating Temperature | - |
| Overall Contact Length | 0.591" (15.00mm), - |
| Package | Active, Tray |
| Package Quantity | 1 |
| Part Status | Header |
| Pitch - Mating | 18, 0.165" (4.20mm) |
| Product Status | Active |
| Row Spacing - Mating | All, 0.165" (4.20mm) |
| Series | Mini-Fit BMI 42404, Tray |
| Shrouding | Shrouded - 4 Wall, Thro. |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Board or Cable. |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole |
| Termination | Latch Holder, Solder |
| Voltage Rating | - |
