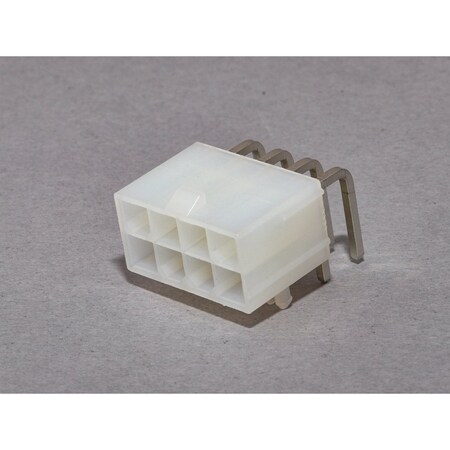

39-30-1080, Conn Power HDR 8 POS 4.2mm Solder RA Thru-Hole 8 Terminal 1 Port Mini-Fit Jr Bag (50 Items)
- Brand: Molex / Waldom
- PartNumber: 39-30-1080
- Model: 39-30-1080
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Agency Approvals | CSA ; UL ; TUV |
| Alternate Mfr Part Numb. | 5569-08A2 |
| Angle | Right Angle |
| Applications | General Purpose, Indust. |
| Category | Connectors, Interconnec. |
| Color | Natural |
| Connector Type | Header, Male Pin |
| Contact Finish | Matte Tin Plated |
| Contact Finish - Mating | Tin, 100.0?in (2.54?m) |
| Contact Finish - Post | Brass, Tin |
| Contact Finish Thicknes. | Tin, 100.0 |
| Contact Finish Thicknes. | 100.0, General Purpose,. |
| Contact Length - Mating | 0.142" (3.60mm) |
| Contact Length - Post | 0.142" (3.60mm), - |
| Contact Material | Brass, Polyamide (PA66). |
| Contact Plating | Tin |
| Contact Plating Thickne. | 2.54 ?m |
| Contact Shape | Tin, Square |
| Contact Type | Male Pin, 0.165" (4.20m. |
| Current Rating | 13 A |
| Current Rating (Amps) | - |
| Family Name | Mini-Fit Jr. |
| Fastening Type | -, Locking Ramp |
| Features | -, Board Lock |
| Flammability Rating | UL 94V-2 |
| Hole Center to Center | 4.2 mm |
| Housing Material | Nylon |
| Ingress Protection | UL94 V-2 |
| Insulation Color | Natural, - |
| Insulation Height | Square, 0.378" (9.60mm) |
| Insulation Material | Polyamide (PA66), Nylon. |
| Lead Free Status / RoHS. | RoHS Compliant |
| Manufacturer Part Number | 0039301080 |
| Manufacturer Standard L. | 6 Weeks |
| Mated Stacking Heights | 100.0?in (2.54?m) |
| Material | Nylon |
| Material Flammability R. | UL94 V-2, Natural |
| Max. Temp. | 240?C |
| Max. Voltage | 600V AC/DC |
| Mfr | Molex |
| Mounting Type | Solder, Through Hole, R. |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Positions | 8, 2 |
| Number of Positions Loa. | All, Board to Cable/Wire |
| Number of Rows | 2, 0.165" (4.20mm) |
| Operating Temperature | -40 to +105 ?C, - |
| Orientation | Right Angle |
| Overall Contact Length | 0.378" (9.60mm) |
| Overall Length | 0.71 " |
| Package | Active |
| Package Quantity | 1 |
| Packaging | Bulk Pack |
| Part Status | Header |
| Pin Length | 0.14 " |
| Pin Spacing | 0.165 in |
| Pitch | 4.20 mm (0.165") |
| Pitch - Mating | 8, 0.165" (4.20mm) |
| Plating Material | Matte Tin |
| Primary Type | Soft Shell |
| Product Header | Wire-to-Board PCB Header |
| Row Spacing - Mating | All, 0.165" (4.20mm) |
| Series | Bulk, Mini-Fit Jr 5569,. |
| Shrouding | Shrouded - 4 Wall, Thro. |
| Special Features | Low-Halogen |
| Standard Package | 1,800 |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Cable/Wire, Sh. |
| Terminal Finish | Matte Tin Plated |
| Terminal Type | Through Hole |
| Termination | Solder, Through Hole, L. |
| Type | Right Angle Header |
| Voltage Rating | -, 600 V |
