Panduit LCA2/0-12-X

B00B5NDP6C

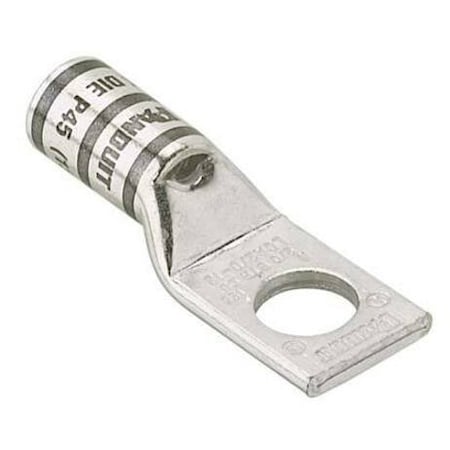

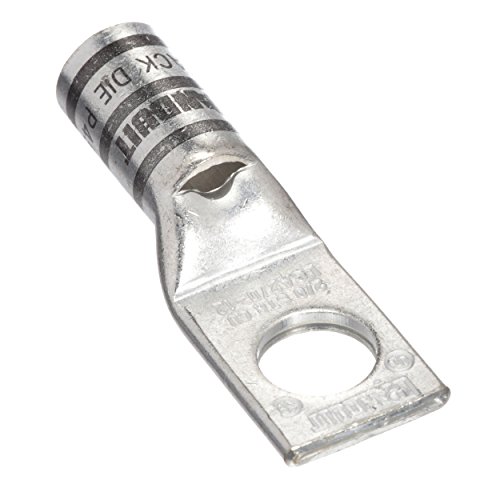

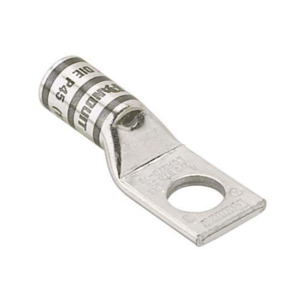

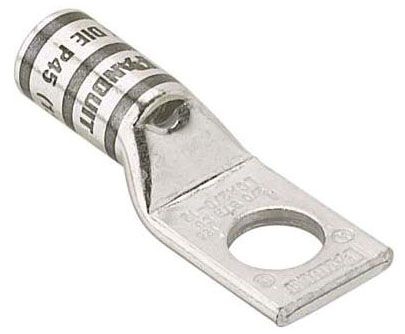

Panduit LCA2/0-12-X Code Conductor Lug, One-Hole, Standard Barrel with Window, 2/0 AWG Copper Conductor Size, 1/2" Stud Hole

Panduit LCA2/0-12-X Code Conductor Lug, One-Hole, Standard Barrel with Window, 2/0 AWG Copper Conductor Size, 1/2" Stud Holezoom

Attributes

Key Value
accessory typePanduit??
Allowable Gauge Range2/0
ApplicationPanduit???
ApprovalsCSA, UL
ARRA CompliantY
Barrel Length (In.)0.98
Barrel Length (mm)24.9
Barrel TypeStandard Barrel with In.
Base MaterialCopper
BrandPANDUIT, Pan-Lug?
Burndy Die Index Number13
Buy American CompliantY
Cable Size2/0 AWG
California Pro65 CancerNo
Carton1
Catalog NumberLCA2/0-12-X
CategoryConnectors, Interconnec.
Category DescriptionComp & Mech Lugs and Bu.
ClassificationComp & Mech Lugs and Bu.
ColorBlack
Color CodeBlack
Color FamilyBlack
Conductor MaterialCopper
Connection MaterialTin
Connection Type1 x Terminal
Connector TypeStandard Barrel
Contact FinishElectro-Tin
Contact MaterialCopper
Copper Code Conductor S.2/0
Country of OriginMX - Mexico, Mexico
Country of Origin (subj.Mexico
Country of Origin 2DigitMX
Description2/0AWG 1HOLE Lug
Diameter - Barrel ID0.450"" (11.43mm)
Diameter - Barrel OD0.580"" (14.73mm)
Diameter - Ring ID0.530"" (13.46mm)
Die ColorBlack
EAN00074983900312
ECCNEAR99
extra long descriptionPAN LCA2/0-12-X Pan-Lug.
Family SeriesPanduit Terminals, Pan-.
Features-
FinishTin-Plated
Finish/CoatingTin-Plated
For Stud Size1/2 in
for use withStranded Copper Conduct.
Gross Weight0.85 lbs
GTIN00074983900312
GTIN Package00074983900312
Hazardous Material FlagN
Inside Diameter (In.)0.45
Inside Diameter (mm)11.43
Insulated/Non-InsulatedNon-Insulated
InsulationNon-Insulated
Insulation ColorBlack (Code)
ItemLug Compression Connect.
Item NumberLCA2/0-12-X
Item TypeCopper Compression Conn.
Lead Content IndicatorN
Length2.4"
Length - Overall2.390"" (60.71mm)
Long DescriptionStandard Barrel Lug, #2.
Lug Type1 Stud Hole Lug
Lug Wire Size2/0 AWG
Made in USANo
ManufacturerPANDUIT
Manufacturer Part NumberLCA2/0-12-X
Manufacturers Part Numb.LCA2012X
MaterialCopper, Pan-Steel??, Ti.
Material/CompositionCopper
Max Conductor Range2/0 AWG
Maximum Conductor Size#2/0 AWG
Maximum Operating Tempe.+90 ?C
Maximum Voltage (kV)35
Maximum Voltage Rating35 kV
mediaYes
Mercury Content Indicat.No
MfrPanduit Corp
Min Conductor Range2/0 AWG
Min Order Qty40
Min. Order UOMPiece
Mounting1-1/16, 1-Hole, 42370
Mounting TypeFree Hanging (In-Line)
Net Weight0.07 lbs
Number of Conductors1
Number of Holes1
Outer Diameter0.58 in.
Outer Diameter (In.)0.58
Outer Diameter (mm)14.73
Overall Length2.39 in
Overall Length (In.)2.39
Overall Length (mm)60.7
PackageBulk, 40
package quantity10 PK
Pallet Quantity0
Pallet Volume0.000000
Pallet Weight0.0000
Panduit Die Index NumberP45
Part StatusActive
Product SegmentIEI
Product SeriesPan-Lug Compression
Product TypeCopper Compression Conn.
REACH StatusFalse
Restricted Use of Hazar.N
RoHS CompliantCompliant, Yes
SeriesPan-Lug?
Short DescriptionStandard Barrel Lug, No.
Size2/0 AWG Code
Special FeaturesTin-Plated to Inhibit C.
standardUL listed to 486A-486B .
StandardC22.2 No. 65-13, 486A-4.
Standard Carton Volume .0.0000
Standard Carton Weight .0.0000
Standard Package Volume.0.0184
Standard Package Weight.0.8500
Standards MetCSA Certified;UL Listed.
Std Ctn Qty0
Std Package Height In3.3
Std Package Height MM83.82
Std Package Length In5.85
Std Package Length MM148.59
Std Package Width In3.35
Std Package Width MM85.09
Std. Pkg. Qty.10
Std. Pkg. UOMPiece
Stud Hole Size (In.)1/2
Stud Hole Size (mm)12.7
Stud Size44563, 1/2, 1/2 in
Stud/Tab Size1/2 Stud
sub brandType LCA
Sub BrandPan-Lug, Pan-Lug?
T & B Die Index Number13
Tab Thickness0.130"" (3.30mm)
Terminal StyleSingle Stud Hole
Terminal TypeLug, Grounding
TerminationCrimp, Barrel
Tongue AngleStraight
Tongue Thickness (In.)0.13
Tongue Thickness (mm)3.3
Tongue TypeStandard
Tongue Width (In.)0.85
Tongue Width (mm)21.6
TypeTin-Plated Copper Compr.
UL Temperature Rating (.90
UNSPSC39121405 - Cable or wir.
UOM EA PKPK
UPC074983900312, 074983900.
Volts AC600
Weight1 lb/EA
Weight per each1
Width0.85"
Width - Outer Edges0.850"" (21.59mm)
Wire Gauge2/0 AWG
Wire Strip Length (In.)1-1/16
Wire Strip Length (mm)27

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomElliott ElectricLCA2012X4.0835110Panduit1.04.0835 @ 10
thumbzoomcbtcompany.comLCA2/0-12-X4.37110PANDUIT4.37 @ 10
thumbzoomFrench GerlemanPANDLCA2012X5.1140Panduit5.1 @ 10
Digi-Key17542836.42161Panduit Corp6.42 @ 10
thumbzoommayerelectric.comPANLCA2012X6.55110PANDUIT0.856.55 @ 10
thumbzoomalldataresource.comPAN-LCA2/0-126.83110Panduit6.83 @ 10
RadwellLCA2012X8.010010PANDUIT8.0 @ 100
thumbzoomNewark14AC21448.39110PANDUIT8.39 @ 10
HotendaH16509868.454110Panduit8.454 @ 10
Onlinecomponents.comLCA2/0-12-X8.64110PANDUIT8.64 @ 10
thumbzoomZoroG07714039.7511026Panduit0.859.75 @ 10
thumbzoomPlatt.com001776710.34110Panduit10.34 @ 10
thumbzoomGalcoLCA2/0-12-X-PNDT10.544010Panduit0.8510.54 @ 40
thumbzoomcrescentelectric.com45211.06110Panduit11.06 @ 10
Airline Hydraulics204347811.71110PANDUIT11.71 @ 10
us.rs-online.com7225984212.741010Panduit12.74 @ 10
thumbzoomCarlton Bates Company0749839003191.5110PANDUIT91.5 @ 10
thumbzoomjensentools.com10016326106.73110Panduit106.73 @ 10
thumbzoomgordonelectricsupply.comLCA2/0-12-X408.011012PANDUIT408.0 @ 10
steinerelectric.com7051490.37110Panduit490.37 @ 10
thumbzoomturtle.comPAN LCA2/0-12-X1144.5110Panduit1144.5 @ 10
Graybar881981351268.4896110Panduit1268.4896 @ 10
